| Pricing rules for MB1643 HRLV-ShortRange-EZ4 | |
| Quantity | Cost Per Product |
|---|---|
| 5 - 9 | $31.95 |
| 10 - 49 | $28.95 |
| 50 - 99 | $23.27 |
| 100 | $21.88 |
Features of the MB1643, HRLV-ShortRange-EZ4, include millimeter resolution, range information from 2cm to 5m, a 10Hz read rate, and various output options: pulse-width, analog voltage, and RS232.

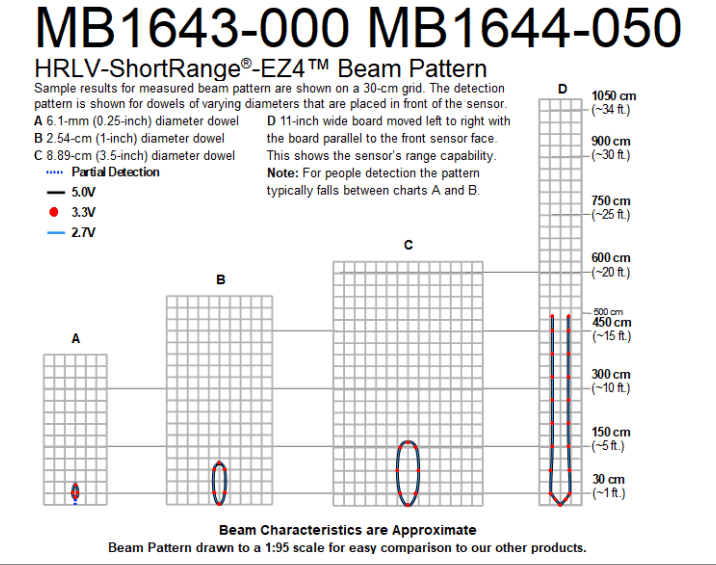

The HRLV-ShortRange-EZ4 is the narrowest beam width sensor which is also the least sensitive to side objects offered in the HRLV-ShortRange-EZ sensor line.
The HRLV-ShortRange-EZ4 is an excellent choice when only larger objects need to be detected.
| MB1643 Datasheet | HRLV-ShortRange-EZ-datasheet |
| HRLV Chaining | Chaining Application Guide |
| Quick Start Guide | HRLV-MaxSonar-EZ Quick Start Guide |
| Sensor Selection Guide | Sensor Selection Guide |
| RoHS Conformity | RoHS Declaration of Conformity |
| CE Declaration of Conformity | CE Declaration of Conformity |
| Reliability Demonstration | MTBF Report |
| High Resolution Pictures | High Resolution Pictures.zip |
| Key Shot | IGES File | ACIS 7.0 File | Solid Works Part |
| STL File | STEP File | ParaSolid Part |
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
| M | B | 1 | 6 | 4 | 3 | – | 0 | 0 | 0 | ||||||||||
| Base | |||||||||||||||||||
| Housing Style | |||||||||||||||||||
| 0 | Not Applicable | ||||||||||||||||||
| 1 | 3/4″ NPS WR | ||||||||||||||||||
| 2 | 3/4″ NPS WRC | ||||||||||||||||||
| 3 | Ultra Compact | ||||||||||||||||||
| 4 | Ultra Compact Flush Mount | ||||||||||||||||||
| 5 | 1″ NPS | ||||||||||||||||||
| 6 | 1″ BSPP | ||||||||||||||||||
| 7 | 30MM 1.5 | ||||||||||||||||||
| 8 | Extended Horn | ||||||||||||||||||
| Options Selected | |||||||||||||||||||
| 0 | No Options (Bagged) | ||||||||||||||||||
| 1 | F-Option | ||||||||||||||||||
| 2 | P-Option | ||||||||||||||||||
| 3 | F-Option and P-Option | ||||||||||||||||||
| 4 | No Options (Trayed) | ||||||||||||||||||
| 5 | TTL (Bagged) | ||||||||||||||||||
| 6 | TTL (Trayed) | ||||||||||||||||||
| Wire Attach | |||||||||||||||||||
| 0 | No Wire Attach | ||||||||||||||||||
| 1 | Wire Attached | ||||||||||||||||||
The following table displays all of the active and valid part numbers for this product.
| Active Part Numbers |
| MB1643-000 | MB1643-040 | MB1643-050 | MB1643-060 |
