MB79XX HR-MaxTemp
MB79XX HR-MaxTemp
SKU:MB7955
MB7955 HR‑MaxTemp PCB and Heat Shrink
MB7956 MaxTemp cable sold per foot i.e. 1 ft = qty 1 (Purchased with the MB7955)
MB7957 HR-MaxTemp PCB, heat Shrink, and 3 feet of cable

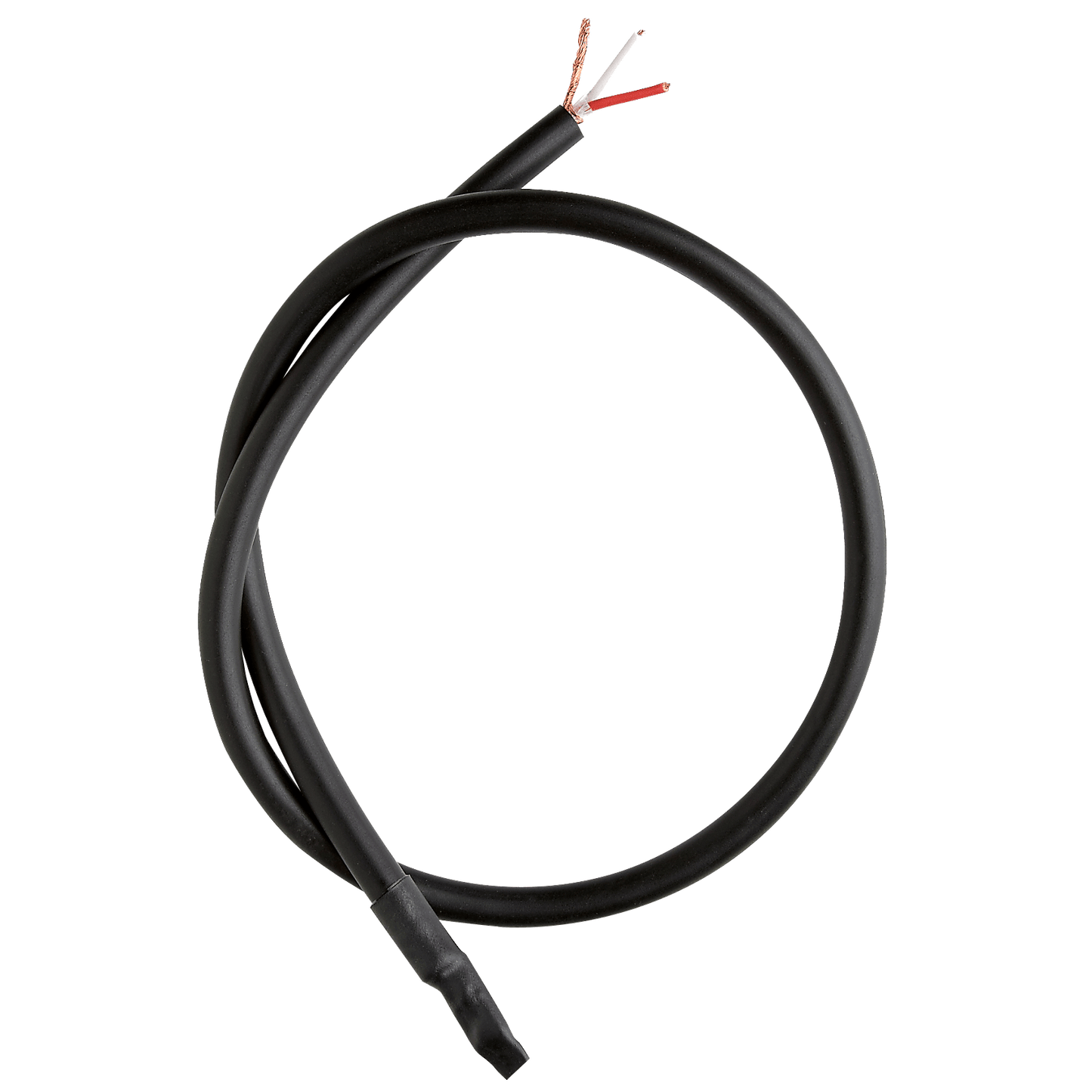

MB7958 Assembled HR‑MaxTemp with 3 feet of cable
MB7959 Assembled HR‑MaxTemp with 6 feet of cable
MB7972 Assembled HR‑MaxTemp with 20 feet of cable
The HR-MaxTemp is designed to be used alongside the HR-MaxSonar sensors. The HR-MaxSonar sensor upon power-up will automatically detect an attached temperature sensor and begin to apply temperature compensation for the speed of sound changes to all range outputs.
Couldn't load pickup availability
Collapsible content
Description
The HR-MaxTemp is an external temperature sensor designed for use with the high-resolution sensors produced by MaxBotix.
Specs
Documentation and CAD files
Documents
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB79XX HR-MaxTemp
PCN1200
The color of any exposed epoxy will be black or gray, rather than only gray.
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
MB7986 Voltage Regulator
View AccessoryThe voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.
