| Pricing rules for MB1614 HRLV-ShortRange-EZ1T | |
| Quantity | Cost Per Product |
|---|---|
| 5 - 9 | $31.95 |
| 10 - 49 | $28.95 |
| 50 - 99 | $23.27 |
| 100 | $21.88 |

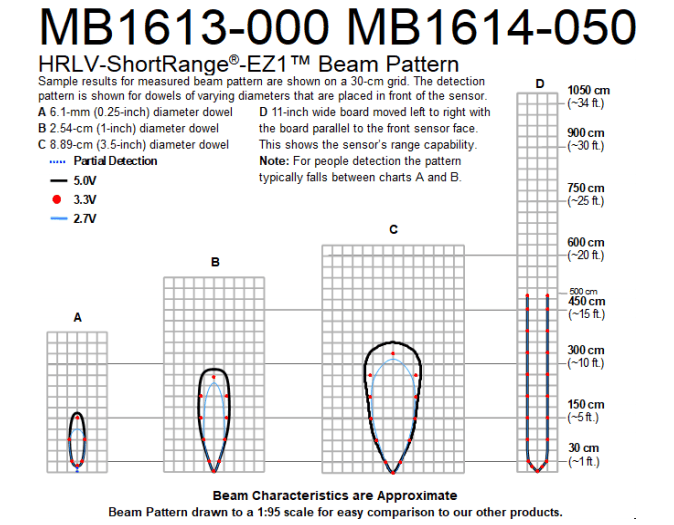

Features of the MB1614, HRLV-ShortRange-EZ1T, include millimeter resolution, a good balance between people detection and beam pattern width, range information from 2cm to 5m, a 10Hz read rate, and various output options: pulse-width, analog voltage, and TTL.
The HRLV-ShortRange-EZ1T is our most recommended HRLV-ShortRange-EZ Sensor for people detection, autonomous navigation and well balanced detection.
| MB1614 Datasheet | HRLV-ShortRange-EZ-datasheet |
| HRLV Chaining | Chaining Application Guide |
| Quick Start Guide | HRLV-MaxSonar-EZ Quick Start Guide |
| Sensor Selection Guide | Sensor Selection Guide |
| RoHS Conformity | RoHS Declaration of Conformity |
| CE Declaration of Conformity | CE Declaration of Conformity |
| Reliability Demonstration | MTBF Report |
| High Resolution Pictures | High Resolution Pictures.zip |
| Key Shot | IGES File | ACIS 7.0 File | Solid Works Part |
| STL File | STEP File | ParaSolid Part |
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
| M | B | 1 | 6 | 1 | 4 | – | 0 | 5 | 0 | ||||||||||
| Base | |||||||||||||||||||
| Housing Style | |||||||||||||||||||
| 0 | Not Applicable | ||||||||||||||||||
| 1 | 3/4″ NPS WR | ||||||||||||||||||
| 2 | 3/4″ NPS WRC | ||||||||||||||||||
| 3 | Ultra Compact | ||||||||||||||||||
| 4 | Ultra Compact Flush Mount | ||||||||||||||||||
| 5 | 1″ NPS | ||||||||||||||||||
| 6 | 1″ BSPP | ||||||||||||||||||
| 7 | 30MM 1.5 | ||||||||||||||||||
| 8 | Extended Horn | ||||||||||||||||||
| Options Selected | |||||||||||||||||||
| 0 | No Options (Bagged) | ||||||||||||||||||
| 1 | F-Option | ||||||||||||||||||
| 2 | P-Option | ||||||||||||||||||
| 3 | F-Option and P-Option | ||||||||||||||||||
| 4 | No Options (Trayed) | ||||||||||||||||||
| 5 | TTL (Bagged) | ||||||||||||||||||
| 6 | TTL (Trayed) | ||||||||||||||||||
| Wire Attach | |||||||||||||||||||
| 0 | No Wire Attach | ||||||||||||||||||
| 1 | Wire Attached | ||||||||||||||||||
The following table displays all of the active and valid part numbers for this product.
| Active Part Numbers |
| MB1614-000 | MB1614-040 | MB1614-050 | MB1614-060 |
