MB1424 USB-ProxSonar-EZ2

High Performance USB Proximity Detection Sensor

Product Description

Features of the MB1424, USB-ProxSonar-EZ2, include one-inch resolution, both proximity and range information for the nearest detectable target, and serial data over an easy to use USB interface.

The USB-ProxSonar‑EZ line is designed people or obstacles that enter within a calibrated detection zone. The USB-ProxSonar-EZ proximity sensors report when a person or other detectable target enters the detection zone. The target is released after leaving the USB-ProxSonar-EZ’s detection zone.

The MB1424 has a detection zone of ~1 feet. The MB1424 will allow for 10+ simultaneous sensors depending on sensor mounting and environment.

Product Specifications

  • USB interface
  • ~2.5 second target acquire time*
  • ~1.5 second target release time*
  • Automatic multi-sensor operation
  • People sensor
  • Resolution of 1 inch
  • Maximum Range of 125 inches (318 cm)

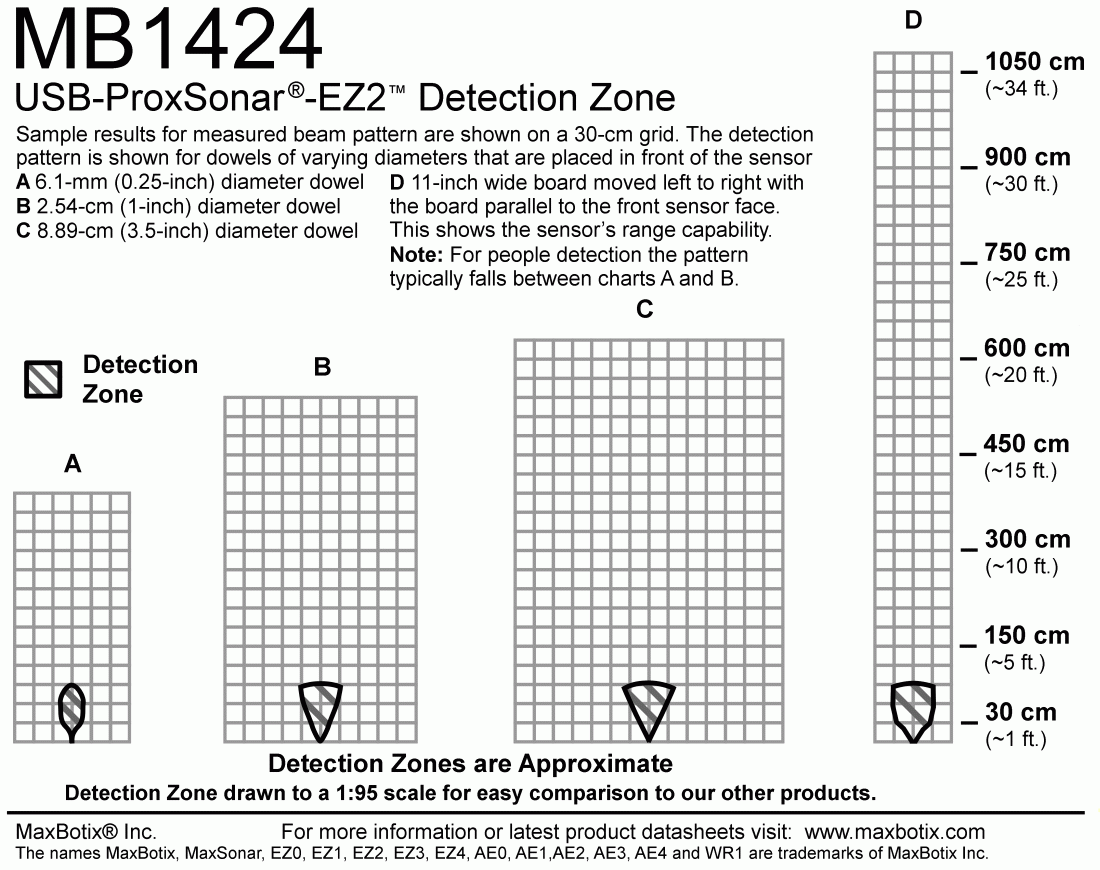

  • Detection zone range of 36 inches (91 cm)
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Good balance between long and short range detection zone
  • Quote Request Form: For orders greater than 100 sensors

Product Documentation

Documents and Downloads

MB1424 DatasheetUSB-ProxSonar-EZ2-datasheet
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip
Product 3D Models
These 3D model files will download with a different product name.
Key ShotIGES FileACIS 7.0
File
Solid Works Part
STL FileSTEP FileParaSolid
Part


Part Numbers

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

MB1424000
Base
Housing Style
0Not Applicable
13/4″ NPS WR
23/4″ NPS WRC
3Ultra Compact
4Ultra Compact Flush Mount
51″ NPS
61″ BSPP
730MM 1.5
8Extended Horn
Options Selected
0No Options (Bagged)
1F-Option
2P-Option
3F-Option and P-Option
4No Options (Trayed)
5TTL (Bagged)
6TTL (Trayed)
Wire Attach
0No Wire Attach
1Wire Attached

The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB1424-000MB1424-040
