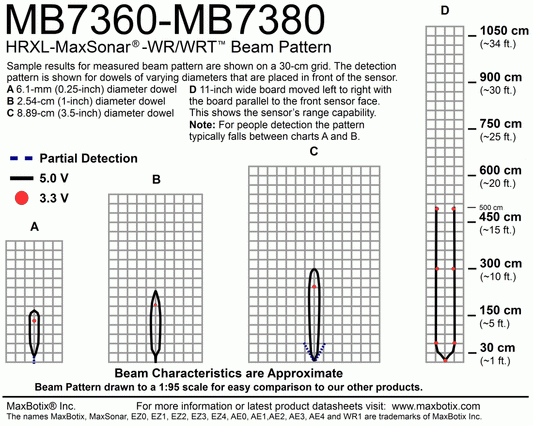

MB7360 HRXL-MaxSonar-WR
Ranges from 300mm to 5000mm with a 7.5Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target.
View Product From: $109.95 -

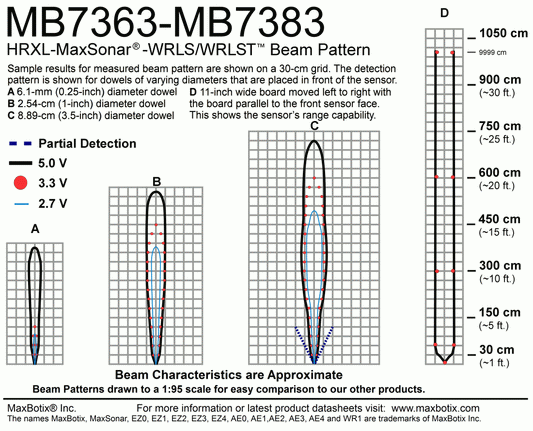

MB7363 HRXL-MaxSonar-WRLS
High sensitivity. Ranges from 500mm to 9999mm with 6Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target.
View Product From: $119.95 -

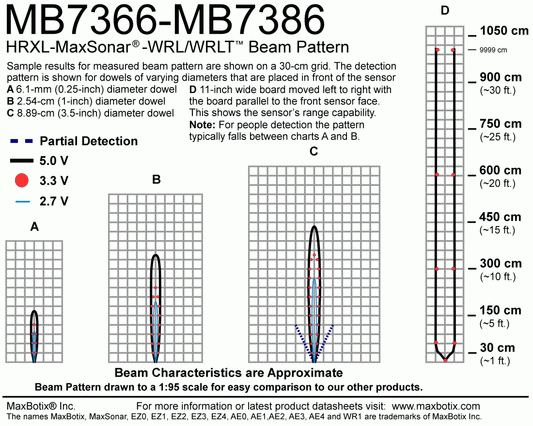

MB7366 HRXL-MaxSonar-WRL
Ranges from 500mm to 9999mm with a 6Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target.
View Product From: $119.95 -

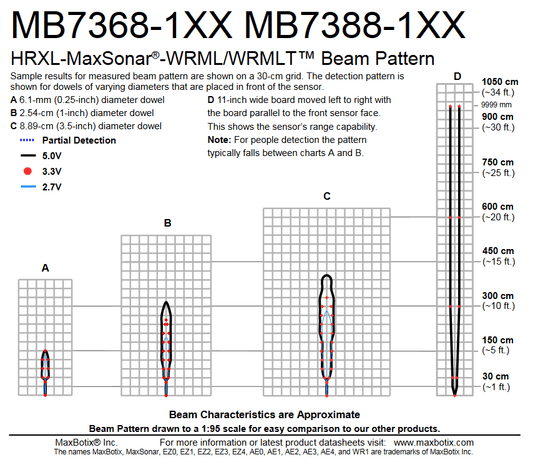

MB7368 HRXL-MaxSonar-WRML
Ranges from 300mm to 9999mm with a 5.2Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to largest target.
View Product From: $119.95 -
MB7369 HRXL-MaxSonar-WRM
Ranges from 300mm to 5000mm with a 6.7Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to largest target.
View Product From: $109.95 -
MB7375 HRXL-MaxSonar-WRB
Wide beam. Ranges from 500mm to 1525mm with 6.33Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target.
View Product From: $119.95 -
MB7380 HRXL-MaxSonar-WRT
Ranges from 300mm to 5000mm with a 7.5Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to closest target.
View Product From: $109.95 -
MB7383 HRXL-MaxSonar-WRLST
High sensitivity. Ranges from 500mm to 9999mm with a 6Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to closest target.
View Product From: $119.95 -
MB7386 HRXL-MaxSonar-WRLT
Ranges from 500mm to 9999mm with a 6Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to closest target.
View Product From: $119.95 -
MB7388 HRXL-MaxSonar-WRMLT
Ranges from 500mm to 9999mm with a 6Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to largest target.
View Product From: $119.95 -
MB7389 HRXL-MaxSonar-WRMT
Ranges from 300mm to 5000mm with a 6.7Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to largest target.
View Product From: $109.95 -

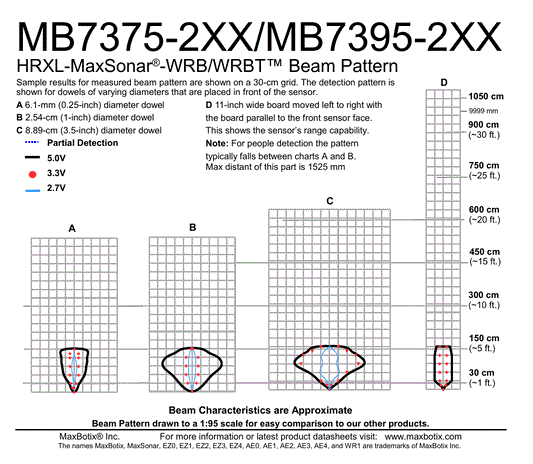

MB7395 HRXL-MaxSonar-WRBT
Wide beam. Ranges from 500mm to 1525mm with 6.33Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to closest target.
View Product From: $119.95

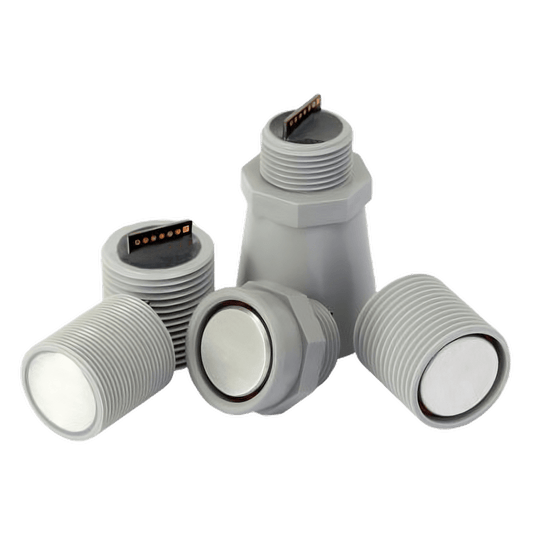

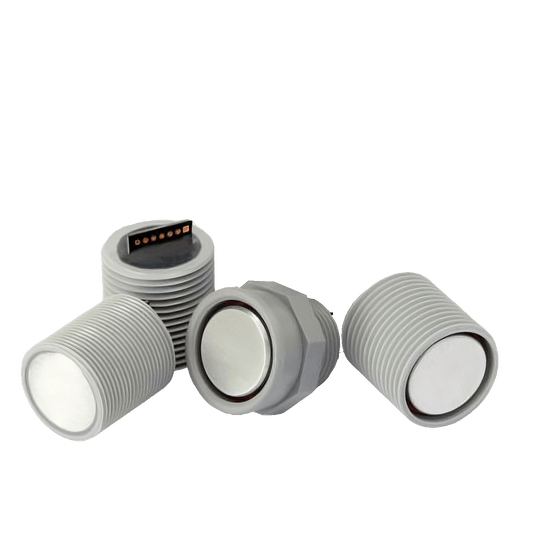

HRXL‑MaxSonar‑WR Products
The IP67 rated HRXL-MaxSonar-WR ultrasonic rangefinders offer 1mm resolution, 2.7-5.5VDC operation, a narrow beam pattern, high power output, noise rejection, automatic calibration, and temperature compensation. The output options for this ultrasonic sensor line are pulse-width, analog voltage, and a choice of asynchronous RS232 or TTL serial. Please see datasheet for full specifications.
