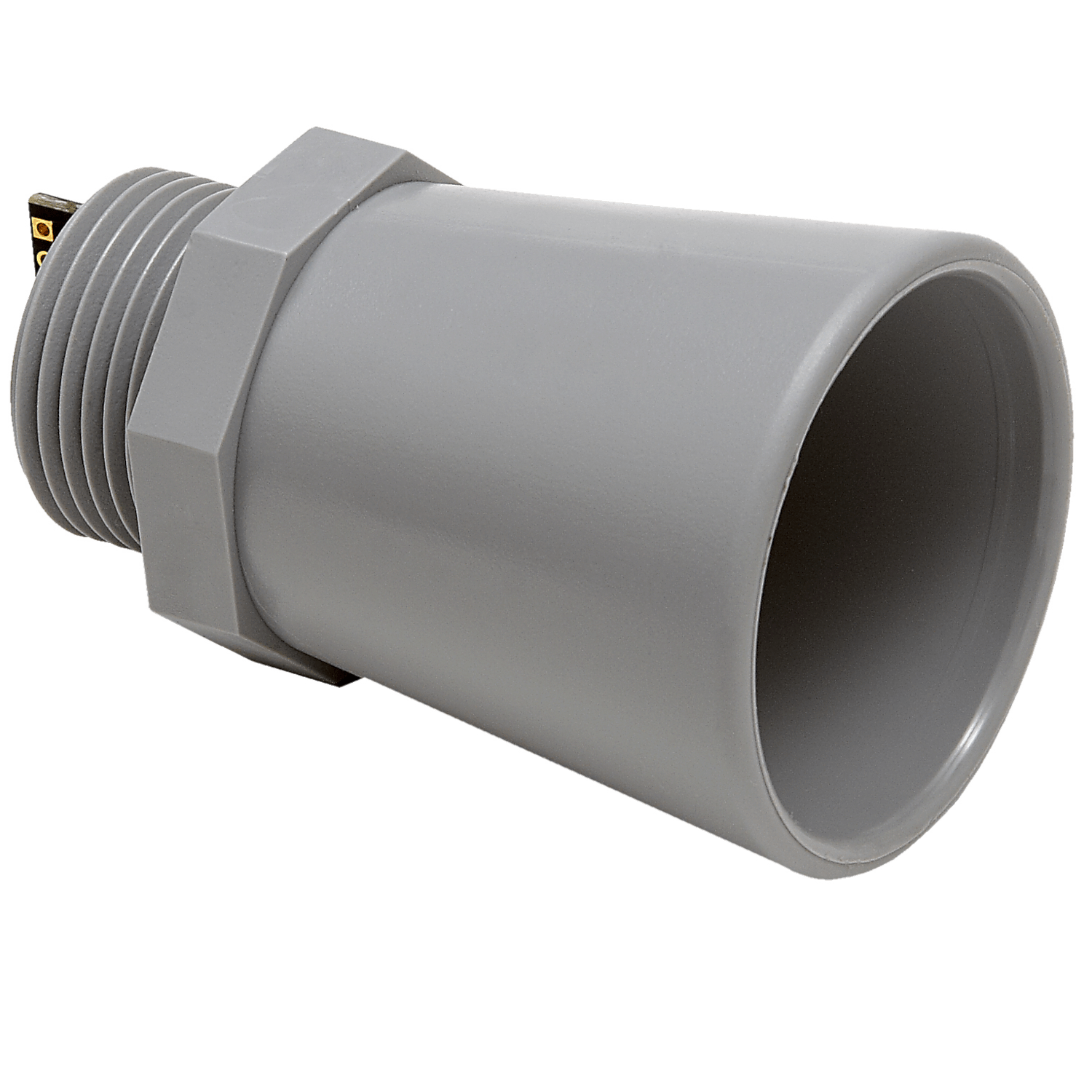

MB7563 SCXL-MaxSonar-WRLS

MB7563 SCXL-MaxSonar-WRLS

SKU:MB7563-100

High sensitivity. Ranges from 500mm to 9999mm with a 0.6Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target.

Regular price $174.95 USD
Regular price Sale price $174.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Description

Features of the weather-resistant MB7563, SCXL-MaxSonar-WRLS, include the reduced impact of condensation and frost when ran continuously in closed or high-moisture environments, millimeter resolution, short to long distance detection, range information from 500mm to 9999mm for the nearest detectable target, heightened sensitivity over our standard sensors, a 0.6Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

The MB7563 from the SCXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

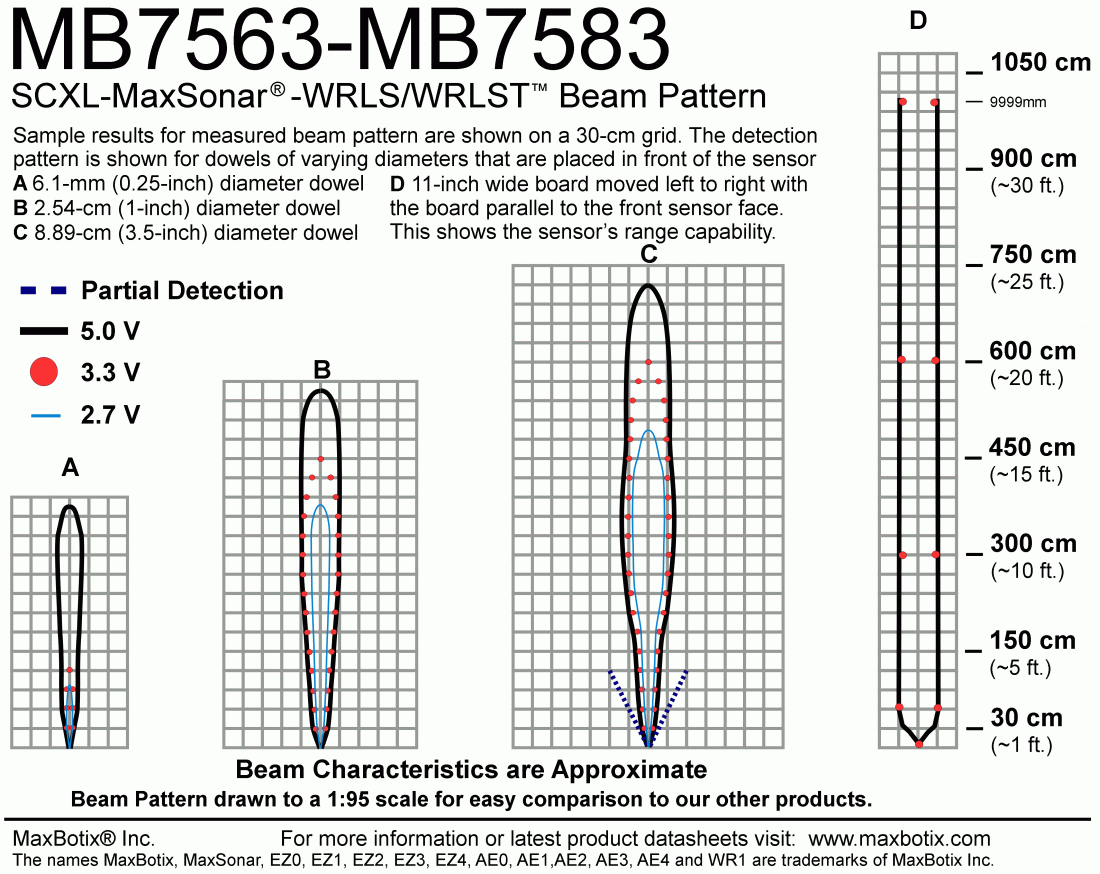

The SCXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

In addition, the MB7563 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Intended for applications requiring the resistance of condensation in high moisture environments, our self-cleaning function is designed to run continuously in order for the self-cleaning feature to be active.


Variations on this sensor model

MB7583 is the TTL version of this sensor.
MB7554 is the 5-meter version of this sensor.


Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.

Specs

  • Resolution of 1-mm
  • Self‑cleaning transducer
  • 0.57Hz read rate
  • Internal temperature compensation
  • 42kHz ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 50cm range as 50cm
  • Operates from 2.7-5.5V
  • Low 68mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational temperature -40°C to +65°C (-40°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, and ambient noise)
  • Firmware filtering for excellent noise tolerance and clutter rejection
  • Weather resistant (IP67), optional chemical resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
  • Long, narrow detection zone
  • Recommended for long-range, soft-target detection and measurement
  • Maximum range of 10 meters (394 inches)

Documentation and CAD files

Documents


Chemical Compatibility

Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.

Email: techsupport@maxbotix.com

Product 3D Models

100 Housing (Full Horn Housing)
Solid Works Part
STL File
STEP File

800 Housing (Extended Horn)

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB7563-100
MB7563-10A
MB7563-110
MB7563-11A
MB7563-120
MB7563-12A
MB7563-130
MB7563-13A
MB7563-800
MB7563-80A
MB7563-810
MB7563-81A
MB7563-820
MB7563-82A
MB7563-830
MB7563-83A

Product Change Notifications Associated with MB7563 SCXL-MaxSonar-WRLS

PCN1102

MaxBotix is changing its manufacturing process for the F-Option.  The method of creating an F-Option part was changed to improve the manufacturability and decrease lead times for F-Option parts

PCN1200

The color of any exposed epoxy will be black or gray, rather than only gray.

  • Pin Header (90 Degree 7 Pin) Attached - MaxBotix- 90-000 - Ultrasonic Sensors

    Pin Header (90 Degree 7 Pin) Attached

    Connector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)

    View Accessory
  • Pin Connector (7 Pin) Attached - MaxBotix- 7-000 - Ultrasonic Sensors

    Pin Connector (7 Pin) Attached

    Connector Header Through Hole 7 position 0.100″ (2.54mm)

    View Accessory
  • Straight 7 Pin Connector Attached - MaxBotix- Straight-000 - Ultrasonic Sensors

    Straight 7 Pin Connector Attached

    Connector Header Through Hole 7 position 0.100″ (2.54mm)

    View Accessory
  • MB7954 Shielded Cable - MaxBotix- MB7954-000 - Ultrasonic Sensors

    MB7954 Shielded Cable

    High Performance Shielded Cable

    View Accessory
  • MB7950 Mounting Hardware - MaxBotix- MB7950-000 - Ultrasonic Sensors

    MB7950 Mounting Hardware

    Allows customers to easily through-hole mount WR sensors.

    View Accessory
  • MB7986 Voltage Regulator - MaxBotix- MB7986-000 - Ultrasonic Sensors

    MB7986 Voltage Regulator

    The voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.

    View Accessory
