MB7560 SCXL-MaxSonar-WR

MB7560 SCXL-MaxSonar-WR

SKU:MB7560-100

Ranges from 300mm to 5000mm with a 0.6Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target.

Regular price $149.95 USD
Regular price Sale price $149.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Description

Features of the weather-resistant MB7560, SCXL-MaxSonar-WR, include the reduced impact of condensation and frost when ran continuously in closed or high-moisture environments, millimeter resolution, short to long distance detection, range information from 300mm to 5000mm for the nearest detectable target, a 0.6Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

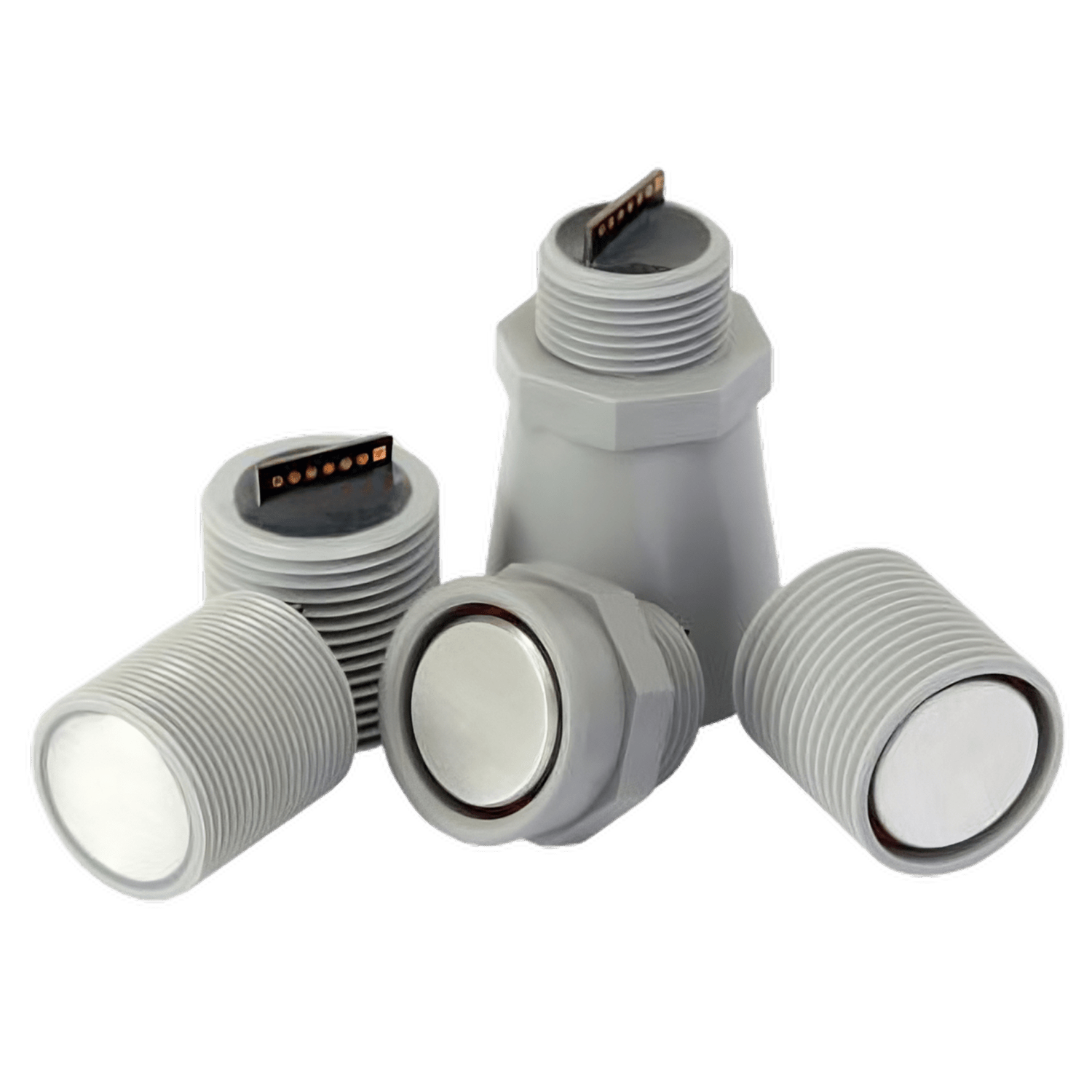

The MB7560 from the SCXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).

The SCXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

In addition, the MB7560 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Intended for applications requiring the resistance of condensation in high moisture environments, our self-cleaning function is designed to run continuously in order for the self-cleaning feature to be active.


Variations on this sensor model

MB7580 is the TTL version of this sensor.
MB7566 is the 10-meter version of this sensor.


Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.

Specs

  • Resolution of 1-mm
  • Self‑cleaning transducer
  • 0.59Hz read rate
  • Internal temperature compensation
  • 42kHz ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 30cm range as 30cm
  • Operates from 2.7-5.5V
  • Low 68mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational temperature -40°C to +65°C (-40°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, and ambient noise)
  • Firmware filtering for excellent noise tolerance and clutter rejection
  • Weather resistant (IP67), optional chemical resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

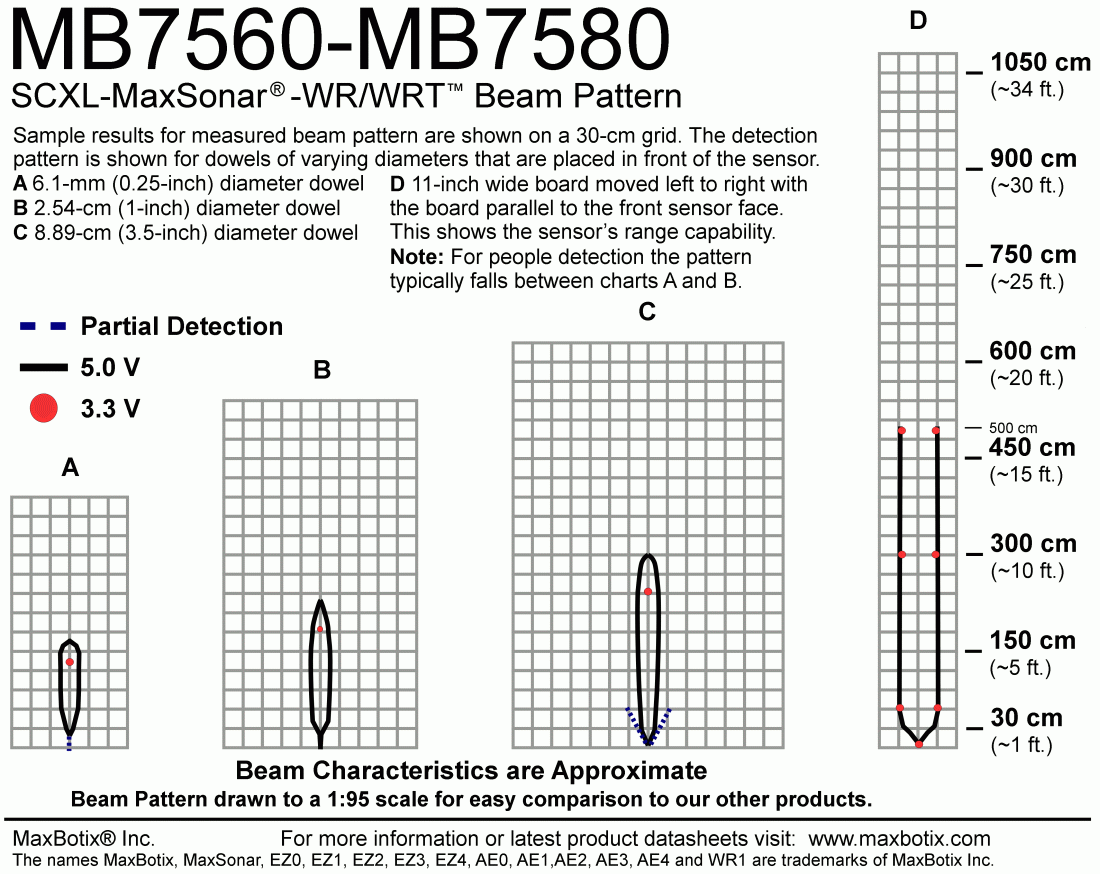

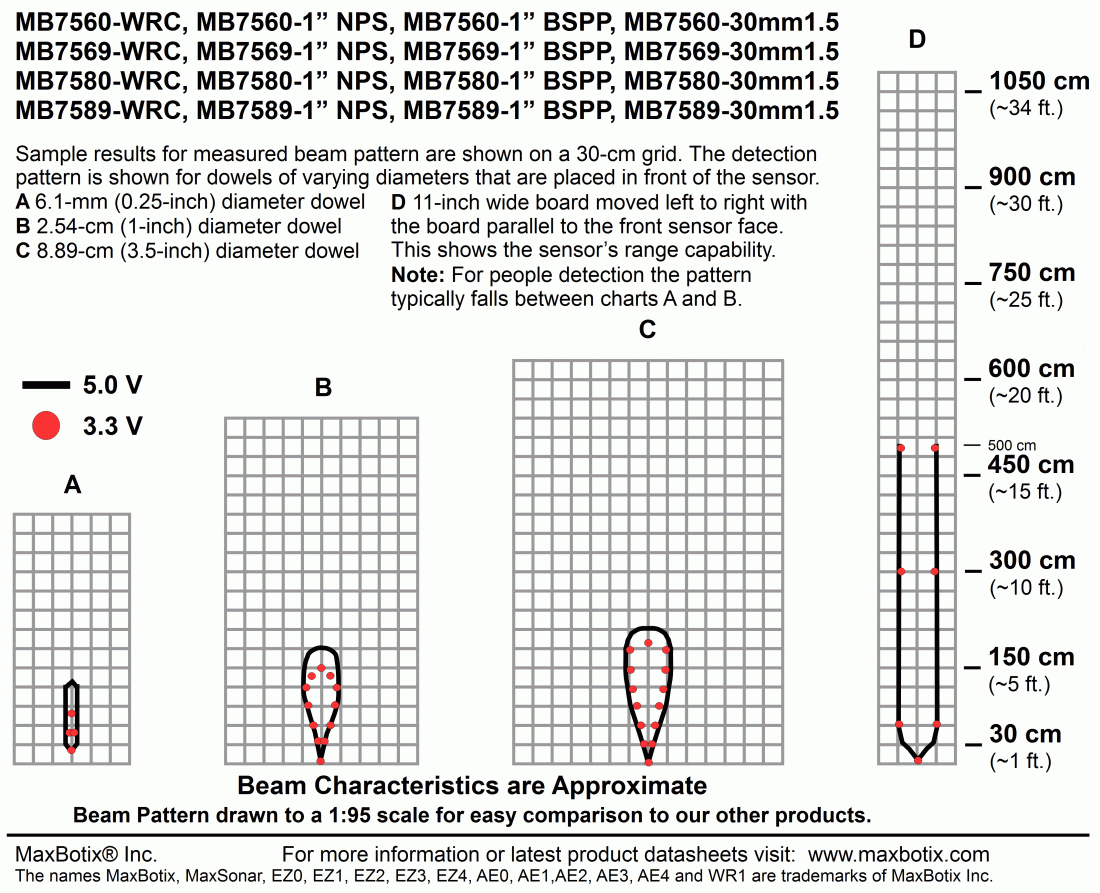

  • Long, narrow detection zone
  • RS232 Serial Output
  • Maximum range of 5 meters (196 inches)

Documentation and CAD files

Documents


Chemical Compatibility

Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.

Email: techsupport@maxbotix.com

Product 3D Models

100 Housing (Full Horn Housing)
Solid Works Part
STL File
STEP File

200 Housing (Compact Horn Housing)

500 Housing (1″ NPS Housing)

600 Housing (1″ BSPP Housing)

700 Housing (30mm 1.5 Housing)

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB7560-100
MB7560-10A
MB7560-110
MB7560-11A
MB7560-120
MB7560-12A
MB7560-130
MB7560-13A
MB7560-200
MB7560-20A
MB7560-210
MB7560-21A
MB7560-220
MB7560-22A
MB7560-230
MB7560-23A
MB7560-500
MB7560-50A
MB7560-510
MB7560-51A
MB7560-520
MB7560-52A
MB7560-530
MB7560-53A
MB7560-600
MB7560-60A
MB7560-610
MB7560-61A
MB7560-620
MB7560-62A
MB7560-630
MB7560-63A
MB7560-700
MB7560-70A
MB7560-710
MB7560-71A
MB7560-720
MB7560-72A
MB7560-730
MB7560-73A

Product Change Notifications Associated with MB7560 SCXL-MaxSonar-WR

PCN1102

MaxBotix is changing its manufacturing process for the F-Option.  The method of creating an F-Option part was changed to improve the manufacturability and decrease lead times for F-Option parts

PCN1200

The color of any exposed epoxy will be black or gray, rather than only gray.
