MB7374 HRXL-MaxSonar-WRST7

MB7374 HRXL-MaxSonar-WRST7

SKU:MB7374-100

Ranges from 500mm to 5000mm with a 6Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to closest target. Uses filtering to prevent rapid changes in readings.

Regular price $149.95 USD
Regular price Sale price $149.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Description

Features of the weather-resistant MB7374, HRXL-MaxSonar-WRST7, include millimeter resolution, short to long-distance detection, range information from 500mm to 5000mm for the nearest detectable target, heightened sensitivity over our standard sensors, a 6Hz read rate, and various output options: pulse-width, analog voltage, and TTL serial.

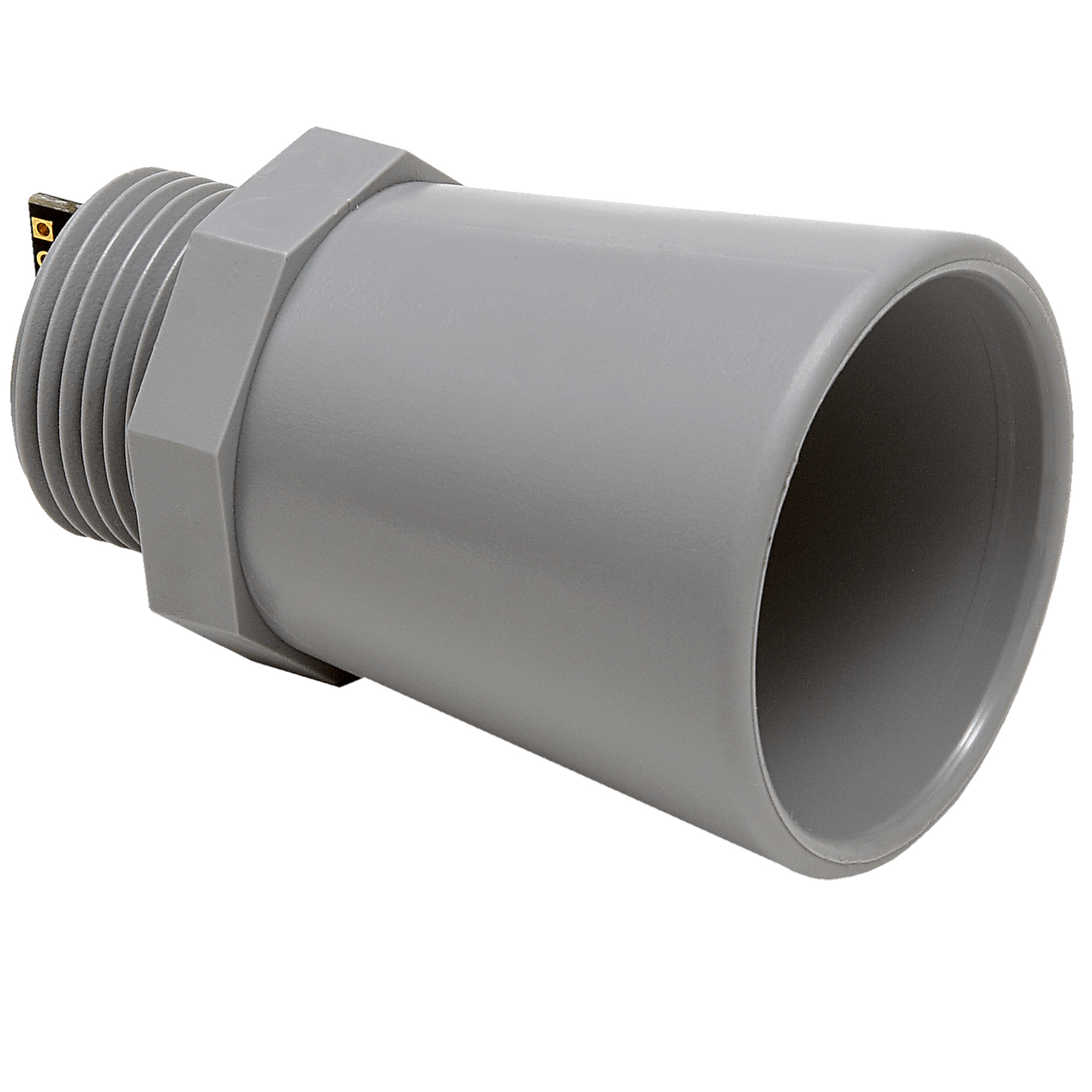

The MB7374 from the HRXL-MaxSonar-WRS line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

The HRXL-MaxSonar-WRS sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

The MB7374 has an internal filter that is a recent biased exponential weighted average. This filter is limited to changing a maximum of 7mm per second. The sensor accurately applies temperature compensation to every reading, using either the integrated temperature sensor or the optional external temperature sensor, HR-MaxTemp.

In addition, the MB7374 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.


Variations on this sensor model

MB7354 is the RS232 version of this sensor.


Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.

Specs

  • Resolution of 1-mm
  • 6Hz read rate
  • Internal temperature compensation
  • 42kHz ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 50cm range as 50cm
  • Maximum Range of 5-meters (196 inches)
  • Operates from 2.7-5.5V
  • Low 3.1mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational temperature -40°C to +65°C (-40°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, and ambient noise)
  • Firmware filtering for excellent noise tolerance and clutter rejection
  • Weather resistant (IP67), optional chemical resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

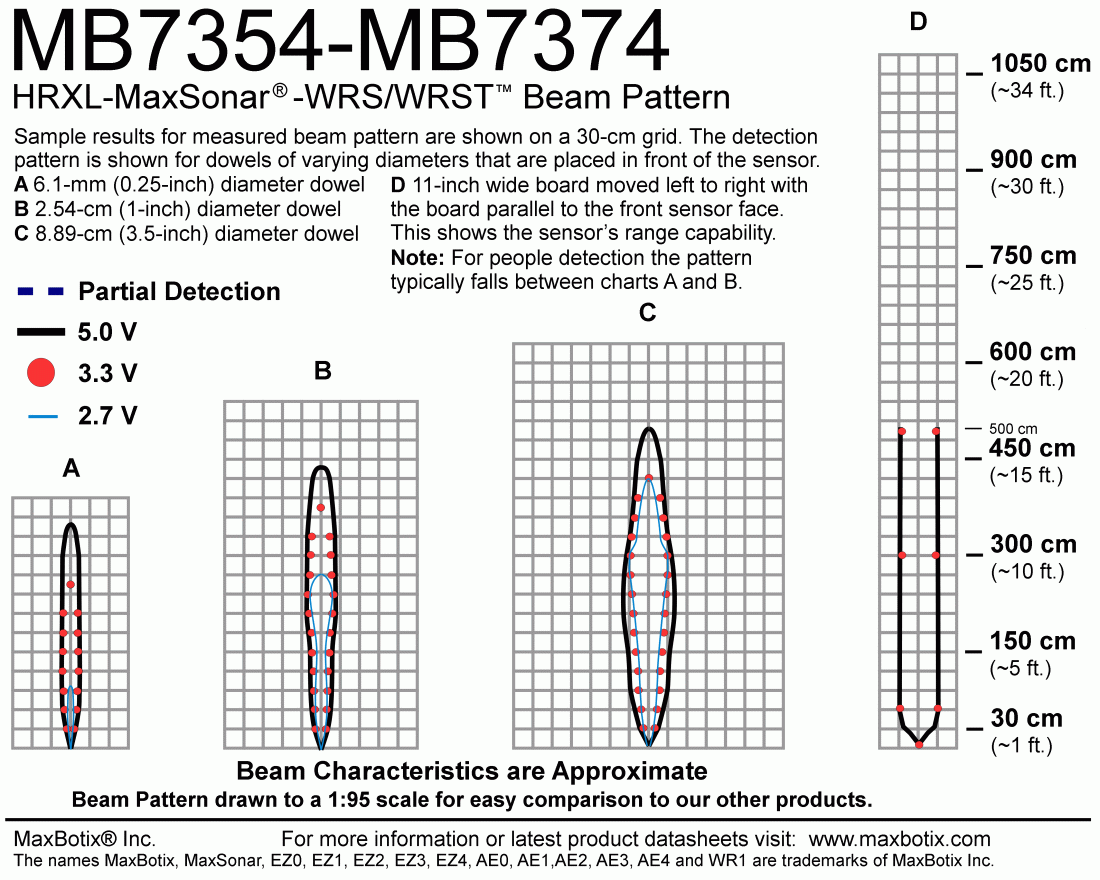

  • Long, narrow detection zone
  • TTL Serial Output
  • Recommended for snow level measurement
  • Recommended for weather station monitoring
  • Great for applications with slow-moving targets
  • Maximum range of 5 meters (196 inches)

Documentation and CAD files

Documents

Chemical Compatibility

Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.

Email: techsupport@maxbotix.com

Product 3D Models

100 Housing (Full Horn Housing)
Solid Works Part
STL File
STEP File

SNAP-ON HORN -A00 CAD Files

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB7374-100
MB7374-10A
MB7374-110
MB7374-11A
MB7374-120
MB7374-12A
MB7374-130
MB7374-13A
MB7374-A00
MB7374-A0A
MB7374-A10
MB7374-A1A
MB7374-A20
MB7374-A2A
MB7374-A30
MB7374-A3A
