HRXL‑MaxSonar‑WR Products

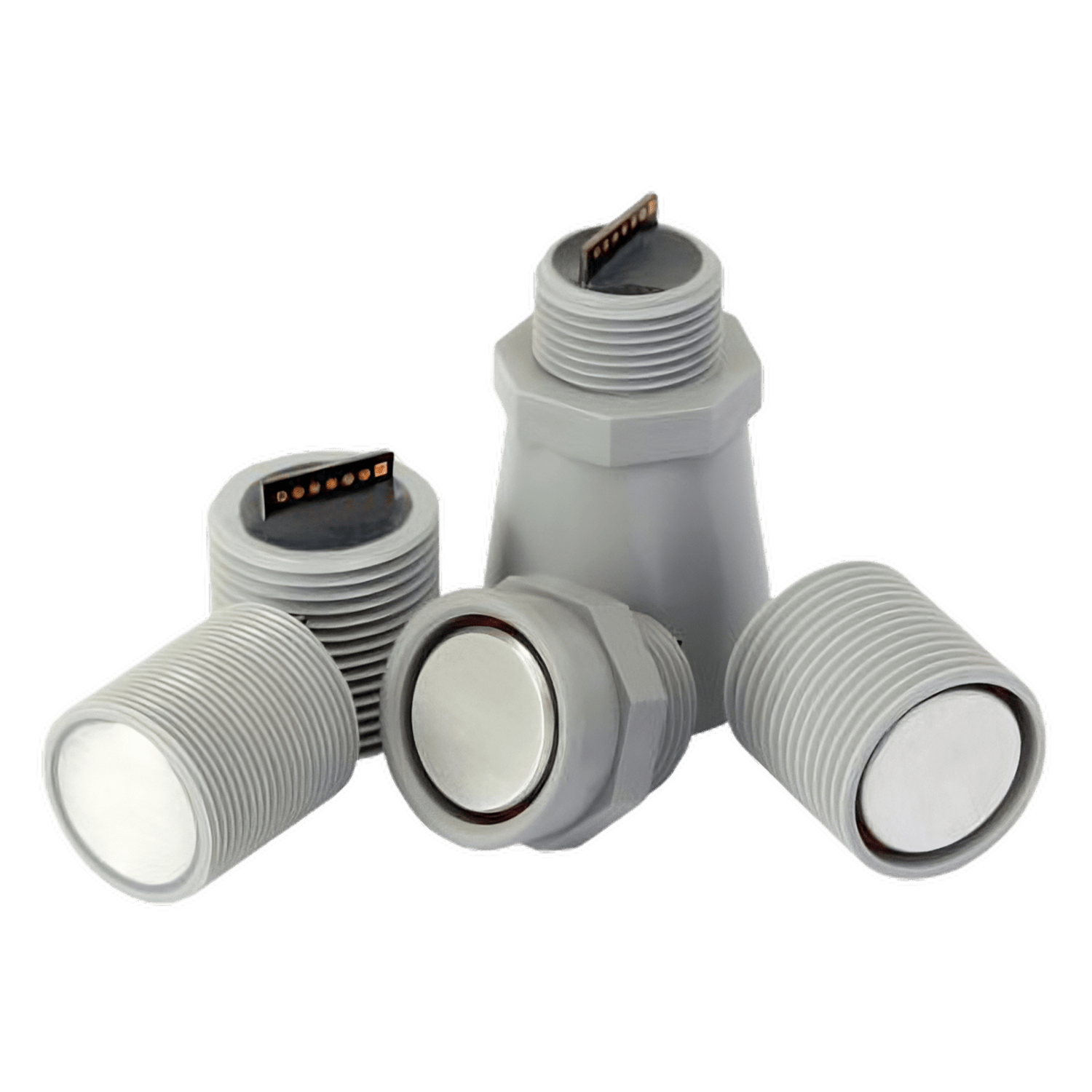

MB7369 HRXL-MaxSonar-WRM

High Performance Ultrasonic Precision Rangefinder

Clear

F-Option for Chemical Resistance * – optional

P-Option for Corrosion Resistance * – optional

Shielded Cable Attach Option *
(per each) – optional

Additional Wire Length – optional

(1ft = 1 Qty)

Quantity:
Quantity:
Grand total:
Quantities > 25 may delay ship date up to 1 week.
Options with * may delay ship date up to 2 weeks.
Applicable for all variations of this product
QuantityCost Per Product
5 - 9$104.95
10 - 49$97.95
For 34 Nps Wrc Housing & 34 Nps Wr Housing
QuantityCost Per Product
50 - 99$83.48
100$75.50
For 1 Bspp Housing & 1 Nps Housing
QuantityCost Per Product
50 - 99$84.98
100$77.00
For 30mm 1 5 Housing
QuantityCost Per Product
50 - 99$86.48
100$78.50

Product Description

The HRXL-MaxSonar-WRM ignores smaller targets and only reports the range to target with the largest acoustic return. This is our most advanced weather resistant sensor designed for target detection and ranging outdoors or in tank or bin applications.

The HRXL-MaxSonar-WRM sensors are equipped with filtering firmware which allows the sensor to ignore smaller targets and noise, and still report the target that gives the largest acoustic return. (The sensor will also reject periodic noise, even noise that has a higher amplitude than the acoustic return from the target.) This gives users the flexibility to consistently range larger targets in the presence of clutter and noise. If the largest target is removed from the field of view, the HRXL-MaxSonar-WRM will switch to the target that gives the next largest detectable return.

The Most-Likely filter is designed to report the distance to the largest acoustic return while ignoring smaller targets. When targets are of similar amplitude reflections, preference is given to the closest target.

MB7360 is the standard RS232 version of this sensor line.

Models with additional chemical resistance are available

The F-Option design modification provides our weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option when ordering.

Product Specifiations

  • Resolution of 1-mm
  • 6.66Hz read rate
  • Internal temperature compensation
  • 42kHz ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 30cm typically range as 30cm
  • Operates from 2.7-5.5V
  • Low 2.9mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational temperature -40°C to +65°C (-40°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, and ambient noise)
  • Firmware filtering for excellent noise tolerance and clutter rejection
  • Weather resistant (IP67), optional chemical resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

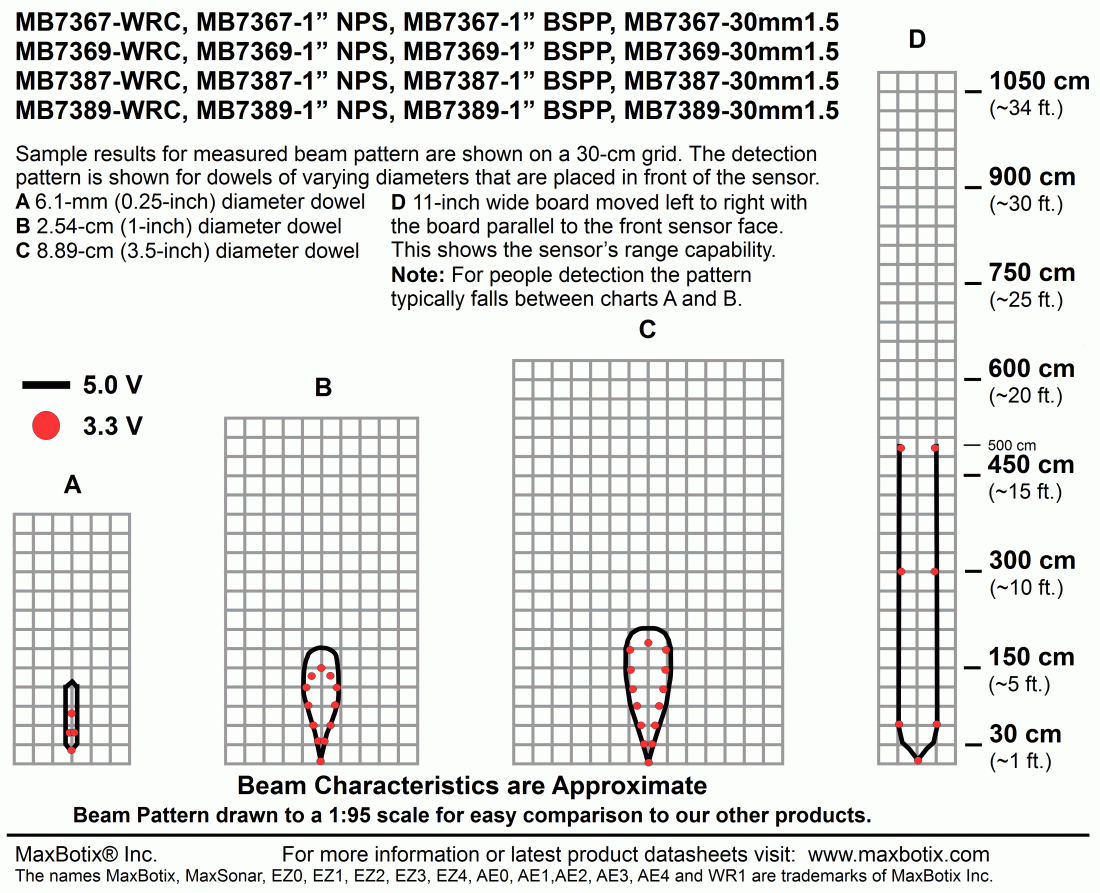

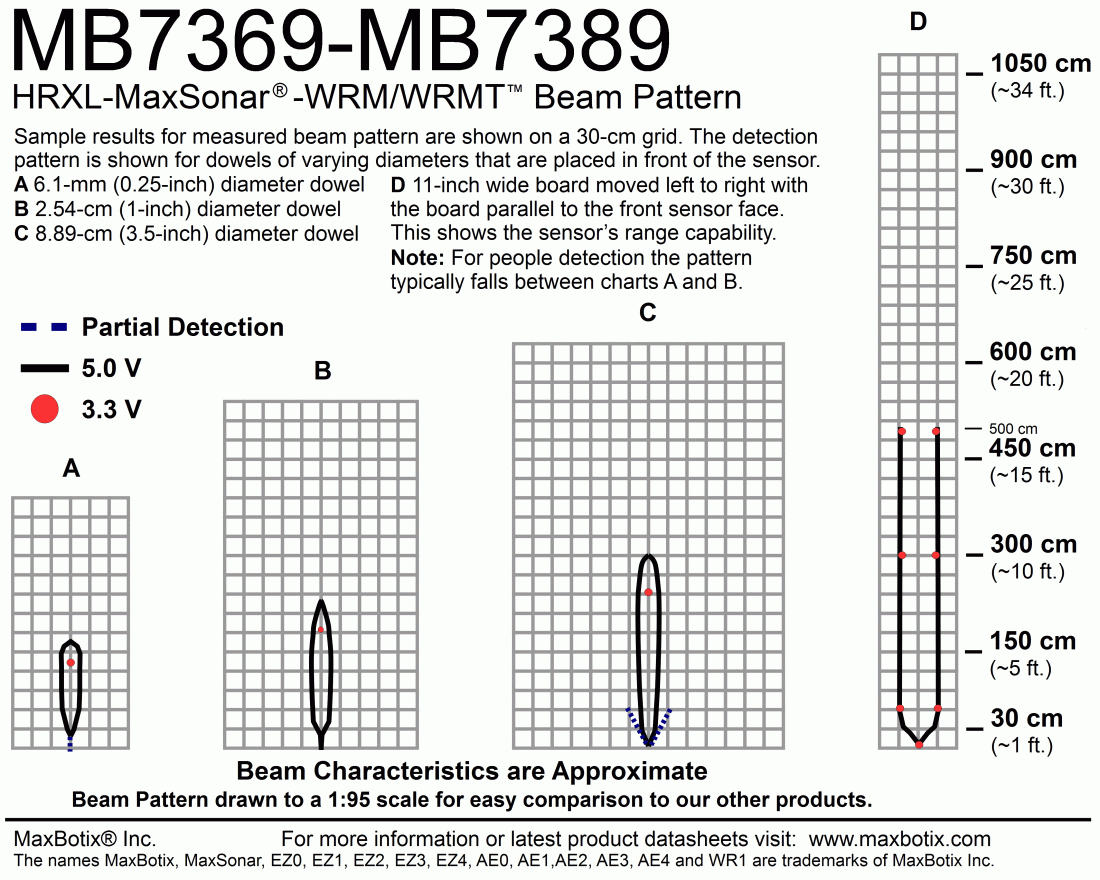

  • Long, narrow detection zone
  • Our most advanced weather resistant, ultrasonic sensor
  • Additional stability filter rejects anomalous readings
  • Detects the largest signal return in the field of view
  • Uses the complete dynamic range of the sensor, if no large targets are present the sensor will select the next smallest target in view
  • Can be used to range large objects behind small obstructions
  • Best sensor for bin and tank level measurements
  • Maximum range of 500 cm (196 inches)
  • RS232 serial data output
  • Volume Pricing (100 or more units): Contact MaxBotix Inc.

Product Documentation

Documents and Downloads

MB7369 DatasheetHRXL-MaxSonar-WRM-datasheet
Sensor Selection GuideSensor Selection Guide
HRWR Chaining NotesHRXL-MaxSonar-WR Chaining
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip

Product 3D Models

Full Horn Housing
Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part
Compact Horn Housing
Keyshot FileIGES FileACIS 7.0 FileSolid Works Part
STL FileStep FileParaSolid File
1″ BSPP Housing
Keyshot FileIGES FileACIS 7.0 FileSolid Works Part
STL FileStep FileParaSolid File
1″ NPS Housing
Keyshot FileIGES FileACIS 7.0 FileSolid Works Part
STL FileStep FileParaSolid File
30mm 1.5 Housing
Keyshot FileIGES FileACIS 7.0 FileSolid Works Part
STL FileStep FileParaSolid File

Part Numbers
