HRXL‑MaxSonar‑WR Products

MB7363 HRXL-MaxSonar-WRLS

High Performance Ultrasonic Precision Rangefinder

Product Description

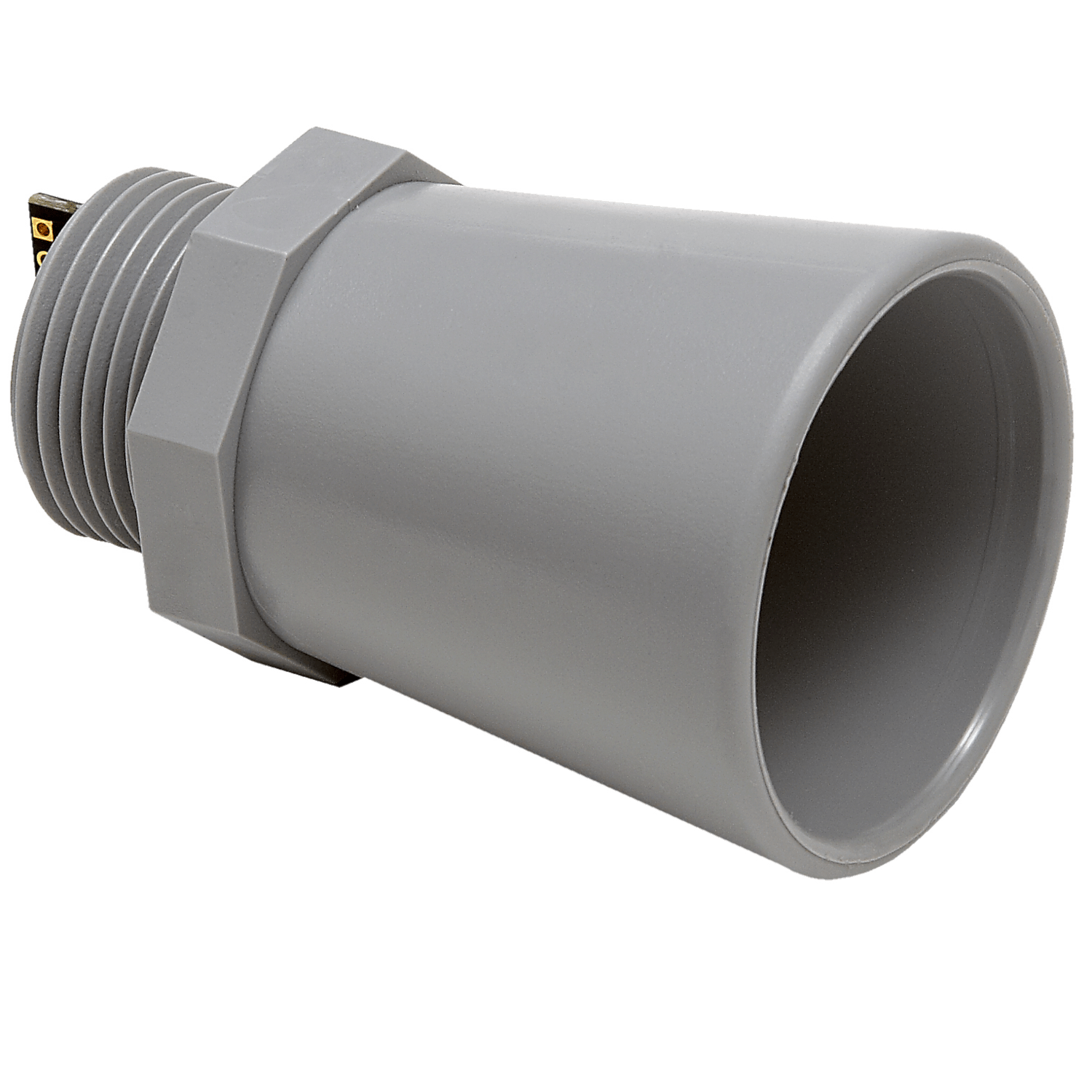

The weather resistant HRXL-MaxSonar-WR is a rugged, ultrasonic sensor component module. This outdoor sensor provides very short- to long- distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

The HRXL-MaxSonar-WRLS MB7363 ultrasonic sensor features a maximum range of 10 meters to large targets. The MB7363 is our most sensitive long-range sensor.

High-output, acoustic power, combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The HRXL‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

MB7383 is the TTL version of this sensor.
MB7354 is the 5 meter version of this sensor.

Models with additional chemical resistance are available

The F-Option (IP-68) design modification provides our weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP-68) when ordering.

Product Specifiations

  • Resolution of 1-mm
  • 6Hz read rate
  • Internal temperature compensation
  • 42kHz ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
  • Operates from 2.7-5.5V
  • Low 2.9mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational temperature -40°C to +65°C (-40°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, and ambient noise)
  • Firmware filtering for excellent noise tolerance and clutter rejection
  • Weather resistant (IP67), optional chemical resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

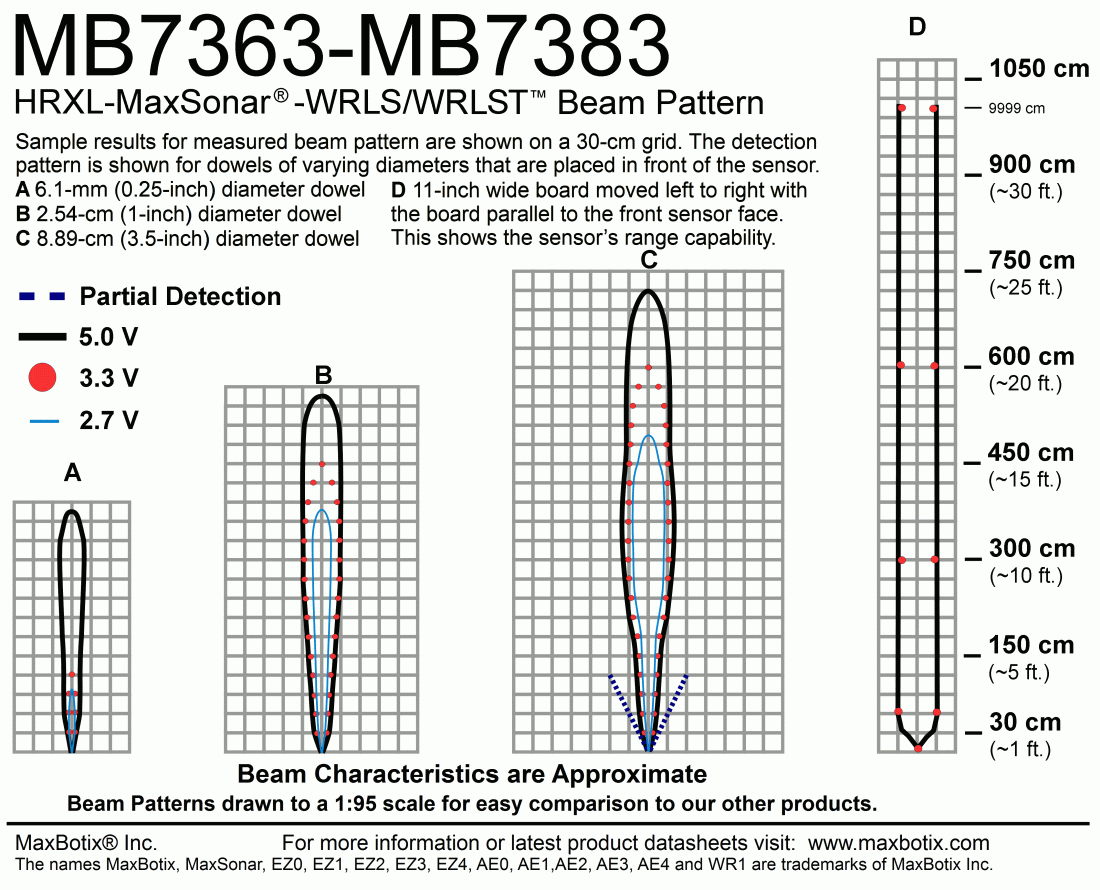

  • Long, narrow detection zone
  • RS232 Serial Output
  • Great for long-range people detection
  • Maximum range of 10 meters (394 inches)
  • Volume Pricing (100 or more units): Contact MaxBotix Inc.

Product Documentation

Documents and Downloads

MB7363 DatasheetHRXL-MaxSonar-WRLS-datasheet
Sensor Selection GuideSensor Selection Guide
HRWR Chaining NotesHRXL-MaxSonar-WR Chaining
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip

Product 3D Models

Full Horn Housing
Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part

Part Numbers

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

MB7363100
Base
Housing Style
0Not Applicable
13/4″ NPS WR
23/4″ NPS WRC
3Ultra Compact
4Ultra Compact Flush Mount
51″ NPS
61″ BSPP
730MM 1.5
8Extended Horn
Options Selected
0No Options (Bagged)
1F-Option
2P-Option
3F-Option and P-Option
4No Options (Trayed)
5TTL (Bagged)
6TTL (Trayed)
Wire Attach
0No Wire Attach
1Wire Attached

The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB7363-100MB7363-101MB7363-110MB7363-111
MB7363-120MB7363-121MB7363-130MB7363-131
MB7363-800MB7363-801MB7363-810MB7363-811
MB7363-820MB7363-821MB7363-830MB7363-831
