MB2530 IRXL-MaxSonar-CS3

Patent Pending High Performance Ultrasonic Rangefinder

Product Description

Features of the MB2530, IRXL-MaxSonar-CS3, include one centimeter resolution, an excellent blend of large object detection and side object rejection, range information from 50cm to 1650cm, a 1.8Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

This sensor, unlike many serving this application, was fully tested and verified to work in extreme temperatures from -40°C to +65°C.

This makes the MB2530 a great choice for cargo monitoring applications.

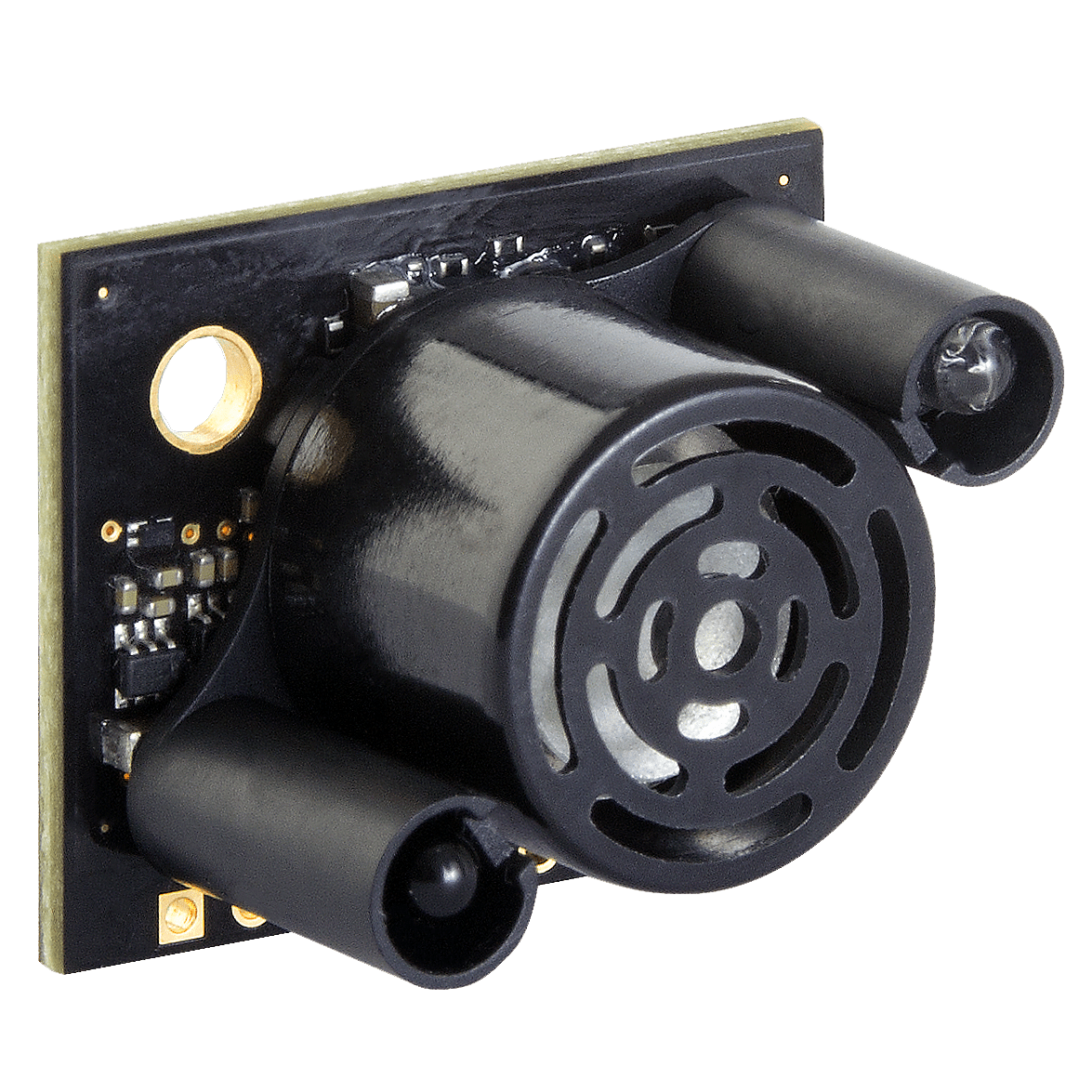

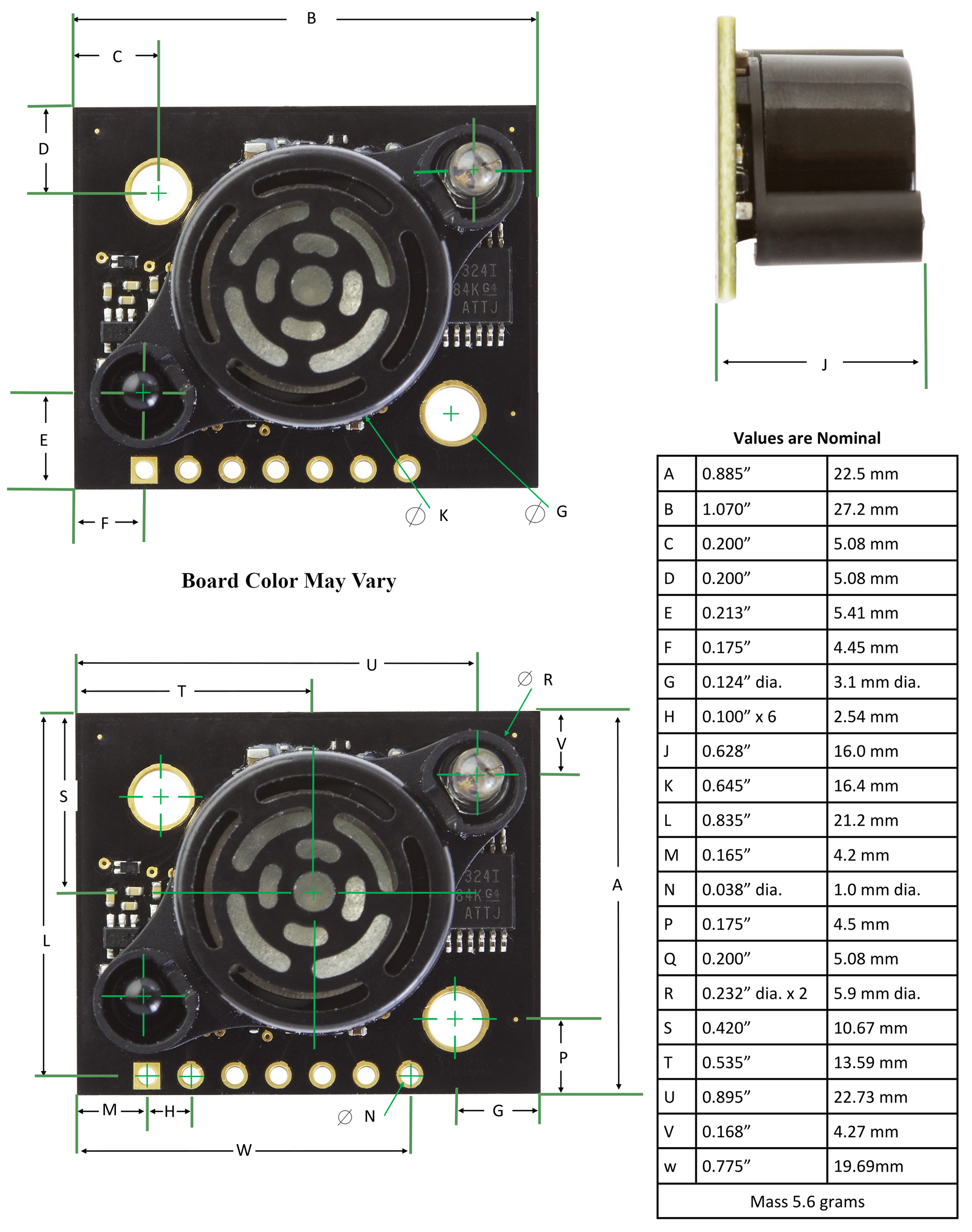

The MB2530 from the IRXL‑MaxSonar‑CS line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.

In addition, the MB2530 provides optical reflectance based detection combined with sonar to provide virtually 100% detection of objects.

Product Specifications

  • Resolution of 1 cm
  • 1.8Hz reading rate
  • 25kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
  • Virtually no sensor dead zone
  • Maximum Range of 1650 cm
  • Operates from 2.7-5.5V
  • Low 1.65mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Great for cargo detection applications
  • Quote Request Form: For orders greater than 100 sensors

Product Documentation

Documents and Downloads

Sensor Selection GuideSensor Selection Guide
IRXL-MaxSonar-CS DatasheetIRXL-MaxSonar-CS Datasheet
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity

Part Numbers

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

MB2530000
Base
Housing Style
0Not Applicable
13/4″ NPS WR
23/4″ NPS WRC
3Ultra Compact
4Ultra Compact Flush Mount
51″ NPS
61″ BSPP
730MM 1.5
8Extended Horn
Options Selected
0No Options (Bagged)
1F-Option
2P-Option
3F-Option and P-Option
4No Options (Trayed)
5TTL (Bagged)
6TTL (Trayed)
Wire Attach
0No Wire Attach
1Wire Attached

The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB2530-000MB2530-040
