MB1414 USB-ProxSonar-EZ1

MB1414 USB-ProxSonar-EZ1

SKU:MB1414-000

Ranges from 6 inches to 125 inches. 5-foot detection zone for proximity information with a ~2.5-second acquire time and ~1.5-second release time.

Regular price $49.95 USD
Regular price Sale price $49.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Description

Features of the MB1414, USB-ProxSonar-EZ1, include one-inch resolution, both proximity and range information for the nearest detectable target, and serial data over an easy-to-use USB interface.

The USB-ProxSonar-EZ line is designed for people or obstacles that enter within a calibrated detection zone. The USB-ProxSonar-EZ proximity sensors report when a person or other detectable target enters the detection zone. The target is released after leaving the USB-ProxSonar-EZ's detection zone.

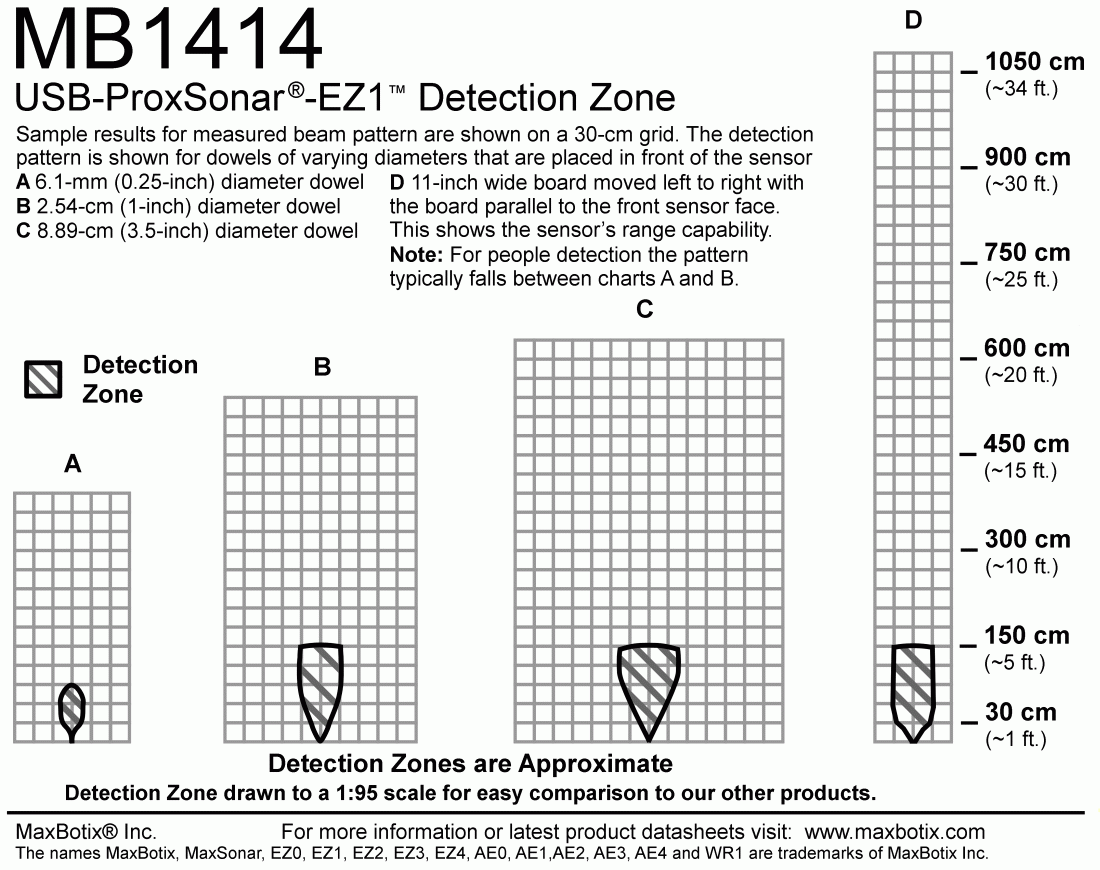

The MB1414 has a detection zone of ~5 feet. The MB1414 will allow for 8+ simultaneous sensors depending on sensor mounting and environment.

Specs

  • USB interface
  • ~2.5-second target acquire time*
  • ~1.5-second target release time*
  • Automatic multi-sensor operation
  • People sensor
  • Resolution of 1 inch
  • Maximum Range of 125 inches (318 cm)
  • Detection zone range of 60 inches (152 cm)
  • 42kHz Ultrasonic sensor measures the distance to objects
  • RoHS compliant
  • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Longest range detection zone

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB1414-000

Product Change Notifications Associated with MB1414 USB-ProxSonar-EZ1

PCN1168

The paint dots are removed from the sensors and replaced with part number labels.

PCN1200

The color of any exposed epoxy will be black or gray, rather than only gray.
