MB1413 HRUSB-MaxSonar-EZ1

USB High Performance Ultrasonic Precision Rangefinders

Product Description

Features of the MB1413, HRUSB-MaxSonar-EZ1, include millimeter resolution, a great blend of sensitivity as well as side object rejection, short to long distance detection, range information from 300mm to 5000mm, a ~4Hz read rate, and a USB serial output.

This makes the MB1413 a good low-cost starting place for a customer not sure of which HRUSB‑MaxSonar‑EZ sensor to use.

The MB1413 from the HRUSB‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.

In addition, the MB1413 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

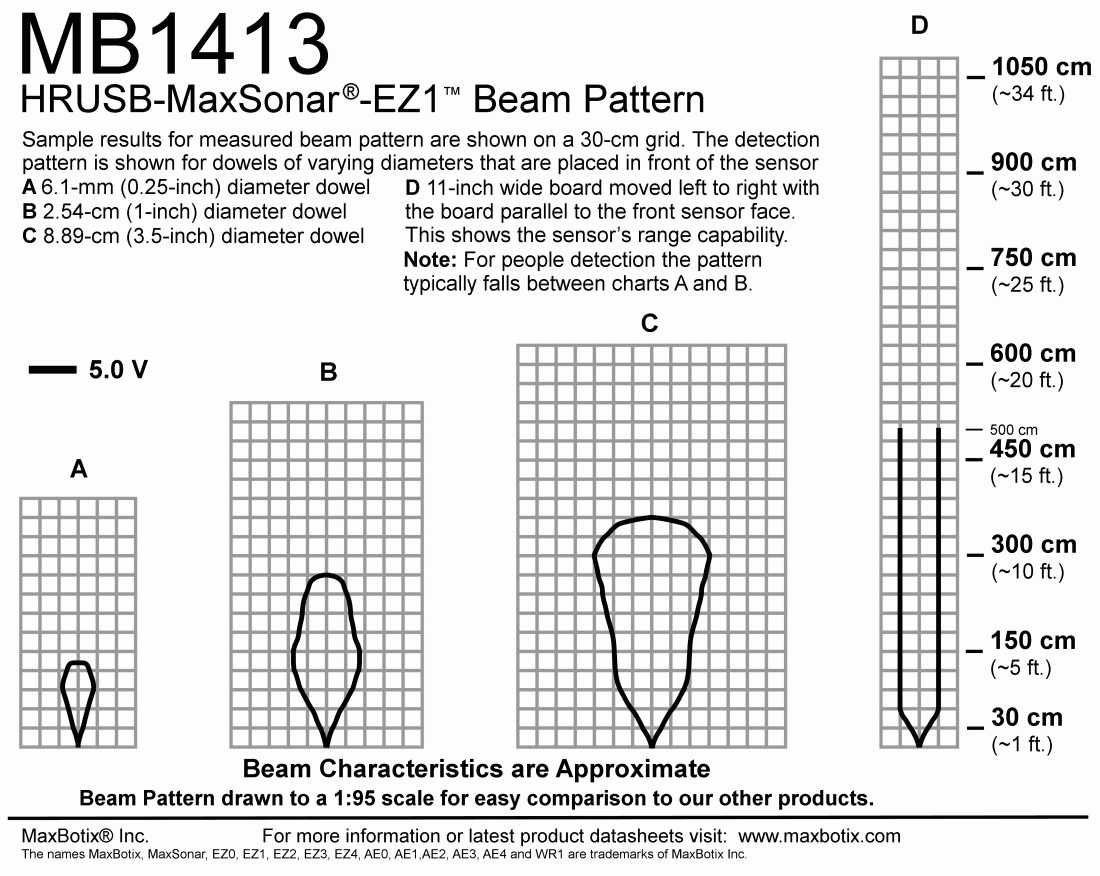

Product Specifications

  • USB interface
  • Resolution of 1 mm
  • Multi-sensor operation
  • ~250mS between range readings
  • Maximum Range of 5000 mm (196 inches)
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Virtually no sensor dead zone, objects closer than 30 cm range as 30 cm
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Great starting point for users unsure of which sensor to use
  • Quote Request Form: For orders greater than 100 sensors

Product Documentation

Documents and Downloads

MB1413 DatasheetHRUSB-MaxSonar-EZ1-datasheet
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip
Product 3D Models
These 3D model files will download with a different product name.
Key ShotIGES FileACIS 7.0
File
Solid Works Part
STL FileSTEP FileParaSolid
Part


Part Numbers

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

MB1413000
Base
Housing Style
0Not Applicable
13/4″ NPS WR
23/4″ NPS WRC
3Ultra Compact
4Ultra Compact Flush Mount
51″ NPS
61″ BSPP
730MM 1.5
8Extended Horn
Options Selected
0No Options (Bagged)
1F-Option
2P-Option
3F-Option and P-Option
4No Options (Trayed)
5TTL (Bagged)
6TTL (Trayed)
Wire Attach
0No Wire Attach
1Wire Attached

The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB1413-000MB1413-040
