MB1023 HRLV-MaxSonar-EZ2

High Performance Ultrasonic Rangefinder

Product Description

Features of the MB1023, HRLV-MaxSonar-EZ2, include millimeter resolution, an excellent compromise between sensitivity and side object rejection, short to long distance detection, range information from 300mm to 5000mm, a 10Hz read rate, and various output options: pulse-width, analog voltage, and a choice of either RS232 or TTL serial.

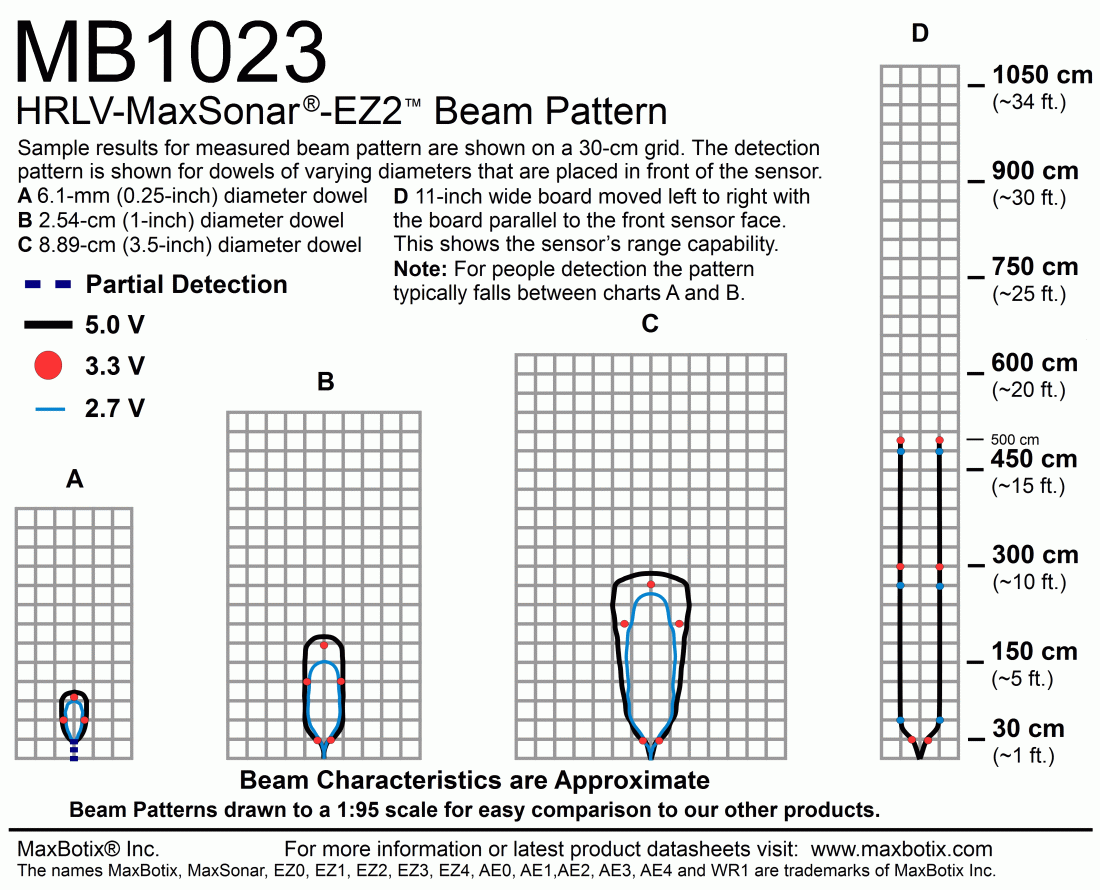

This makes the MB1023 is a great choice for applications that require decreased sensitivity to side objects than the MB1013.

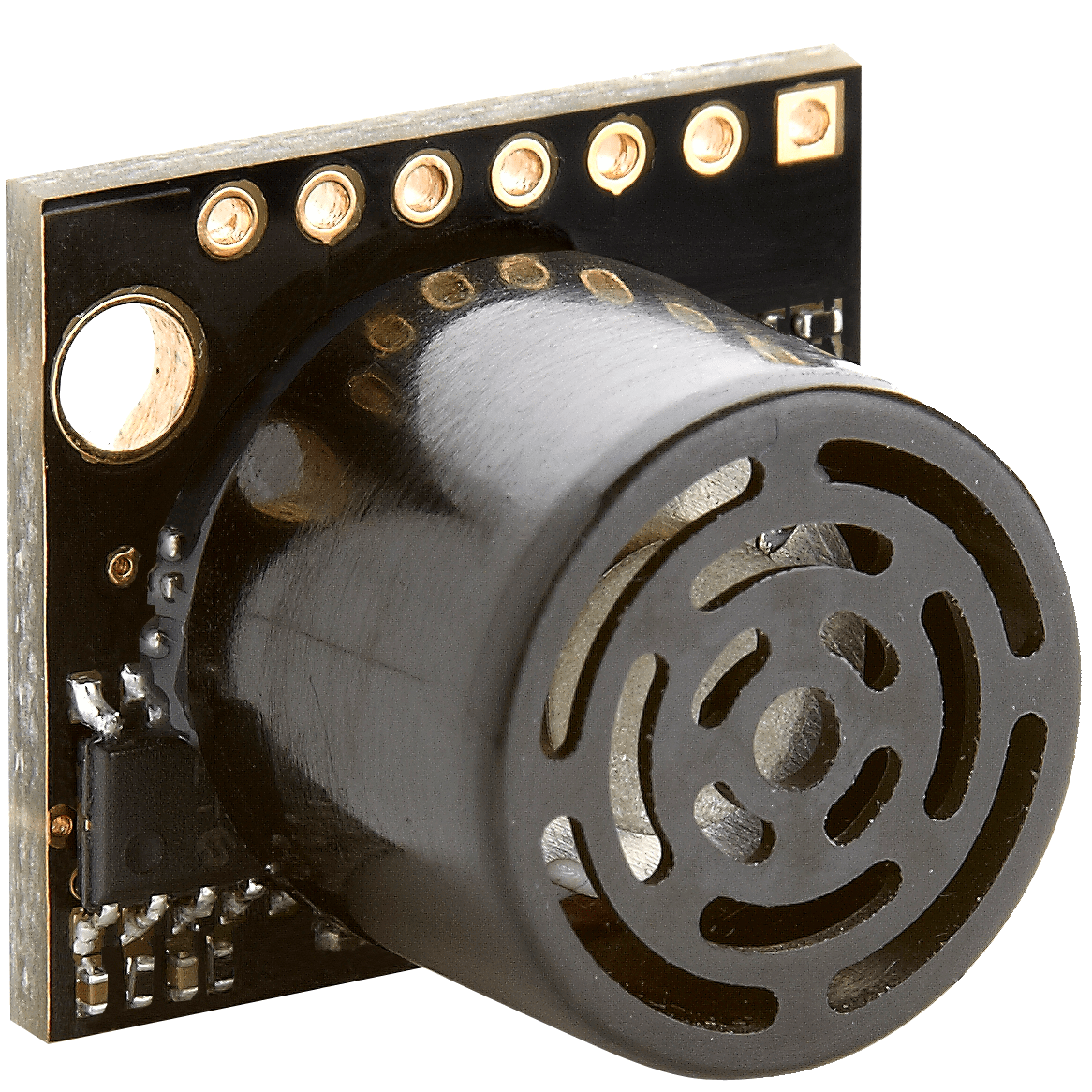

The MB1023 from the HRLV‑MaxSonar‑EZ line of sensors is a very small, less than one cubic inch, ultrasonic sensor component module. This sensor comes with mounting holes provided on the circuit board for easy installation in nearly all applications.

In addition, the MB1023 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Product Specifications

  • Resolution of 1‑mm
  • 10Hz reading rate
  • Internal temperature compensation
  • Cost-effective solution where precision range-findings are needed
  • Sensor component allows users to lower the cost of their systems without sacrificing performance
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm will typically range as 30 cm
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • Operates from 2.5V-5.5V
  • Low 3.1mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -0C to +65C (+32F to +149F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Option external temperature compensation HR‑MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Narrower beam then the MB1013 HRLV-MaxSonar-EZ1
  • Quote Request Form: For orders greater than 100 sensors

Product Documentation

Documents and Downloads

MB1023 DatasheetHRLV-MaxSonar-EZ2-datasheet
HRLV ChainingChaining Application Guide
Quick Start GuideHRLV-MaxSonar-EZ Quick Start Guide
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip
Product 3D Models
Key ShotIGES FileACIS 7.0
File
Solid Works Part
STL FileSTEP FileParaSolid
Part


Part Numbers

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.

MB1023000
Base
Housing Style
0Not Applicable
13/4″ NPS WR
23/4″ NPS WRC
3Ultra Compact
4Ultra Compact Flush Mount
51″ NPS
61″ BSPP
730MM 1.5
8Extended Horn
Options Selected
0No Options (Bagged)
1F-Option
2P-Option
3F-Option and P-Option
4No Options (Trayed)
5TTL (Bagged)
6TTL (Trayed)
Wire Attach
0No Wire Attach
1Wire Attached

The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB1023-000MB1023-040MB1023-050MB1023-060
