MB7395 HRXL-MaxSonar-WRBT
MB7395 HRXL-MaxSonar-WRBT
SKU:MB7395-200
Wide beam. Ranges from 500mm to 1525mm with 6.33Hz read rate. Pulse-width, analog voltage, and TTL serial. Reports range to closest target.
Couldn't load pickup availability
Discounted pricing is shown in the cart.
| Quantity | 5-9 | 10-24 | 25-49 | 50-99 | 100+ |
| Discount | 5% | 10% | 15% | 20% | 25% |
Collapsible content
Description
The weather resistant HRXL-MaxSonar-WRBT is a rugged, ultrasonic sensor component module. This outdoor sensor provides wide-angled detection and ranging out to five feet in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.
The HRXL-MaxSonar-WRBT MB7395 ultrasonic sensor features a maximum range of 5 feet (1525mm). The MB7395 is our sensor with the widest detection zone.
High-output, acoustic power, combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise-free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The HRXL‑MaxSonar-WR sensors are factory calibrated.
Variations on this sensor model
MB7375 is the RS232 version of this sensor.
Models with additional chemical resistance are available
The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP-68) when ordering.
Specs
- Resolution of 1-mm
- 6.33Hz read rate
- Internal temperature compensation
- 42kHz ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
- Virtually no sensor dead zone, objects closer than 50cm typically range as 50cm
- Operates from 2.7-5.5V
- Low 2.9mA average current requirement
- Small, lightweight module
- Designed for easy integration into your project or product
- Operational temperature -40°C to +65°C (-40°F to +149°F)
- Real-time automatic calibration (voltage, humidity, and ambient noise)
- Firmware filtering for excellent noise tolerance and clutter rejection
- Weather resistant (IP67), optional chemical resistant F-Option
- Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

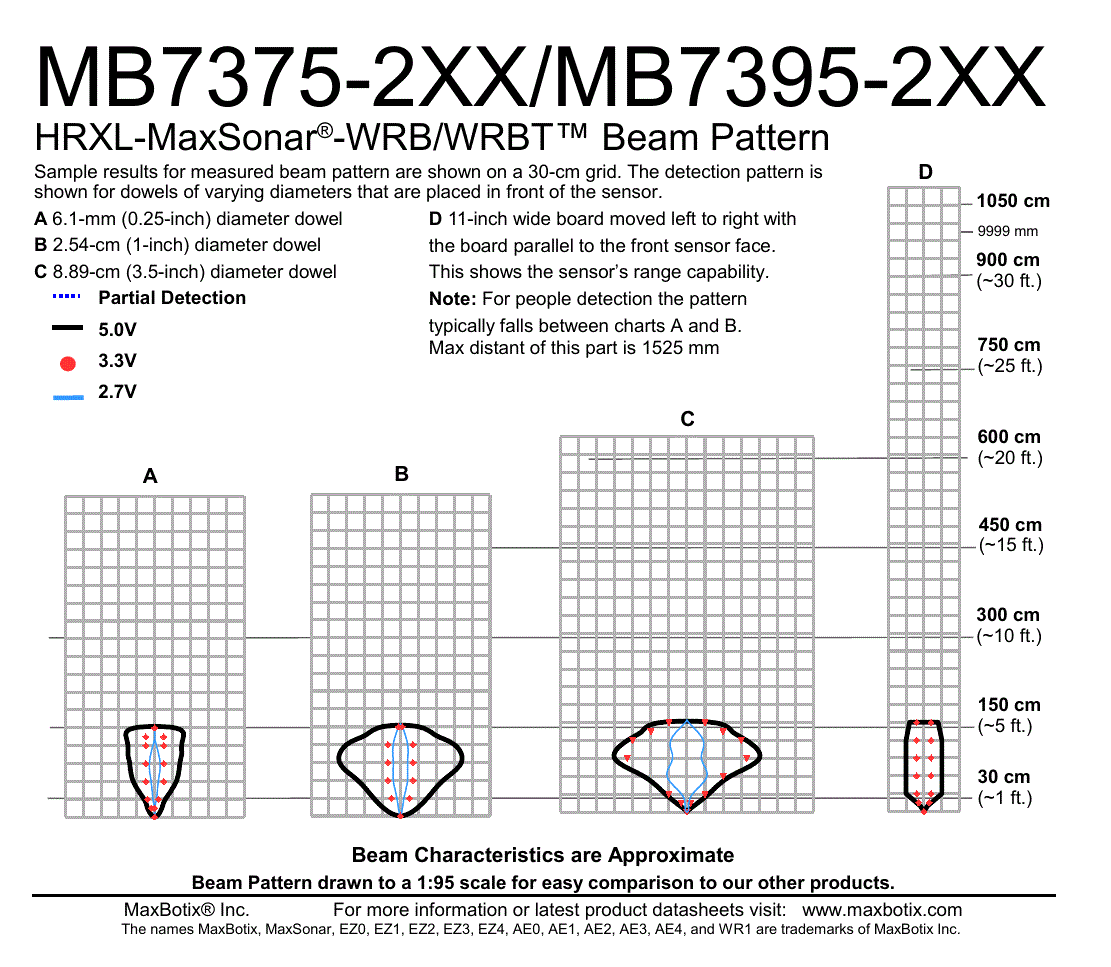

- Short, wide detection zone
- TTL Serial Output
- Maximum range of five feet (1525 mm)
Documentation and CAD files
Documents
| HRXL-MaxSonar-WR datasheet |
| Chaining Application Guide |
| RoHS Declaration of Conformity |
| CE Declaration of Conformity |
Chemical Compatibility
Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.
Email: techsupport@maxbotix.com
Product 3D Models
200 Housing (Compact Horn Housing)
500 Housing (1″ NPS Housing)
600 Housing (1″ BSPP Housing)
700 Housing (30mm 1.5 Housing)
Part Numbers
All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.
Active Part Numbers
Product Change Notifications Associated with MB7395 HRXL-MaxSonar-WRBT
PCN1102
MaxBotix is changing its manufacturing process for the F-Option. The method of creating an F-Option part was changed to improve the manufacturability and decrease lead times for F-Option parts
PCN1200
The color of any exposed epoxy will be black or gray, rather than only gray.
Recommended Accessories
-
Pin Header (90 Degree 7 Pin) Attached
View AccessoryConnector Header Through Hole, Right Angle 7 position 0.100″ (2.54mm)
-
Pin Connector (7 Pin) Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
Straight 7 Pin Connector Attached
View AccessoryConnector Header Through Hole 7 position 0.100″ (2.54mm)
-
-
-
MB7986 Voltage Regulator
View AccessoryThe voltage regulator is used to automatically regulate voltage inputs from 3V to 30V.
