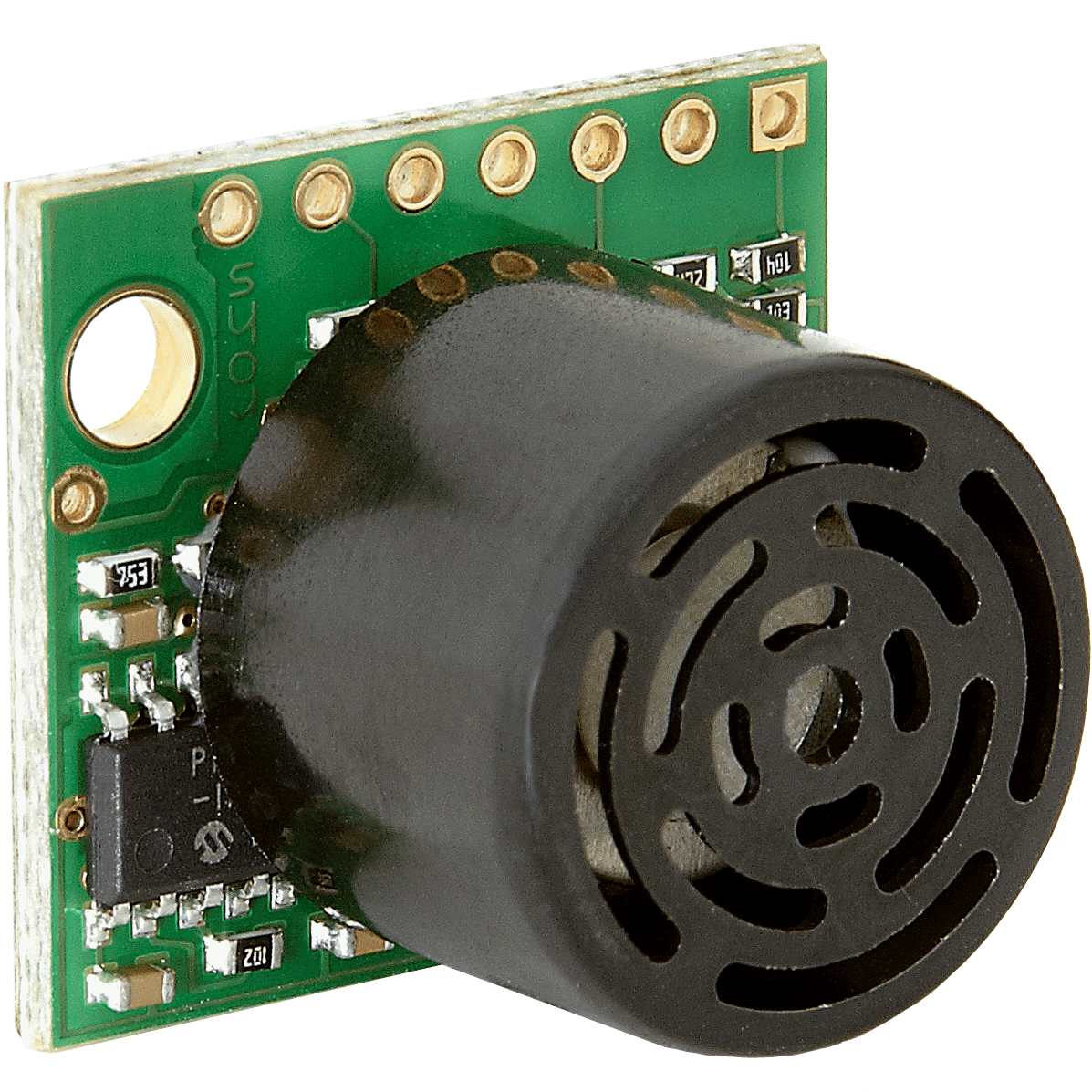

MB1030 LV-MaxSonar®-EZ3™

High Performance Ultrasonic Rangefinder


LV-EZ Ultrasonic Range Finder LV-EZ Ultrasonic Range Finder 5Pack LV-EZ Ultrasonic Range Finder 10Pack
LV-MaxSonar-EZ3 Each, $29.95
LV-MaxSonar-EZ3
5-Pack, $139.75
LV-MaxSonar-EZ3
10-Pack, $249.50

For larger quantities, please contact MaxBotix Inc. for pricing.

MB1030 Datasheet

MB1030 Ultrasonic Rangefinder Datasheet



Product Description

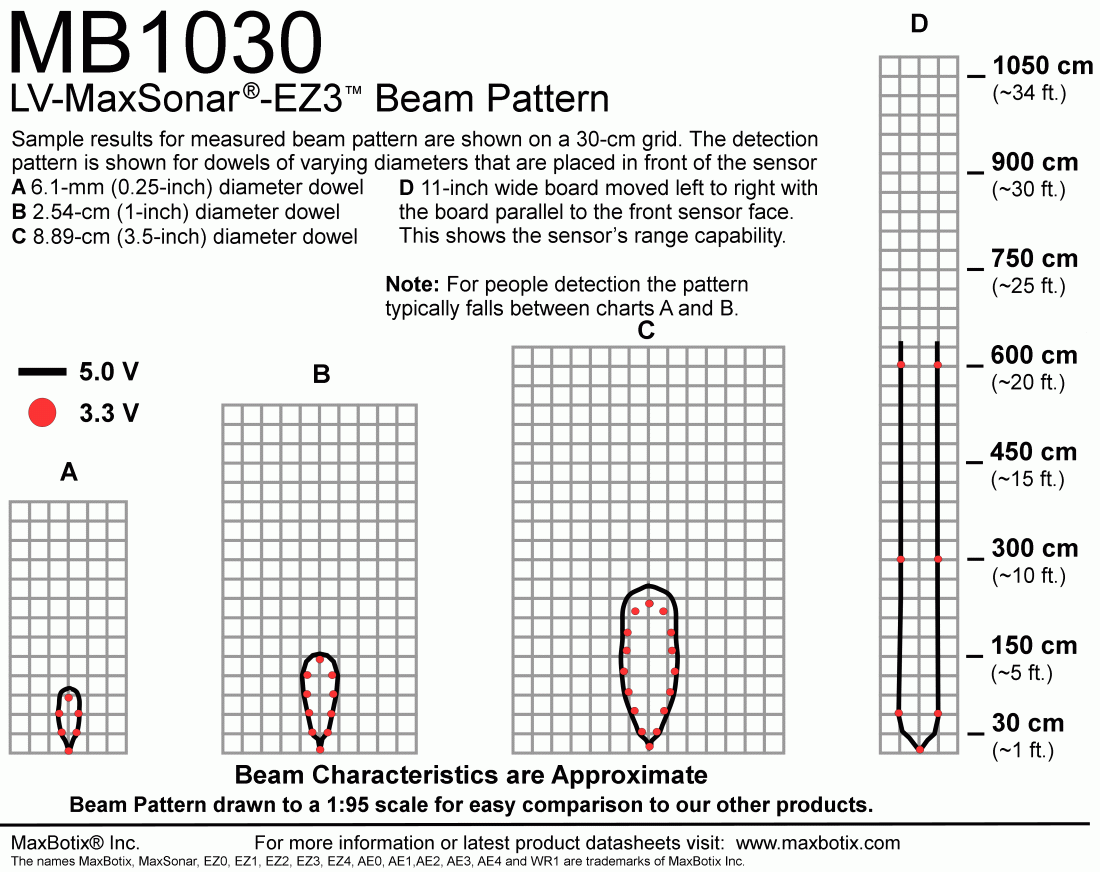

The LV‑MaxSonar‑EZ3 is a narrow beam sensor with good side object rejection. The LV‑MaxSonar‑EZ3 has slightly wider beam width than the MB1040 LV‑MaxSonar‑EZ4 which makes it a good choice for when the LV‑MaxSonar‑EZ4 does not have enough sensitivity for the application.

Component Overview

  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually No sensor dead zone, objects closer than 6 inches range as 6 inches
  • Resolution of 1 inch
  • Maximum Range of 254 inches (645 cm)
  • Operates from 2.5-5.5V
  • Low 2.0mA average current requirement
  • 20Hz reading rate
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Narrow beam and good side object rejection
  • Best for large object detection applications
  • Volume Pricing (25 or more units): Contact MaxBotix Inc.

Product Documentation

MB1030 Datasheet.........................LV-MaxSonar-EZ3-datasheet
Ultrasonic Sensor Selection Guide.....Ultrasonic Sensor Selection Guide
LV Chaining Application Notes..........LV AN Output Commanded Loop
LV Chaining Application Notes..........LV AN Output Constantly Looping
LV Chaining Application Notes..........LV AN Output Simultaneous Operation
Quick Start Guide..........................LV-MaxSonar-EZ1 Quick Start Guide

LV-MaxSonar-EZ1 QuickStart Guide
Author: CJM & TEB     Date: 01/06/2012
LV-MaxSonar-EZ1 Quick Start Guide
Welcome FRC 2012!

This step by step guide walks you through the initial setup of a MB1010 LV‑MaxSonar‑EZ1 Ultrasonic Sensor.
Sensor Noise Tolerance
Author: Scott Wielenberg  Date: 11/21/2011
Sensor Noise
MaxBotix Inc. Recently performed an acoustic noise tolerance test on the LV-MaxSonar-EZ and XL-MaxSonar-EZ products.
The test was setup to evaluate the real world use of the sensors, to allow comparison between MaxBotix Inc., sensors. A noise source was used that produced a pulsating acoustic source of 30KHz to 50KHz sweep at a 60Hz rate. This caused large spikes of noise within the sensor frequency band.
