XL-MaxSonar-WR family of Ultrasonic Sensors from MaxBotix Inc.

MB7092
XL-MaxSonar®-WRMA™

High Performance Ultrasonic Precision Rangefinder

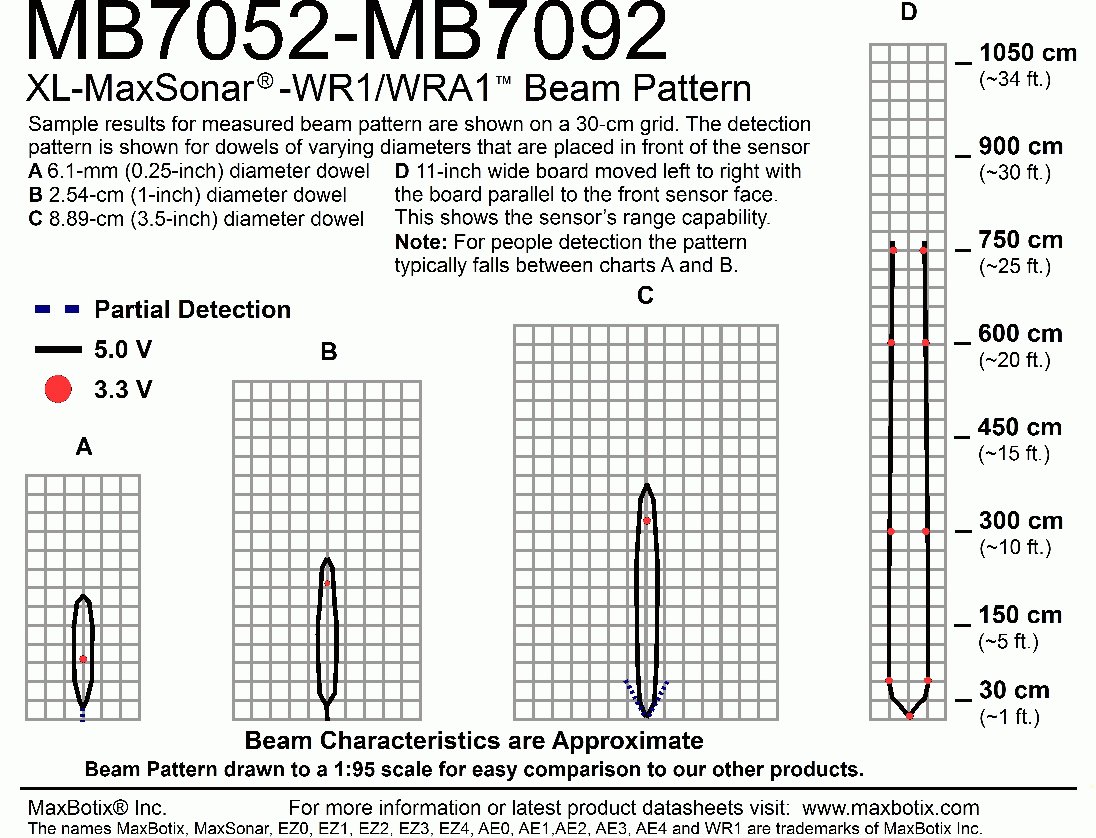

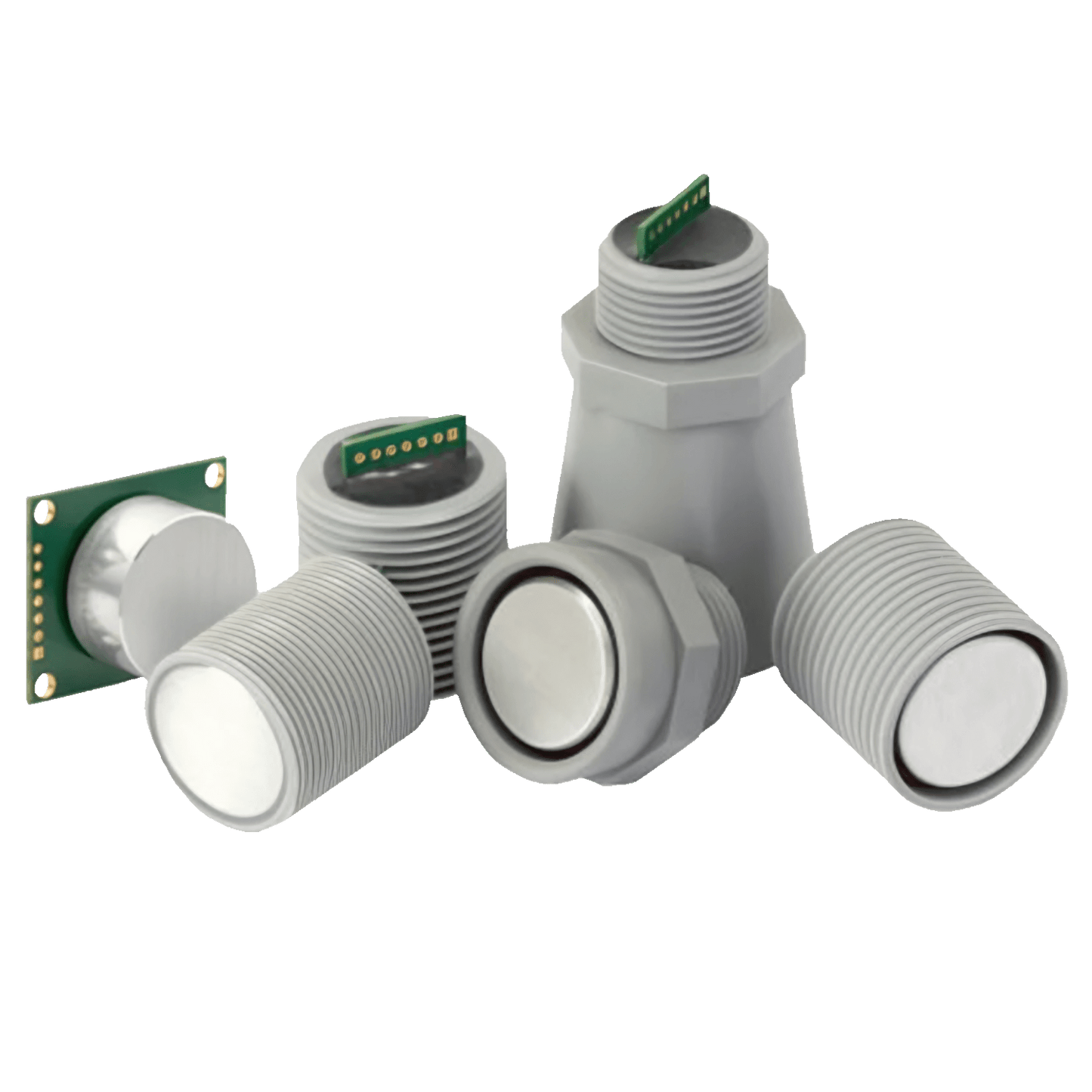

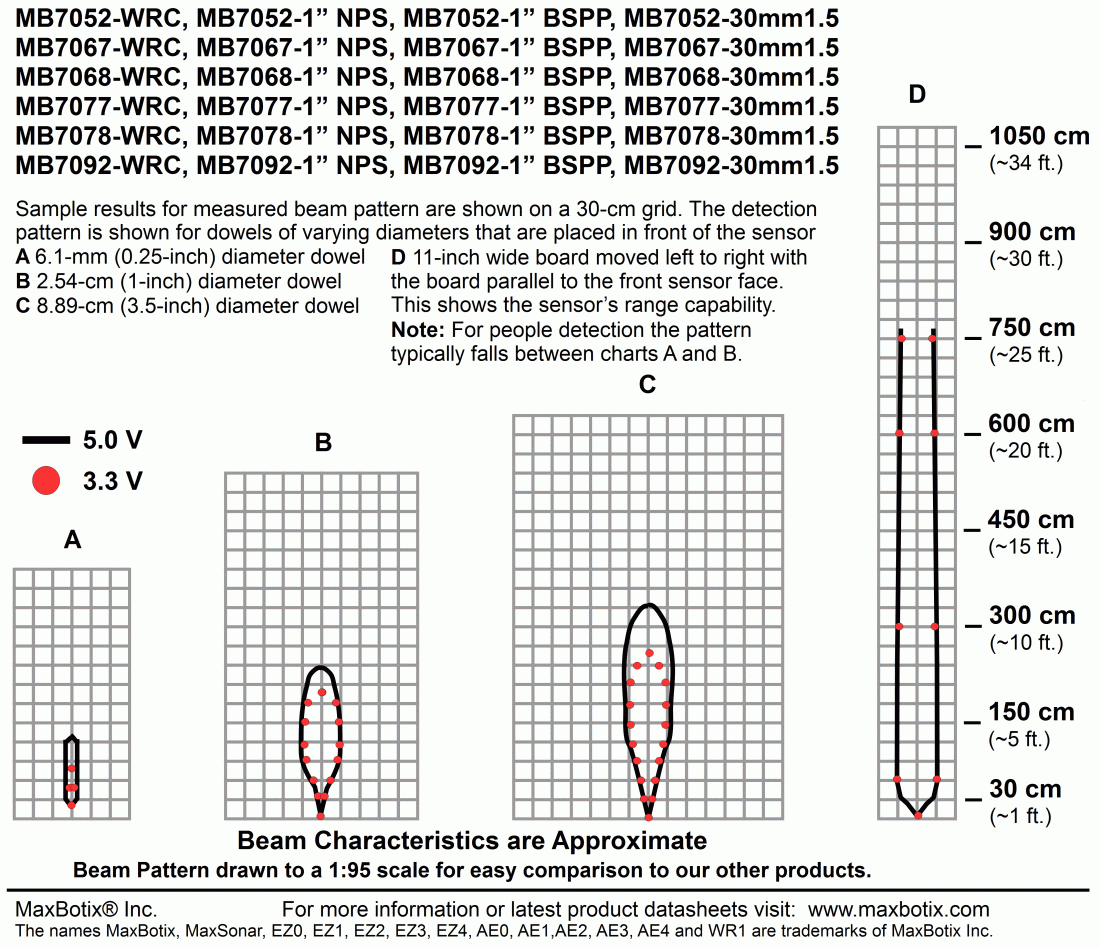

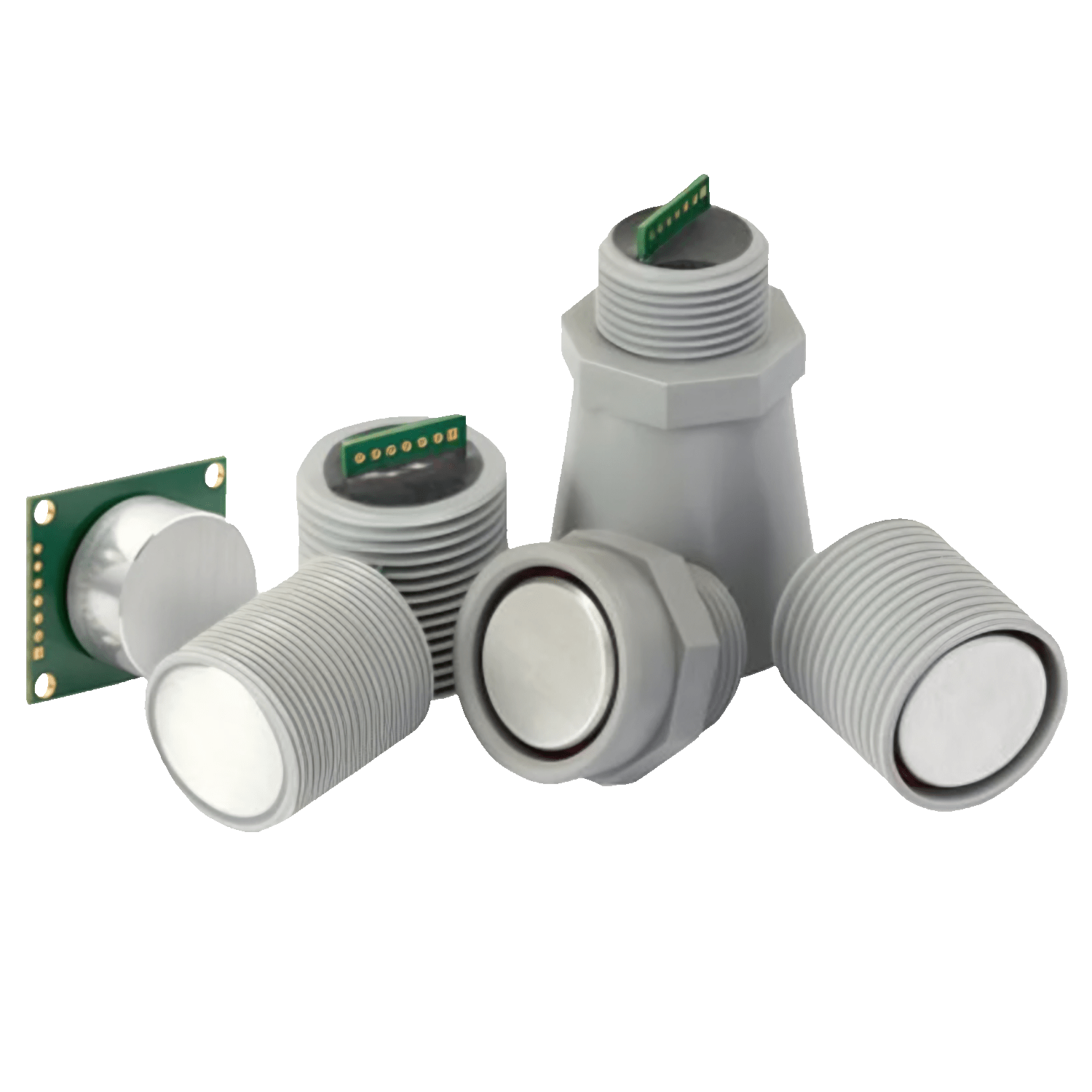

Packaging Options


XL-MaxSonar-WR Ultrasonic Sensor

3/4" NPS WR Housing

Lead time may vary for larger orders

MB7092
Each, $99.95
MB7092
5-Pack, $474.75
MB7092
10-Pack, $899.50
MB7092
50-Pack, $3,800.50
MB7092
100-Pack, $6,857.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

XL-MaxSonar-WRC Ultrasonic Rangefinders

3/4" NPS WRC Housing

Lead time may vary for larger orders

MB7092 - Compact
Each, $99.95
MB7092 - Compact
5-Pack, 474.75
MB7092 - Compact
10-Pack, $899.50
MB7092 - Compact
50-Pack, $3,800.50
MB7092 - Compact
100-Pack, $6,857.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

XL-MaxSonar-WRUC Ultrasonic Sensor

Ultra Compact Housing

Lead time may vary for larger orders

MB7092
UltraCompact
Each, $99.95
MB7092
UltraCompact
5-Pack, $474.75
MB7092
UltraCompact
10-Pack, $899.50
MB7092
UltraCompact
50-Pack, $3,800.50
MB7092
UltraCompact
100-Pack, $6,857.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

XL-MaxSonar-WRC Pipe thread option Ultrasonic Rangefinders

1" NPS Housing

This housing option may take up to 2 weeks
Lead time may vary for larger orders

MB7092 - 1" NPS
Each, $99.95
MB7092 - 1" NPS
5-Pack, $474.75
MB7092 - 1" NPS
10-Pack, $899.50
MB7092 - 1" NPS
50-Pack, $3,875.50
MB7092 - 1" NPS
100-Pack, $7,007.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

XL-MaxSonar-WRC Pipe thread option Ultrasonic Rangefinders

1" BSPP Housing

This housing option may take up to 2 weeks
Lead time may vary for larger orders

MB7092 - 1" BSPP
Each, $99.95
MB7092 - 1" BSPP
5-Pack, $474.75
MB7092 - 1" BSPP
10-Pack, $899.50
MB7092 - 1" BSPP
50-Pack, $3,875.50
MB7092 - 1" BSPP
100-Pack, $7,007.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

XL-MaxSonar-WRC Pipe thread option Ultrasonic Rangefinders

30MM 1.5 Housing

This housing option may take up to 2 weeks
Lead time may vary for larger orders

MB7092 - 30mm1.5
Each, $99.95
MB7092 - 30mm1.5
5-Pack, $474.75
MB7092 - 30mm1.5
10-Pack, $899.50
MB7092 - 30mm1.5
50-Pack, $3,950.50
MB7092 - 30mm1.5
100-Pack, $7,157.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

Product Description

The XL-MaxSonar-WRMA1 ignores smaller targets and only reports the range to target with the largest acoustic return. This is our most advanced weather resistant sensor designed for target detection and ranging outdoors or in tank or bin applications.

The weather resistant XL-MaxSonar-WRMA1 is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

High output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long range detection zones.

MB7052 is the pulse width output version of this sensor.
MB7070 is the standard version of this sensor.

Models with additional chemical resistance are available

The F-Option design modification provides our weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option when ordering.

Product Specifications


  • Resolution of 1 cm
  • 10Hz read rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 select sensor outputs: Analog Voltage, Serial, Analog Envelope
  • Operates from 3.0-5.5V
  • Low 3.4mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 200,000+ Hours Mean Time Between Failure
  • Weather Resistant (IP67), optional Chemical Resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4" National Pipe Thread Straight)
  • Our advanced weather resistant, ultrasonic sensor
  • Additional stability filter rejects occasional anomalous readings
  • Detects the largest signal return in the field of view
  • Uses the complete dynamic range of the sensor, if no large targets are present the sensor will select the next smallest target in view
  • Can be used to range large objects behind small obstructions
  • Analog envelope output for easy troubleshooting and signal processing
  • Maximum range of 765 cm (300 inches)
  • Long range, narrow detection zone
  • Volume Pricing (100 or more units): Contact MaxBotix Inc.

Product Documentation



Documents and Downloads


MB7092 Datasheet XL-MaxSonar-WRMA1-datasheet
Sensor Selection GuideSensor Selection Guide
XLWR Chaining NotesXL-MaxSonar-WR Chaining
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip


Product 3D Models


Full Horn Housing

Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part

Compact Horn Housing

Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part

Ultra Compact

Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part


Ultra-Compact Horn Models


Full Horn Exterior Mounted Housing

Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part

Full Horn Interior Flush Mounted Housing

Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part

Compact Horn Exterior Mounted Housing

Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part

Compact Horn Interior Flush Mounted Housing

Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part
