MB7062 XL-MaxSonar-WR1

MB7062 XL-MaxSonar-WR1

SKU:MB7062-100

Ranges from 20cm to 765cm with a 10Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to closest target. Uses a stability filter.

Regular price $99.95 USD
Regular price Sale price $99.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Description

Features of the weather-resistant MB7062, XL-MaxSonar-WR1, include centimeter resolution, short to long-distance detection, range information from 20cm to 765cm for the nearest detectable target, a 10Hz read rate, and various output options: pulse-width, analog voltage, and RS232 serial.

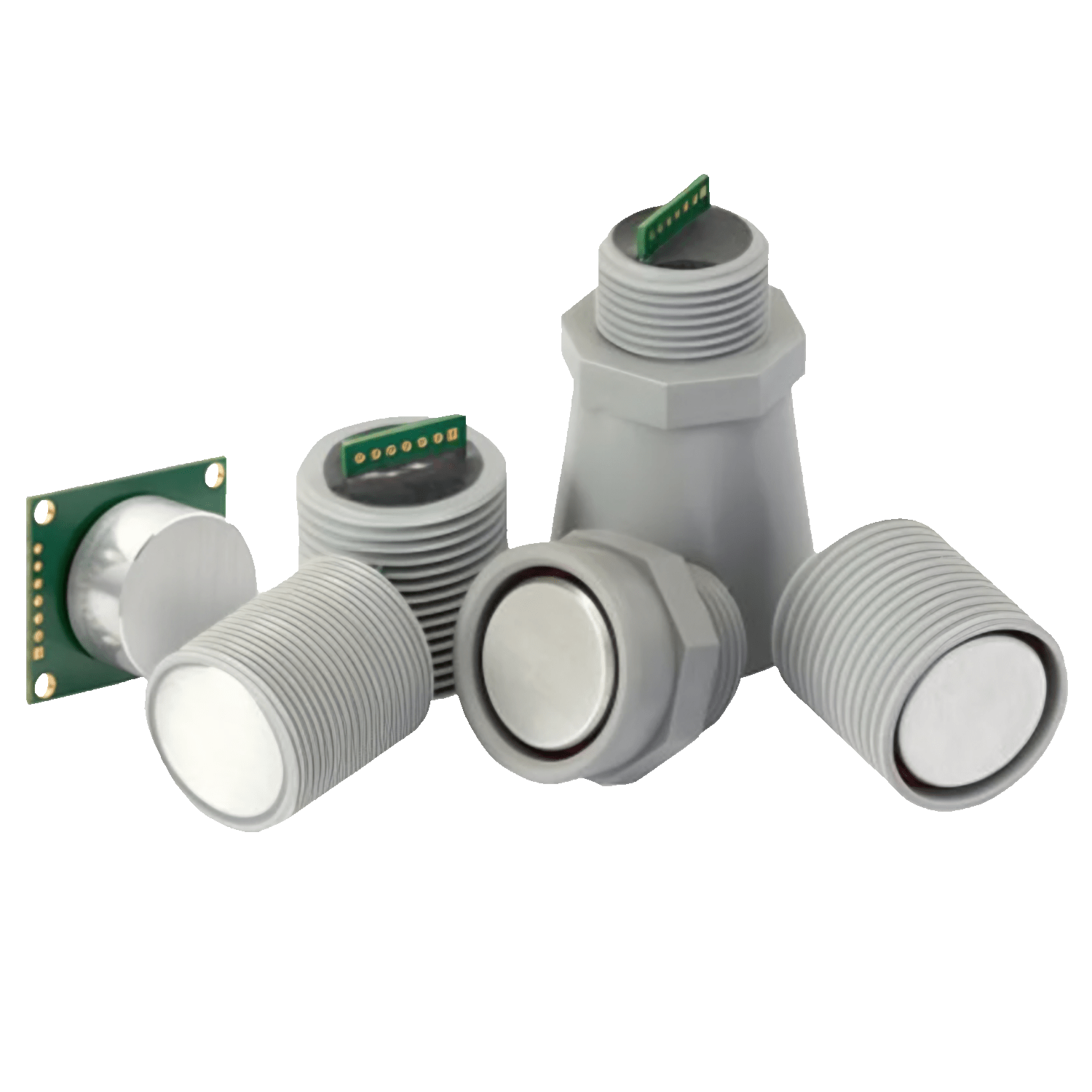

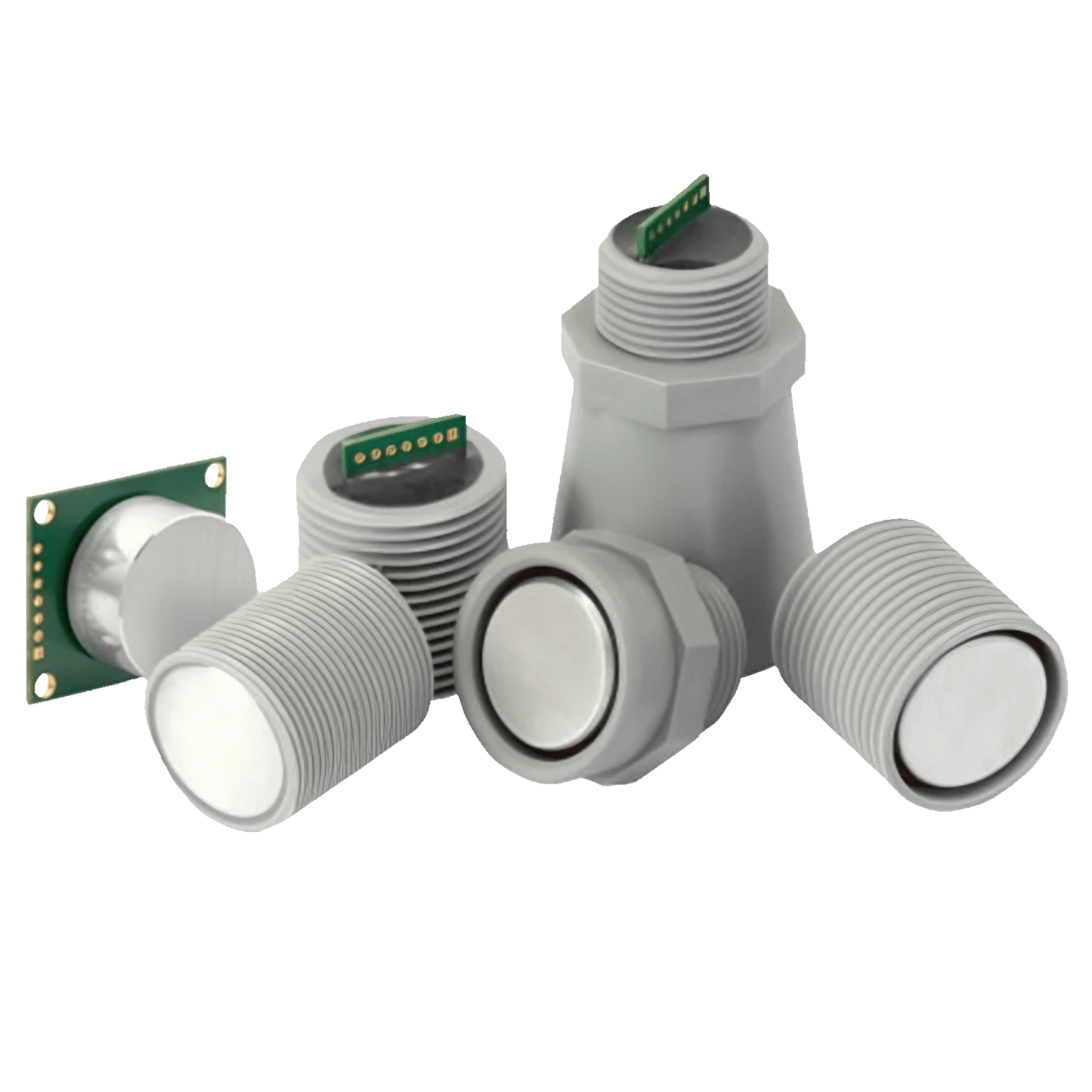

The MB7062 from the XL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).

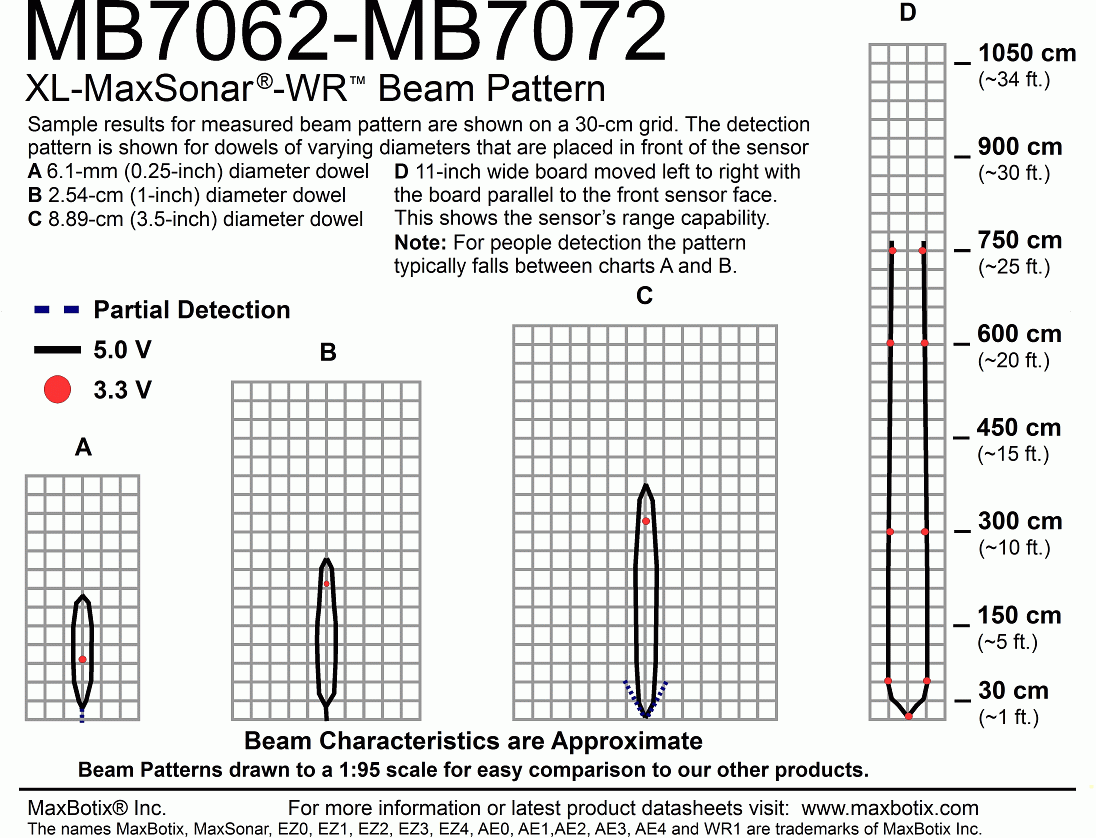

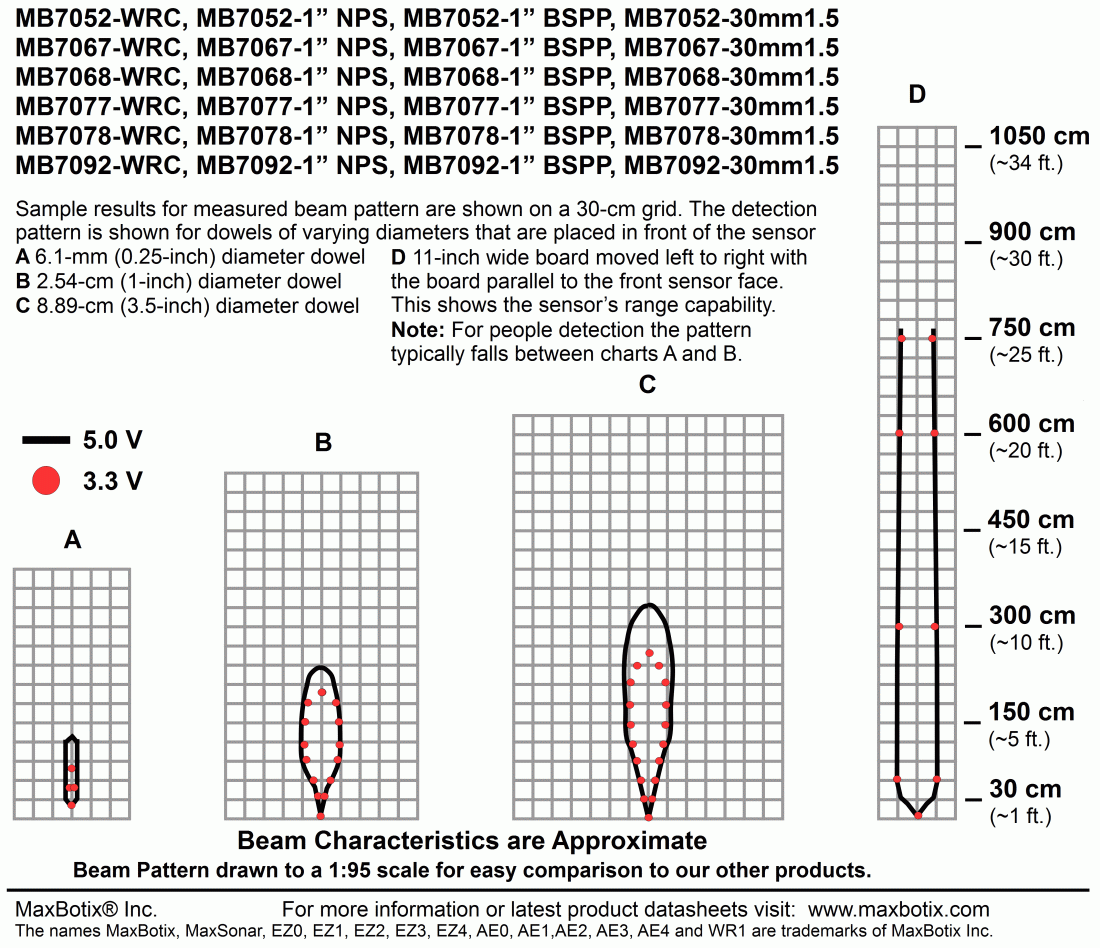

The XL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

The MB7062 is designed with a stability filter to help prevent sudden large changes in range readings.

In addition, the MB7062 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.


Variations on this sensor model

MB7072 is the analog envelope version of this sensor.
MB7060 is the base level version of this sensor.


Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.

Specs

  • Resolution of 1 cm
  • 10Hz read rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 select sensor outputs: Analog Voltage, Serial, Pulse Width
  • Operates from 3.0-5.5V
  • Low 3.4mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 200,000+ Hours Mean Time Between Failure
  • Weather Resistant (IP67), optional Chemical Resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4″ National Pipe Thread Straight)
  • Additional stability filter rejects occasional anomalous readings
  • Maximum range of 765 cm (300 inches)
  • Long range, narrow detection zone

Documentation and CAD files

Documents

Chemical Compatibility

Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.

Email: techsupport@maxbotix.com

Product 3D Models

100 Housing (Full Horn Housing)

200 Housing (Compact Horn Housing)

300/400 Housing (Ultra Compact Horn Housing)

500 Housing (1″ NPS Housing)

600 Housing (1″ BSPP Housing)

700 Housing (30mm 1.5 Housing)


Housing 3D Models

Full Horn Interior Flush Mounted Housing
Full Horn Exterior Mounted Housing
Compact Horn Exterior Mounted Housing
Compact Horn Interior Flush Mounted Housing

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB7062-100
MB7062-10A
MB7062-110
MB7062-11A
MB7062-120
MB7062-12A
MB7062-130
MB7062-13A
MB7062-200
MB7062-20A
MB7062-210
MB7062-21A
MB7062-220
MB7062-22A
MB7062-230
MB7062-23A
MB7062-300
MB7062-320
MB7062-400
MB7062-40A
MB7062-410
MB7062-41A
MB7062-420
MB7062-42A
MB7062-430
MB7062-43A
MB7062-500
MB7062-50A
MB7062-510
MB7062-51A
MB7062-520
MB7062-52A
MB7062-530
MB7062-53A
MB7062-600
MB7062-60A
MB7062-610
MB7062-61A
MB7062-620
MB7062-62A
MB7062-630
MB7062-63A
MB7062-700
MB7062-70A
MB7062-710
MB7062-71A
MB7062-720
MB7062-72A
MB7062-730
MB7062-73A

Product Change Notifications Associated with MB7062 XL-MaxSonar-WR1

PCN1102

MaxBotix is changing its manufacturing process for the F-Option.  The method of creating an F-Option part was changed to improve the manufacturability and decrease lead times for F-Option parts

PCN1200

The color of any exposed epoxy will be black or gray, rather than only gray.
