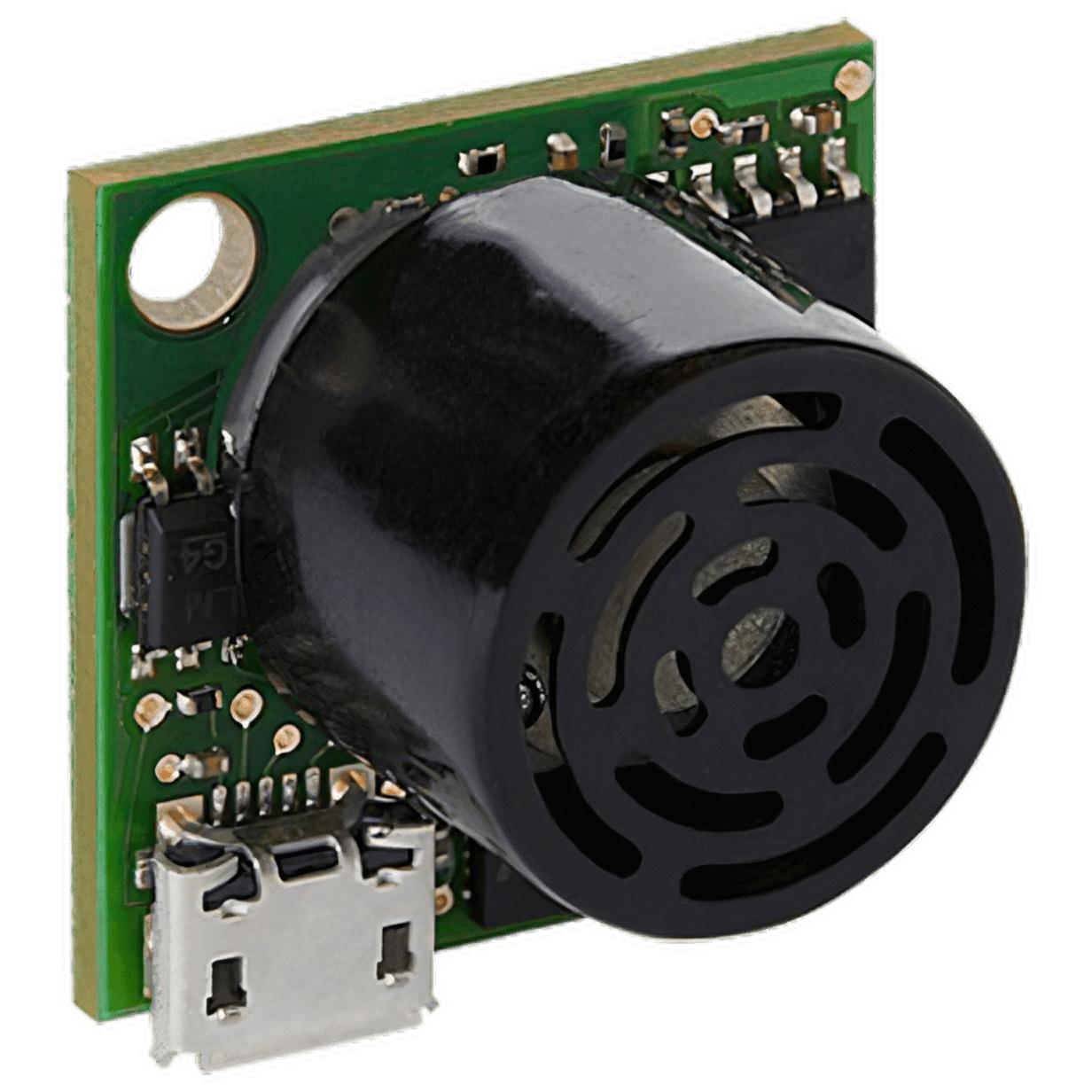

HRUSB-MaxSonar-EZ Ultrasonic Range Finder

MB1403
HRUSB-MaxSonar®-EZ0™

USB High Performance Ultrasonic Precision Rangefinders

RoHs Compliant CE Declaration of Conformity


Buy Now Options


HRUSB-MaxSonar-EZ Ultrasonic Proximity Sensor
Lead time may vary for larger orders
MB1403
Each, $49.95
MB1403
5-Pack, $239.75
MB1403
10-Pack, $449.50
MB1403
50-Pack, $1,721.83
MB1403
100-Pack, $3,322.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

For larger quantities, please contact MaxBotix Inc. for pricing.


Product Description

The HRUSB‑MaxSonar‑EZ0 has the widest and most sensitive beam pattern of any unit from HRUSB‑MaxSonar‑EZ sensor line. This makes the HRUSB‑MaxSonar‑EZ0 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.



Product Specifications


  • USB interface
  • Resolution of 1 mm
  • Multi-sensor operation
  • ~250mS between range readings
  • Maximum Range of 5000 mm (196 inches)
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Virtually no sensor dead zone, objects closer than 30 cm range as 30 cm
  • Small, light weight module
  • Designed for easy integration into your project or product

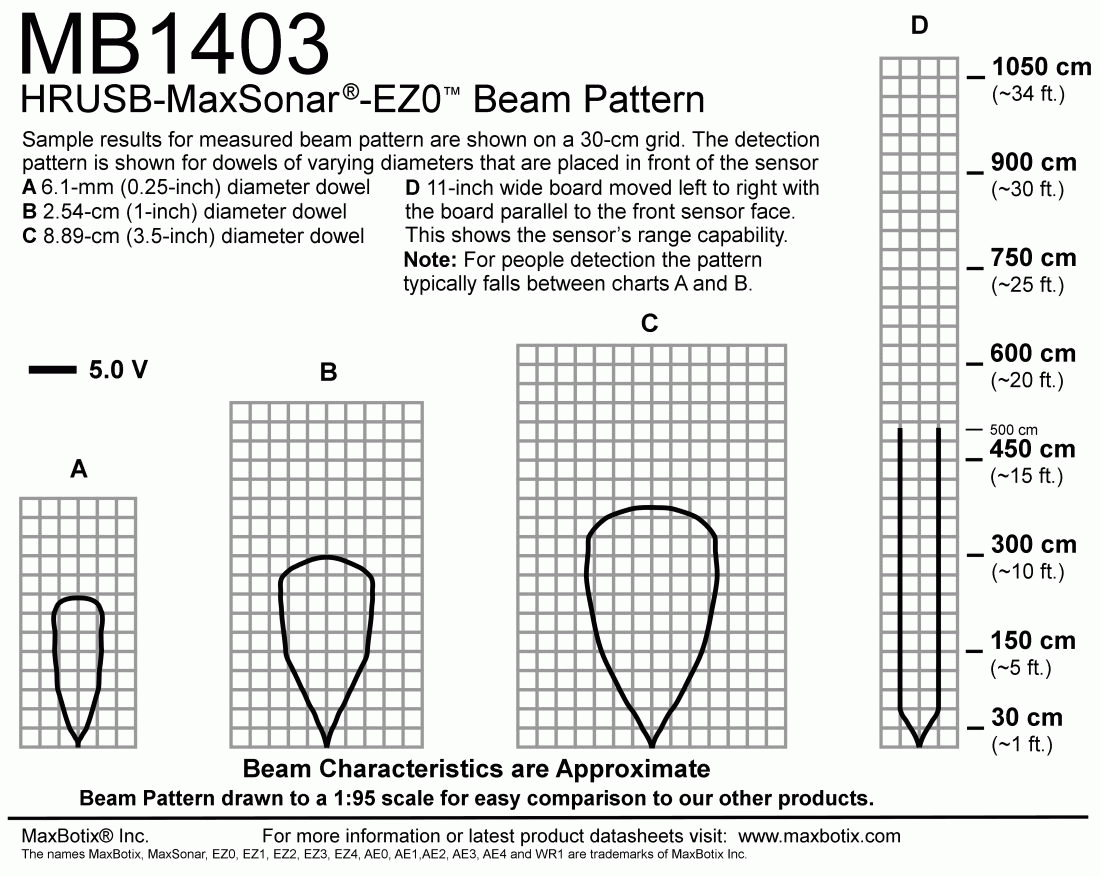

  • Widest beam of the HRUSB-MaxSonar-EZ sensors
  • Great for people detection applications
  • Quote Request Form: For orders greater than 100 sensors


Product Documentation

Documents and Downloads


MB1403 Datasheet HRUSB-MaxSonar-EZ0-datasheet
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip

Product 3D Models

Key ShotIGES FileACIS 7.0
File
Solid Works Part
STL FileSTEP FileParaSolid
Part
