XL-MaxSonar-EZ/AE Ultrasonic Range Finder

MB1261
XL-MaxSonar®-EZL1™

High Performance Ultrasonic Rangefinder

RoHs Compliant CE Declaration of Conformity

MB1261 Datasheet

MB1261 Ultrasonic Rangefinder Datasheet


Buy Now Options


XL-MaxSonar-EZ High Performance Ultrasonic Sensor
Lead time may vary for larger orders
MB1261
Each, $54.95
MB1261
5-Pack, $239.75
MB1261
10-Pack, $449.50
MB1261
50-Pack, $1,825.83
MB1261
100-Pack, $3,481.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

For larger quantities, please contact MaxBotix Inc. for pricing.


Product Description

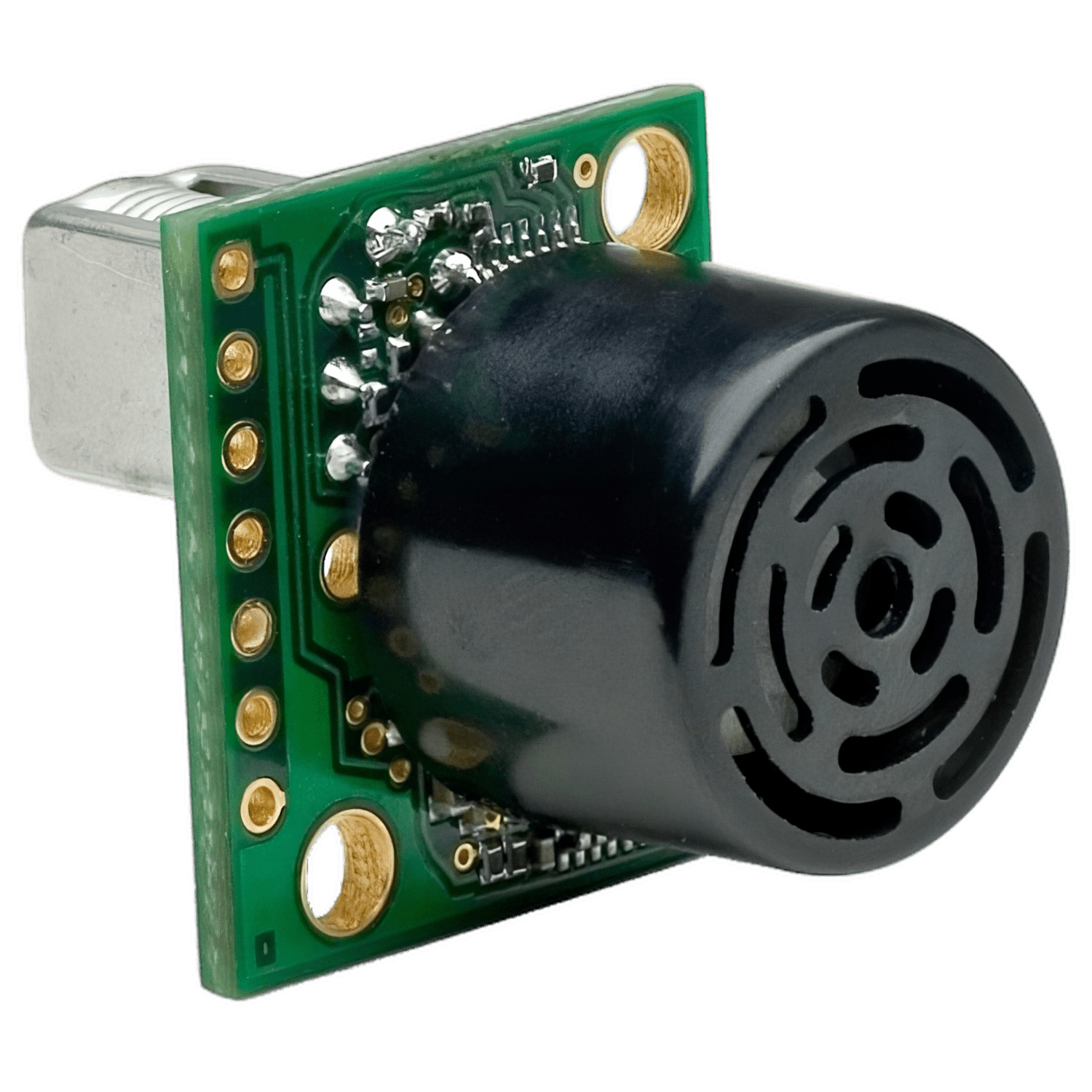

The XL‑MaxSonar‑EZL1 offers a lower hardware gain and a smaller, narrower detection zone than the MB1260. This makes the XL‑MaxSonar‑EZL1 a great choice for people detection applications. In addition to detecting small objects, the XL‑MaxSonar‑EZL1 can also detect large targets to the extended range of 1068 cm (420 inches).

The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar‑EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.

The MB1210 is a version of this sensor with shorter maximum range.



Product Specifications


  • Resolution of 1 cm
  • 10Hz reading rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
  • Virtually no dead zone, objects closer than 25 cm range as 25 cm
  • Operates from 3.3-5.5V
  • Low 3.4mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from 0˚C to +65˚C (32˚F to +149˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 200,000+ Hours Mean Time Between Failure

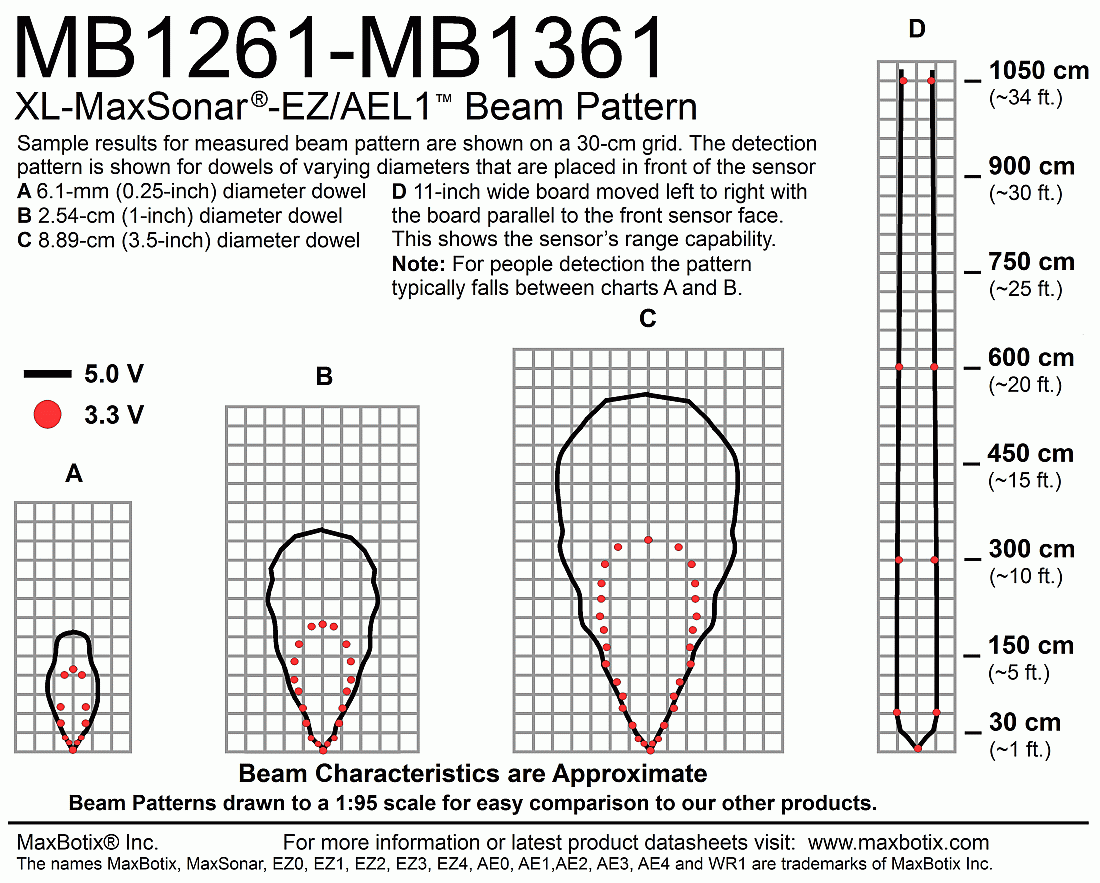

  • Wide and sensitive beam, detects small targets to significant distances
  • Maximum range of 1068 cm (420 inches)
  • Hardware gain of 2000
  • Long range, medium detection zone for small targets
  • Quote Request Form: For orders greater than 100 sensors


Product Documentation

Documents and Downloads


MB1261 Datasheet XL-MaxSonar-EZL1-datasheet
XL ChainingChaining Application Guide
Quick Start GuideMaxSonar Quick Start Guide
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip

Product 3D Models

These 3D model files will download with a different product name.

Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part
