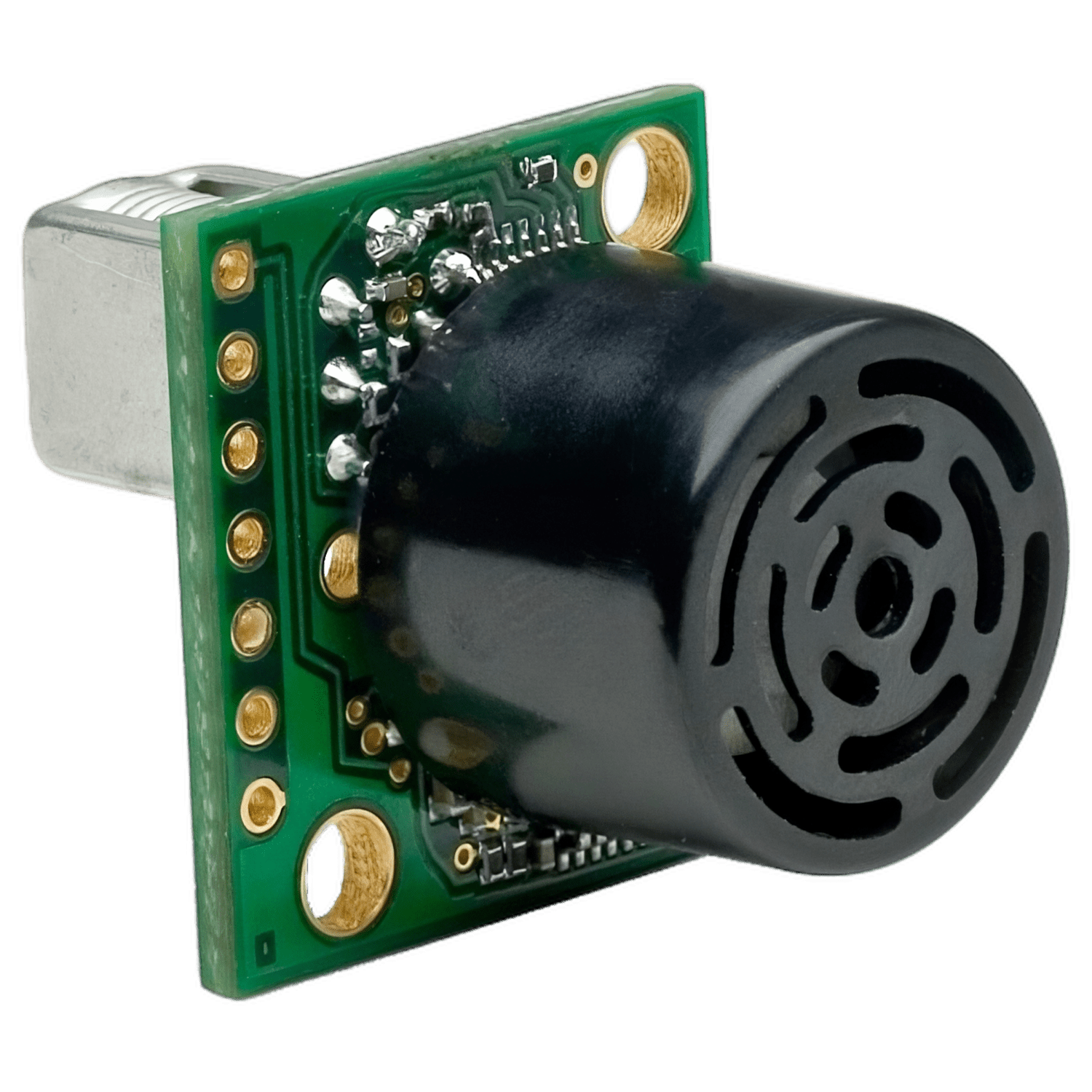

XL-MaxSonar-EZ/AE Ultrasonic Range Finder

MB1220
XL-MaxSonar®-EZ2™

High Performance Ultrasonic Rangefinder

RoHs Compliant CE Declaration of Conformity

MB1220 Datasheet

MB1210 Ultrasonic Rangefinder Datasheet


Buy Now Options


XL-MaxSonar-EZ High Performance Ultrasonic Sensor
Lead time may vary for larger orders
MB1220
Each, $39.95
MB1220
5-Pack, $174.75
MB1220
10-Pack, $299.50
MB1220
50-Pack, $1,326.83
MB1220
100-Pack, $2,531.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

For larger quantities, please contact MaxBotix Inc. for pricing.


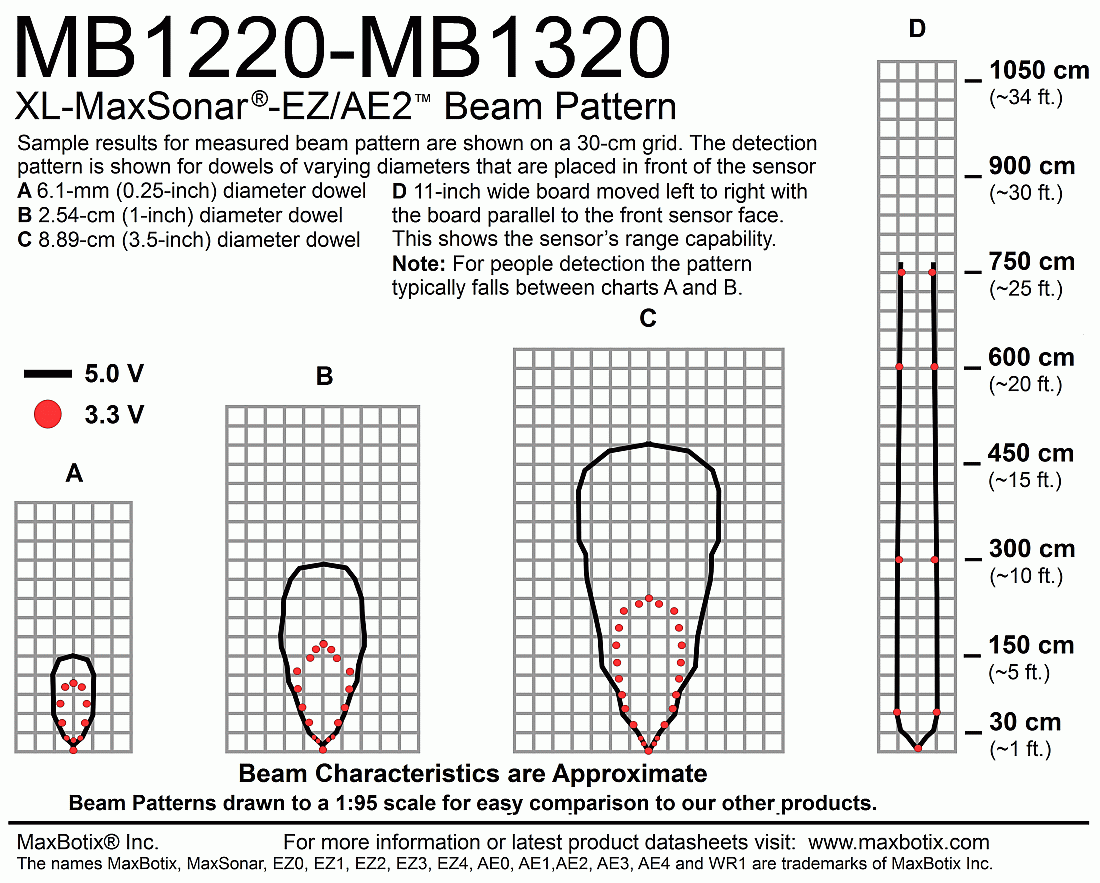

Product Description

The XL‑MaxSonar‑EZ2 is our most recommended indoor sensor. It offers the best balance between wide or narrow beams and provides a good balance between small and large target detection. The XL-MaxSonar-EZ2 works for nearly all indoor applications including: people detection, large-target detection, long-range detection, applications requiring high noise tolerance.

The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar‑EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long range detection zone.



Product Specifications


  • Resolution of 1 cm
  • 10Hz reading rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
  • Virtually no dead zone, objects closer than 20 cm range as 20 cm
  • Operates from 3.3-5.5V
  • Low 3.4mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from 0˚C to +65˚C (32˚F to +149˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 200,000+ Hours Mean Time Between Failure
  • Balanced design gives both high sensitivity and noise tolerance
  • Our most recommended sensor from the XL-MaxSonar-EZ sensor line
  • Maximum range of 765 cm (300 inches)
  • Hardware gain of 1000
  • Medium range, medium detection zone for small targets
  • Quote Request Form: For orders greater than 100 sensors


Product Documentation

Documents and Downloads


MB1220 Datasheet XL-MaxSonar-EZ2-datasheet
XL ChainingChaining Application Guide
Quick Start GuideMaxSonar Quick Start Guide
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip

Product 3D Models

These 3D model files will download with a different product name.

Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part
