LV-MaxSonar-EZ Ultrasonic Range Finder

MB1040
LV-MaxSonar®-EZ4™

High Performance Ultrasonic Rangefinder

RoHs Compliant CE Declaration of Conformity

MB1040 Datasheet

MB1040 Ultrasonic Rangefinder Datasheet


Buy Now Options


LV-EZ Ultrasonic Range Finder
Lead time may vary for larger orders
MB1040
Each, $29.95
MB1040
5-Pack, $124.75
MB1040
10-Pack, $219.50
MB1040
50-Pack, $943.50
MB1040
100-Pack, $1,756.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

For larger quantities, please contact MaxBotix Inc. for pricing.


Product Description

The LV-MaxSonar-EZ4 is the narrowest beam width sensor that is also the least sensitive to side objects offered in the LV-MaxSonar-EZ sensor line. The LV-MaxSonar-EZ4 is an excellent choice when only larger objects need to be detected.



Product Specifications


  • Resolution of 1 inch
  • 20Hz reading rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
  • Maximum Range of 254 inches (645 cm)
  • Operates from 2.5-5.5V
  • Low 2.0mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product

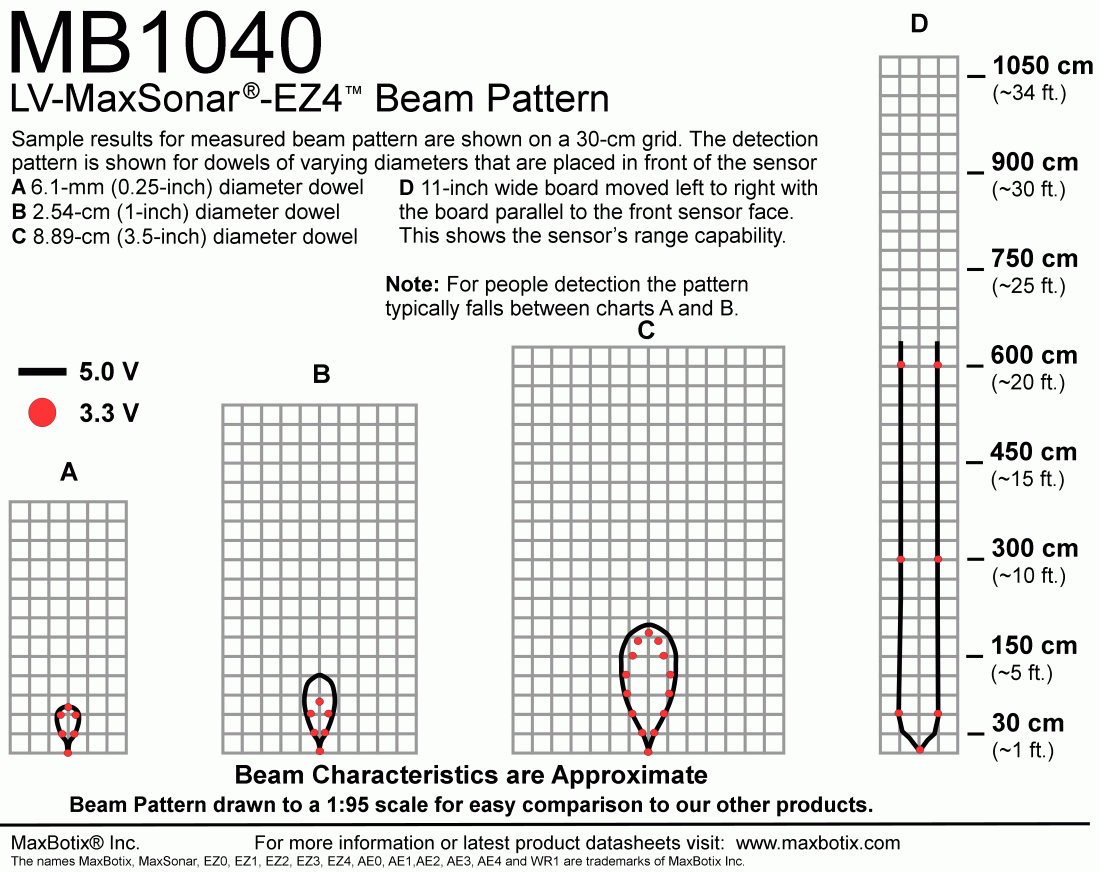

  • Narrowest beam of the LV-MaxSonar-EZ sensors
  • Best for large object detection applications
  • Quote Request Form: For orders greater than 100 sensors


Product Documentation

Documents and Downloads


MB1040 Datasheet LV-MaxSonar-EZ4-datasheet
LV ChainingChaining Application Guide
Quick Start GuideLV-MaxSonar-EZ Quick Start Guide
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip

Product 3D Models

Key ShotIGES FileACIS 7.0
File		Solid Works Part
STL FileSTEP FileParaSolid
Part
