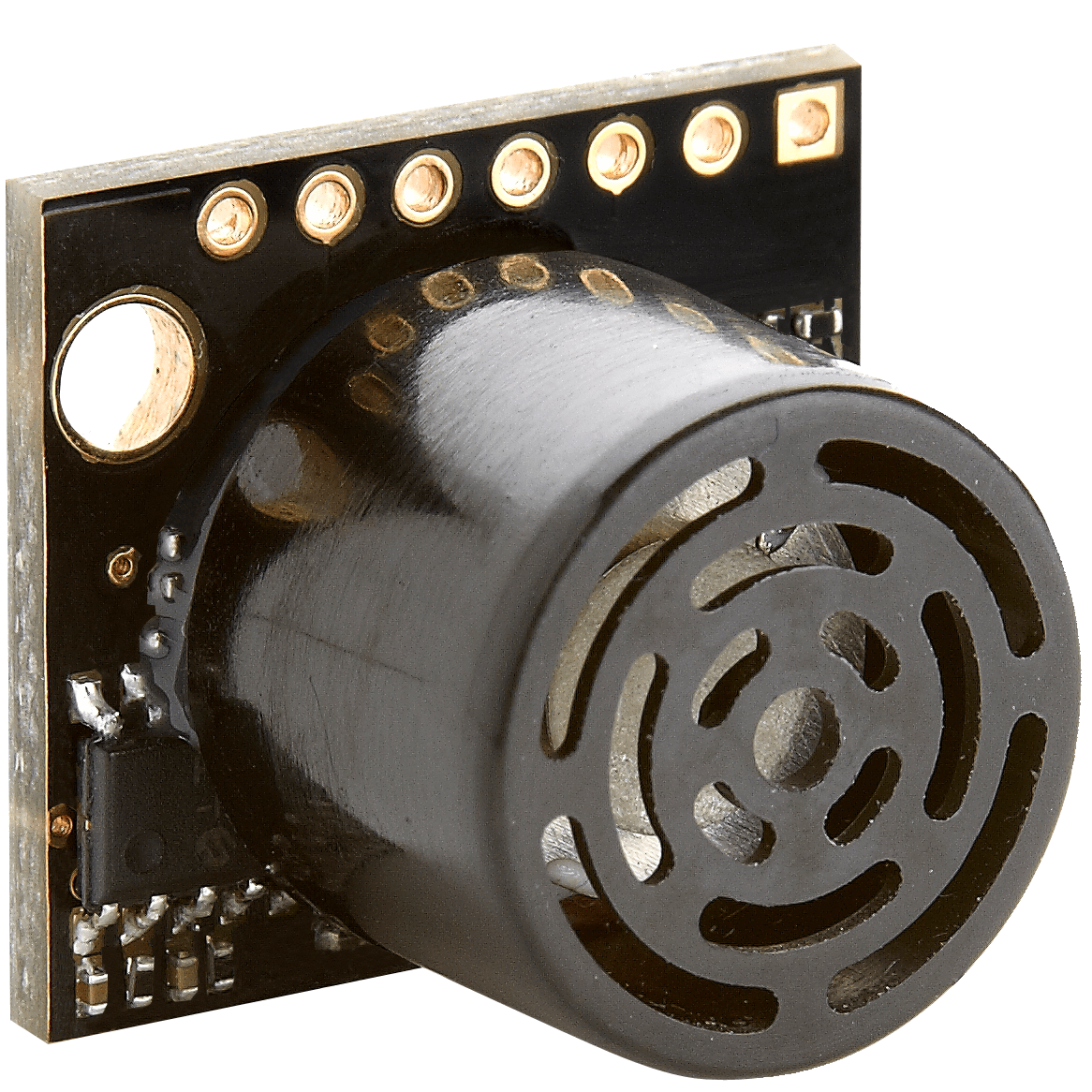

HRLV-EZ Ultrasonic Range Finder

MB1013
HRLV-MaxSonar®-EZ1™

High Performance Ultrasonic Rangefinder

RoHs Compliant CE Declaration of Conformity


Buy Now Options


HRLV-EZ Ultrasonic Range Finder
Lead time may vary for larger orders
MB1013
Each, $34.95
MB1013
5-Pack, $159.75
MB1013
10-Pack, $289.50
MB1013
50-Pack, $1,138.50
MB1013
100-Pack, $2,138.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

For larger quantities, please contact MaxBotix Inc. for pricing.


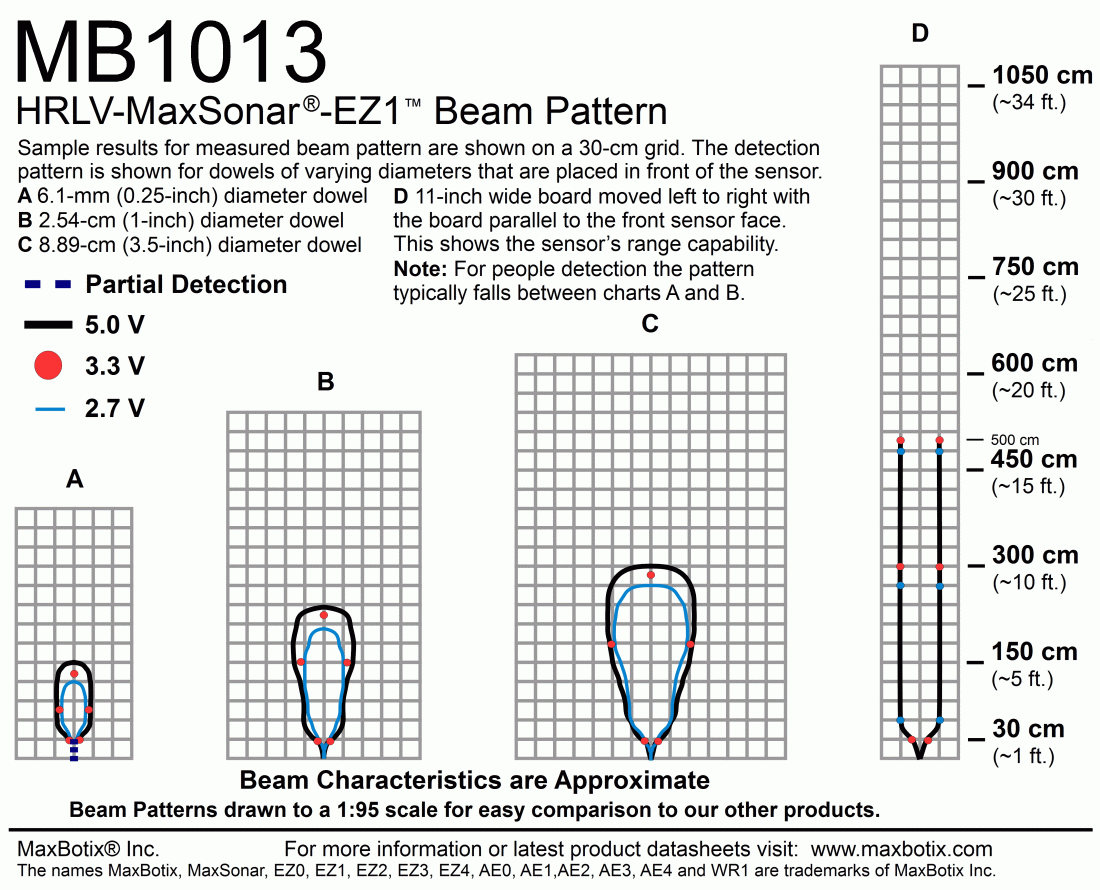

Product Description

The HRLV‑MaxSonar‑EZ1 is a great choice for use where sensitivity is needed along with side object rejection.

The HRLV‑MaxSonar‑EZ1 is a good, low-cost starting place for a customer not sure of which HRLV‑MaxSonar‑EZ sensor to use.



Product Specifications


  • Resolution of 1‑mm
  • 10Hz reading rate
  • Internal temperature compensation
  • Cost-effective solution where precision range-findings are needed
  • Sensor component allows users to lower the cost of their systems without sacrificing performance
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm will typically range as 30 cm
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • Operates from 2.5V-5.5V
  • Low 3.1mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -0C to +65C (+32F to +149F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Option external temperature compensation HR‑MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Great starting point for users unsure of which sensor to use
  • Quote Request Form: For orders greater than 100 sensors


Product Documentation

Documents and Downloads


MB1013 Datasheet HRLV-MaxSonar-EZ1-datasheet
HRLV ChainingChaining Application Guide
Quick Start GuideHRLV-MaxSonar-EZ Quick Start Guide
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip

Product 3D Models

Key ShotIGES FileACIS 7.0
File
Solid Works Part
STL FileSTEP FileParaSolid
Part
