HRXL-MaxSonar-WR family of Ultrasonic Sensors from MaxBotix Inc.

MB7589
SCXL-MaxSonar®-WRMT™

Self Cleaning Precision Ultrasonic Rangefinder

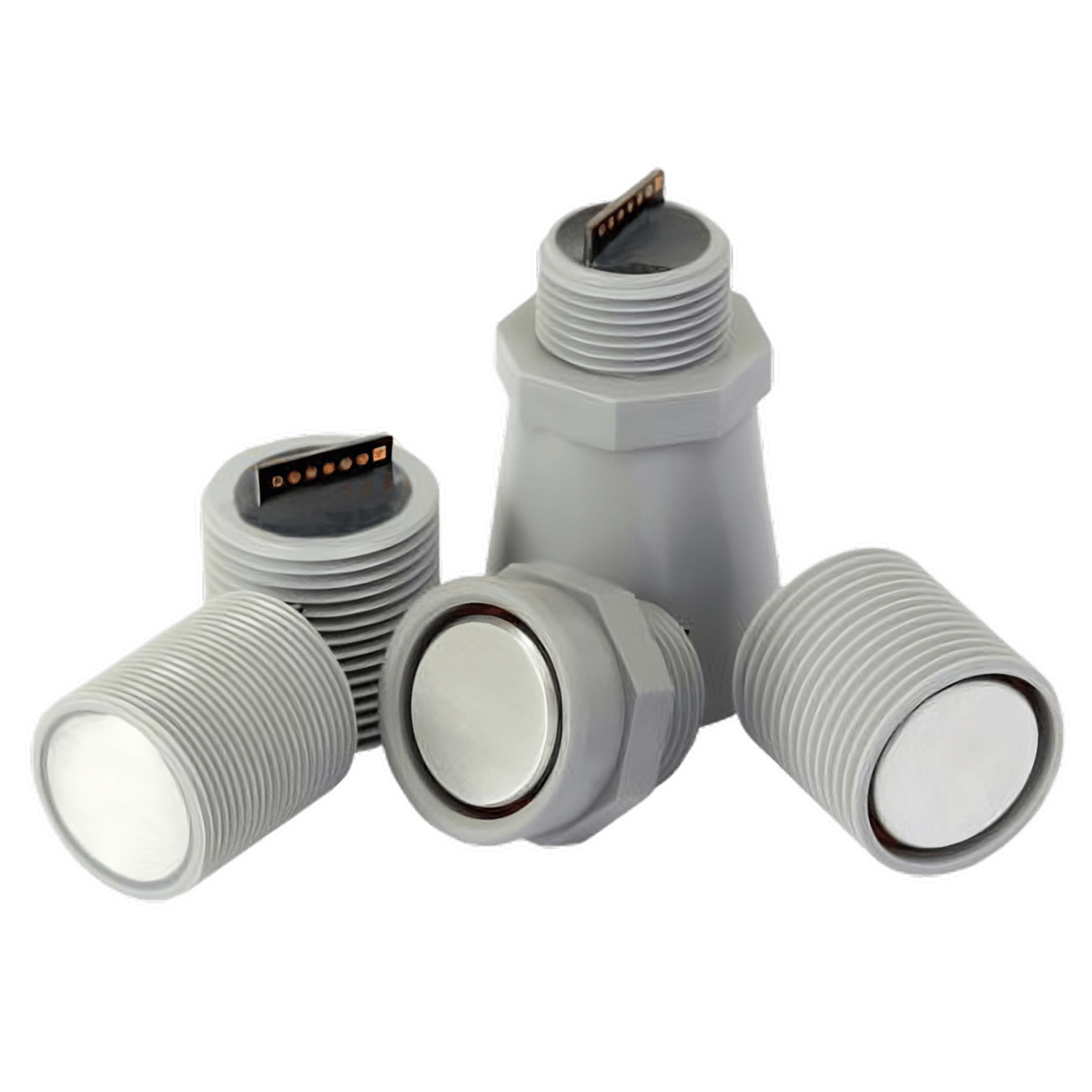

Packaging Options


HRXL-MaxSonar-WR Ultrasonic Sensor

3/4" NPS WR Housing

Lead time may vary for larger orders

MB7589
Each, $149.95
MB7589
5-Pack, $724.75
MB7589
10-Pack, $1,339.50
MB7589
50-Pack, $5,168.50
MB7589
100-Pack, $9,971.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

HRXL-MaxSonar-WR Ultrasonic Sensor

3/4" NPS WRC Housing

Lead time may vary for larger orders

MB7589 - Compact
Each, $149.95
MB7589 - Compact
5-Pack, $724.75
MB7589 - Compact
10-Pack, $1,339.50
MB7589 - Compact
50-Pack, $5,168.50
MB7589 - Compact
100-Pack, $9,971.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

HRXL-MaxSonar-WR Ultrasonic Sensor

1" NPS Housing

This housing option may take up to 2 weeks
Lead time may vary for larger orders

MB7589 - 1" NPS
Each, $149.95
MB7589 - 1" NPS
5-Pack, $724.75
MB7589 - 1" NPS
10-Pack $1,354.50
MB7589 - 1" NPS
50-Pack, $5,248.50
MB7589 - 1" NPS
100-Pack, $10,151.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

HRXL-MaxSonar-WR Ultrasonic Sensor

1" BSPP Housing

This housing option may take up to 2 weeks
Lead time may vary for larger orders

MB7589 - 1" BSPP
Each, $149.95
MB7589 - 1" BSPP
5-Pack, $724.75
MB7589 - 1" BSPP
10-Pack, $1,354.50
MB7589 - 1" BSPP
50-Pack, $5,248.50
MB7589 - 1" BSPP
100-Pack, $10,151.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

HRXL-MaxSonar-WR Ultrasonic Sensor

30MM 1.5 Housing

This housing option may take up to 2 weeks
Lead time may vary for larger orders

MB7589 - 30mm1.5
Each, $149.95
MB7589 - 30mm1.5
5-Pack, $724.75
MB7589 - 30mm1.5
10-Pack, $1,369.50
MB7589 - 30mm1.5
50-Pack, $5,328.50
MB7589 - 30mm1.5
100-Pack, $10,331.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

Product Description

The weather resistant SCXL-MaxSonar-WR self‑cleaning sensor is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

The MB7589 SCXL-MaxSonar-WRMT features a self-cleaning transducer to remove condensation and ice buildup when operating in cold conditions. The MB7589 SCXL-MaxSonar-WRMT self‑cleaning sensor is equipped with filtering firmware that is designed to ignore smaller targets and noise, and still report the range to the target that reflects the largest ultrasonic signal. (The sensor will also reject periodic noise, even noise that has a higher amplitude than the acoustic return from the target.) This gives users the flexibility to consistently range larger targets in the presence of clutter and noise. If the largest target is removed from the field of view, the SCXL-MaxSonar-WRMT self‑cleaning sensor will switch to the target that gives the next largest detectable return.

The Most-Likely filter is designed to report the distance to the largest acoustic return while ignoring smaller targets. When targets are of similar amplitude reflections, preference is given to the closest target.

MB7569 is the RS232 version of this sensor.

Models with additional chemical resistance are available

The F-Option design modification provides our weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option when ordering.

Product Specifications


  • Resolution of 1-mm
  • Self‑cleaning transducer
  • 0.58Hz read rate
  • Internal temperature compensation
  • 42kHz ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
  • Virtually no sensor dead zone, objects closer than 30cm typically range as 30cm
  • Operates from 2.7-5.5V
  • Low 68mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational temperature -40°C to +65°C (-40°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, and ambient noise)
  • Firmware filtering for excellent noise tolerance and clutter rejection
  • Weather resistant (IP67), optional chemical resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

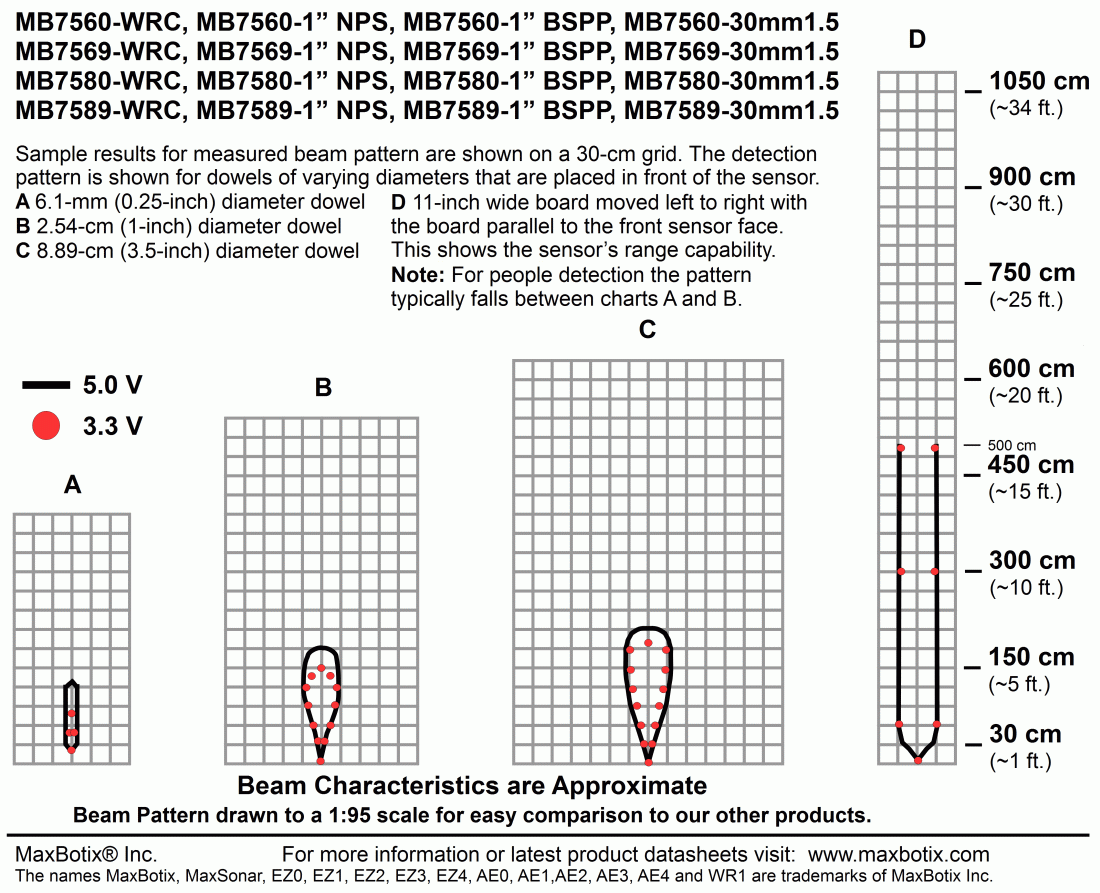

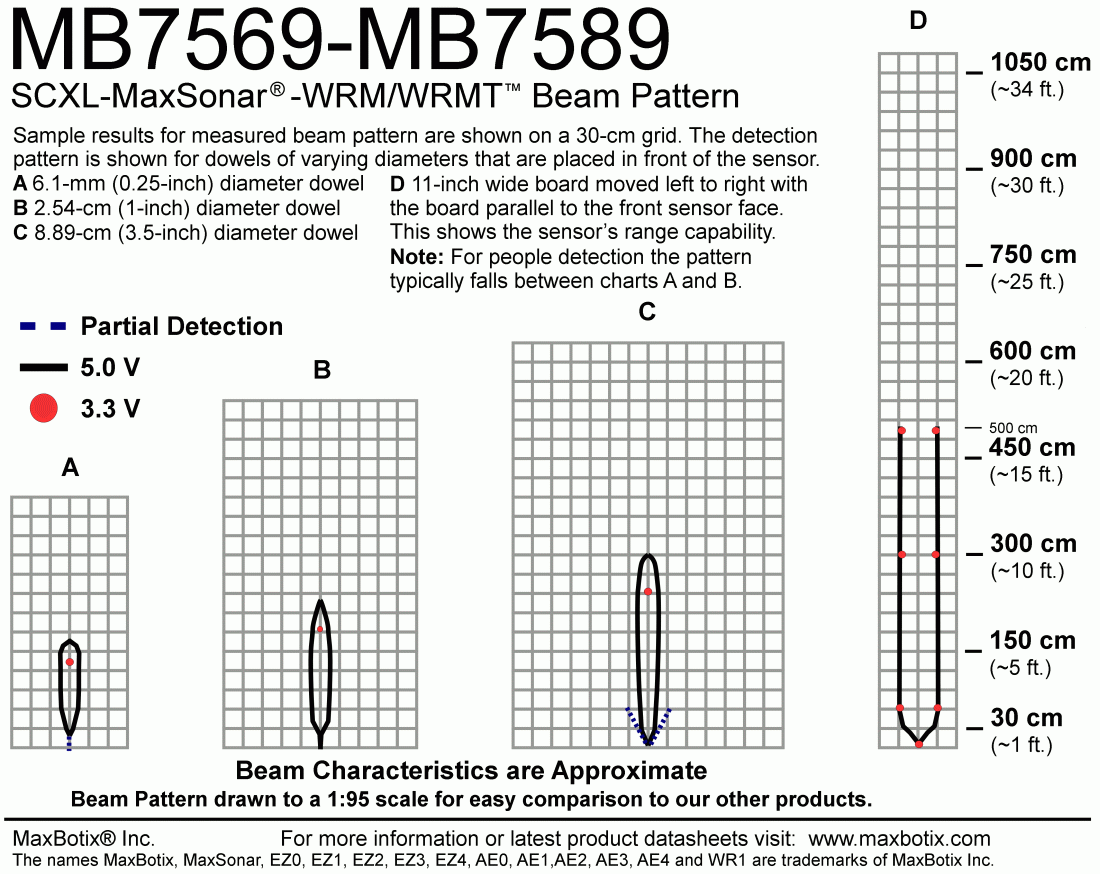

  • Long, narrow detection zone
  • Our most advanced, weather-resistant, ultrasonic sensor
  • Additional stability filter rejects anomalous readings
  • Detects the largest signal return in the field of view
  • Uses the complete dynamic range of the sensor, if no large targets are present the sensor will select the next smallest target in view
  • Can be used to range large objects behind small obstructions
  • Best sensor for bin and tank level measurements where icing has occured
  • Maximum range of 500 cm (196 inches)
  • Volume Pricing (100 or more units): Contact MaxBotix Inc.

Product Documentation

Documents and Downloads


MB7589 Datasheet SCXL-MaxSonar-WRMT-datasheet
Sensor Selection GuideSensor Selection Guide
SCWR Chaining NotesSCXL-MaxSonar-WR Chaining
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip


Product 3D Models


These 3D model files will download with a different product name.

Full Horn Housing

Key ShotIGES FileACIS 7.0 FileSolid Works Part
STL FileSTEP FileParaSolid Part

Compact Horn Housing

Keyshot FileIGES FileACIS 7.0 FileSolid Works Part
STL FileStep FileParaSolid File

1" BSPP Housing

Keyshot FileIGES FileACIS 7.0 FileSolid Works Part
STL FileStep FileParaSolid File

1" NPS Housing

Keyshot FileIGES FileACIS 7.0 FileSolid Works Part
STL FileStep FileParaSolid File

30mm 1.5 Housing

Keyshot FileIGES FileACIS 7.0 FileSolid Works Part
STL FileStep FileParaSolid File
