High Performance Ultrasonic Precision Rangefinder
3/4" NPS WR Housing
Lead time may vary for larger orders
|For pricing of orders with more than 100 units, please complete our Quote Request Form.|
The weather resistant SCXL-MaxSonar-WRS self‑cleaning sensor is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.
The MB7534 SCXL-MaxSonar-WRS3 self‑cleaning sensor is a cost-effective, rugged ultrasonic snow-depth sensor that is designed for reliable snow-depth measurement. The MB7534 features a self-cleaning transducer to remove condensation and ice buildup when operating in cold conditions. The MB7534 has an internal filter that will reset to targets that are considered valid outside of a 2% distance to target window. This makes the sensor ideal for targets that occasionally move rapidly. The sensor accurately applies temperature compensation to every reading, using either the integrated temperature sensor or the optional external temperature sensor (HR-MaxTemp).
High output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The SCXL‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.
MB7544 is the TTL version of this sensor.
Models with additional chemical resistance are available
The F-Option design modification provides our weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option when ordering.
- Resolution of 1-mm
- Self‑cleaning transducer
- 0.58Hz read rate
- Internal temperature compensation
- 42kHz ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
- Virtually no sensor dead zone, objects closer than 50cm range as 50cm
- Operates from 2.7-5.5V
- Low 68mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product
- Operational temperature -40°C to +65°C (-40°F to +149°F)
- Real-time automatic calibration (voltage, humidity, and ambient noise)
- Firmware filtering for excellent noise tolerance and clutter rejection
- Weather resistant (IP67), optional chemical resistant F-Option
- Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)

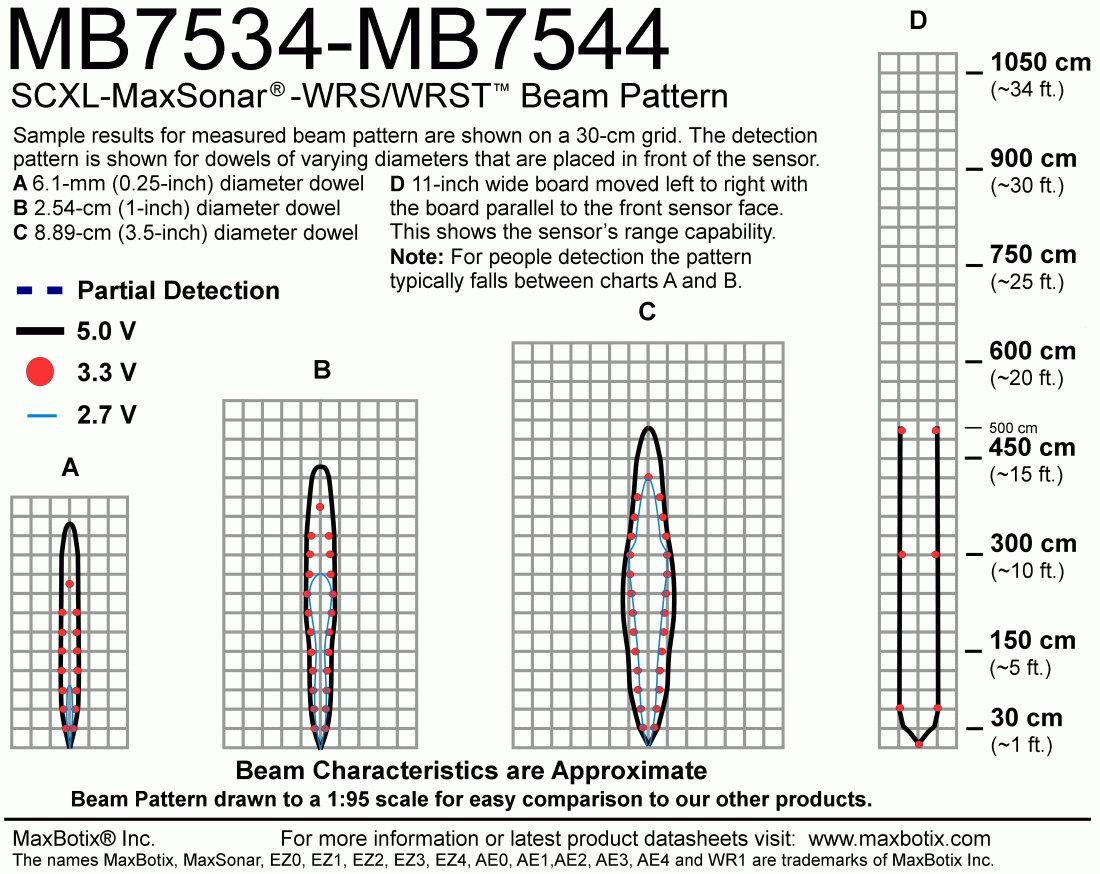

- Long, narrow detection zone
- RS232 Serial Output
- Recommended for snow level measurement
- Recommended for weather station monitoring
- Maximum range of 5 meters (196 inches)
Volume Pricing (100 or more units): Contact MaxBotix Inc.
Documents and Downloads
|Sensor Selection Guide||Sensor Selection Guide|
|Snow Sensor Mounting||Recommended mounting guide|
|SCWR Chaining Notes||SCXL-MaxSonar-WR Chaining|
|RoHS Conformity||RoHS Declaration of Conformity|
|CE Declaration of Conformity||CE Declaration of Conformity|
|Reliability Demonstration||MTBF Report|
|High Resolution Pictures||High Resolution Pictures.zip|
Product 3D Models
These 3D model files will download with a different product name.
|Key Shot||IGES File||ACIS 7.0 File||Solid Works Part|
|STL File||STEP File||ParaSolid Part|
