MB7076 XL-MaxSonar-WRLA1

MB7076 XL-MaxSonar-WRLA1

SKU:MB7076-100

Ranges from 20cm to 1068cm with a 10Hz read rate. Analog envelope, analog voltage, and RS232 serial. Reports range to closest target.

Regular price $114.95 USD
Regular price Sale price $114.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Description

Features of the weather-resistant MB7076, XL-MaxSonar-WRLA1, include centimeter resolution, short to long-distance detection, range information from 20cm to 1064cm for the nearest detectable target, a 10Hz read rate, and various output options: analog envelope, analog voltage, and RS232 serial.

The MB7076 from the XL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing that meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

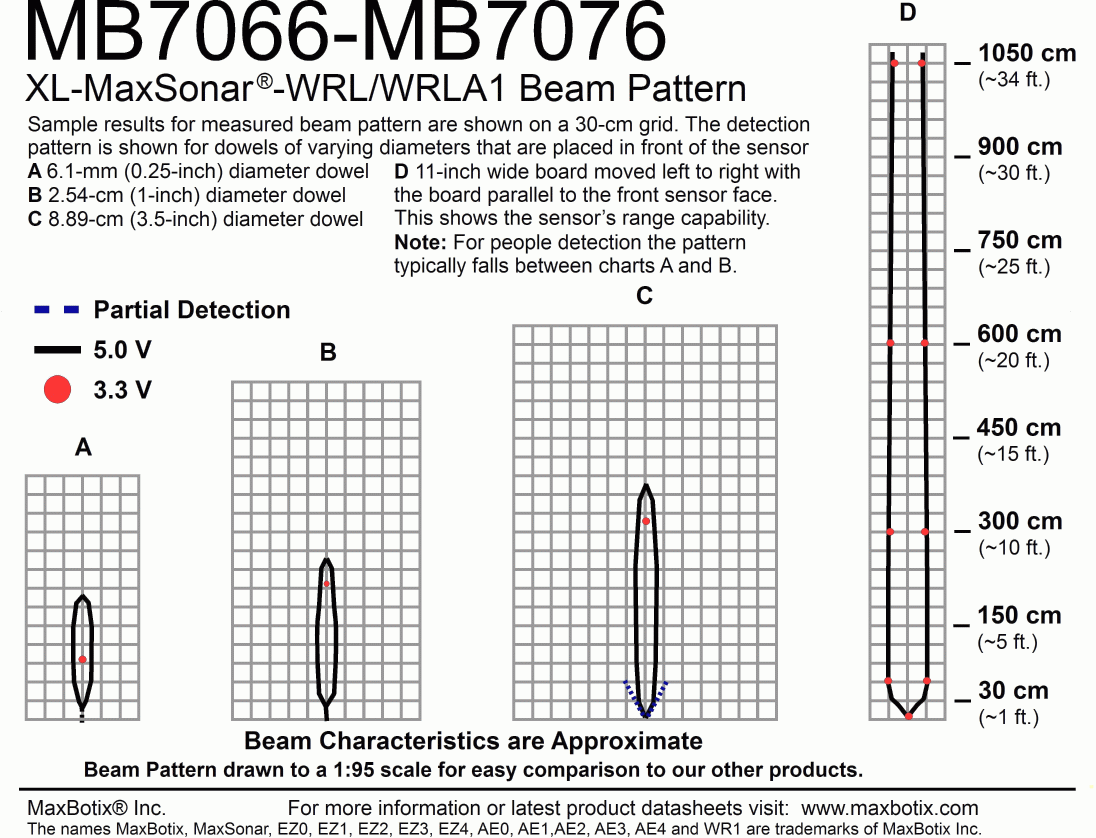

The XL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

In addition, the MB7076 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.


Variations on this sensor model

MB7066 is the pulse-width version of this sensor.
MB7070 is the 5-meter version of this sensor.


Models with additional chemical resistance are available

The F-Option (IP68) design modification provides our weather-resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.

Specs

  • Resolution of 1 cm
  • 10Hz read rate
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS Compliant
  • Read from all 3 select sensor outputs: Analog Voltage, Serial, Analog Envelope
  • Operates from 3.0-5.5V
  • Low 3.4mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Firmware filtering for better noise tolerance and clutter rejection
  • 20+ Years Mean Time Between Failure
  • Weather Resistant (IP67), optional Chemical Resistant F-Option
  • Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4″ National Pipe Thread Straight)
  • Our longest-range outdoor, weather-resistant, ultrasonic sensor
  • Analog envelope output for easy troubleshooting and signal processing
  • Maximum range of 1068 cm (450 inches)
  • Long range, narrow detection zone

Documentation and CAD files

Documents

Chemical Compatibility

Review our Chemical Compatibility notes to learn about our compatibility in different environments. Please contact our Technical Support team with any questions about chemicals not listed.

Email: techsupport@maxbotix.com

Product 3D Models

100 Housing (Full Horn Housing)
Solid Works Part
STL File
STEP File

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB7076-100
MB7076-10A
MB7076-110
MB7076-11A
MB7076-120
MB7076-12A
MB7076-130
MB7076-13A

Product Change Notifications Associated with MB7076 XL-MaxSonar-WRLA1

PCN1102

MaxBotix is changing its manufacturing process for the F-Option.  The method of creating an F-Option part was changed to improve the manufacturability and decrease lead times for F-Option parts

PCN1200

The color of any exposed epoxy will be black or gray, rather than only gray.
