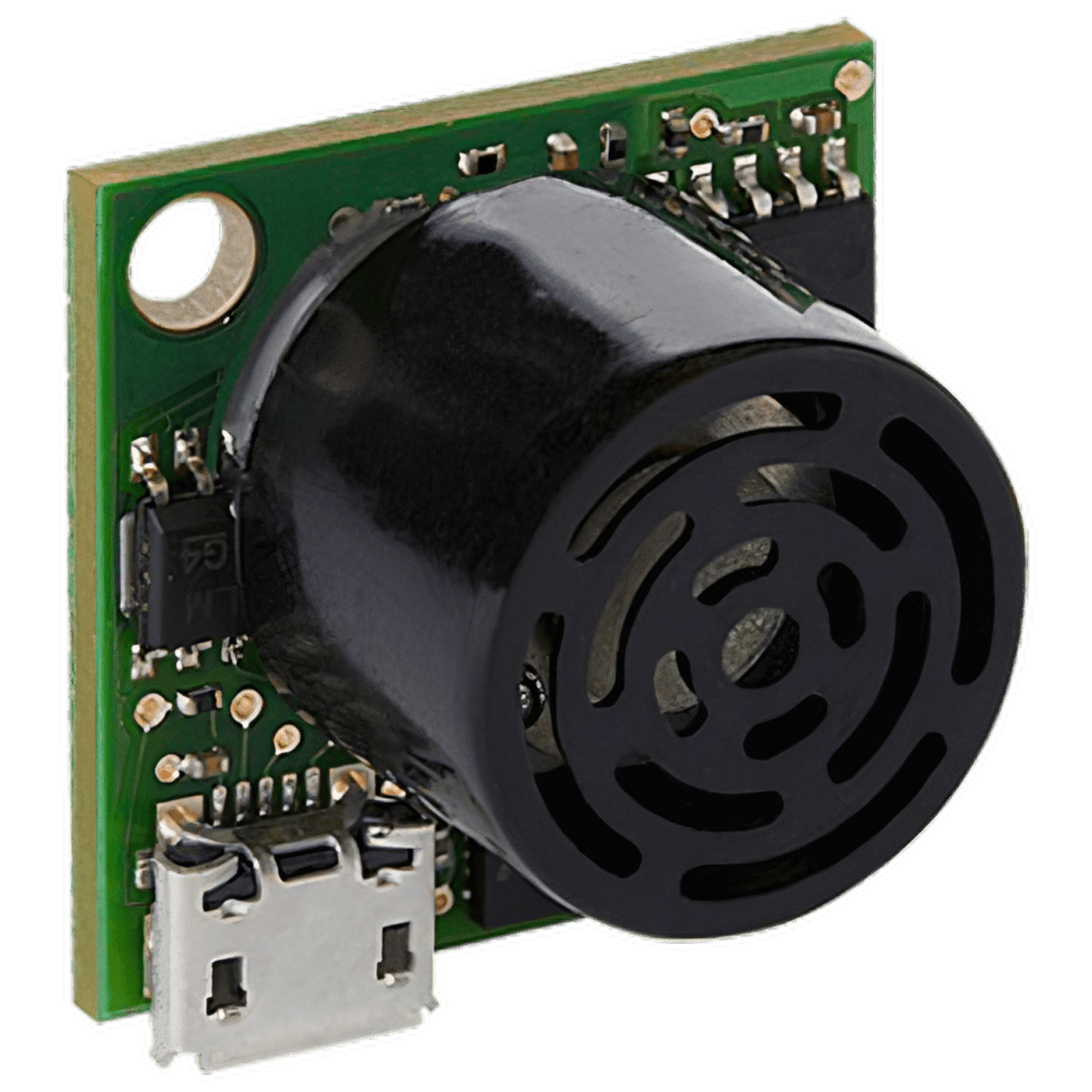

HRUSB-MaxSonar-EZ Ultrasonic Range Finder

MB1443
HRUSB-MaxSonar®-EZ4™

USB High Performance Ultrasonic Precision Rangefinders

RoHs Compliant CE Declaration of Conformity


Buy Now Options


HRUSB-MaxSonar-EZ Ultrasonic Proximity Sensor
Lead time may vary for larger orders
MB1443
Each, $49.95
MB1443
5-Pack, $239.75
MB1443
10-Pack, $449.50
MB1443
50-Pack, $1,721.83
MB1443
100-Pack, $3,322.00
For pricing of orders with more than 100 units, please complete our Quote Request Form.

For larger quantities, please contact MaxBotix Inc. for pricing.


Product Description

The HRUSB-MaxSonar-EZ4 is the narrowest beam width sensor that is also the least sensitive to side objects offered in the HRUSB‑MaxSonar‑EZ sensor line. The HRUSB-MaxSonar-EZ4 is an excellent choice when only larger objects need to be detected.



Product Specifications


  • USB interface
  • Resolution of 1 mm
  • Multi-sensor operation
  • ~250mS between range readings
  • Maximum Range of 5000 mm (196 inches)
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Virtually no sensor dead zone, objects closer than 30 cm range as 30 cm
  • Small, light weight module
  • Designed for easy integration into your project or product

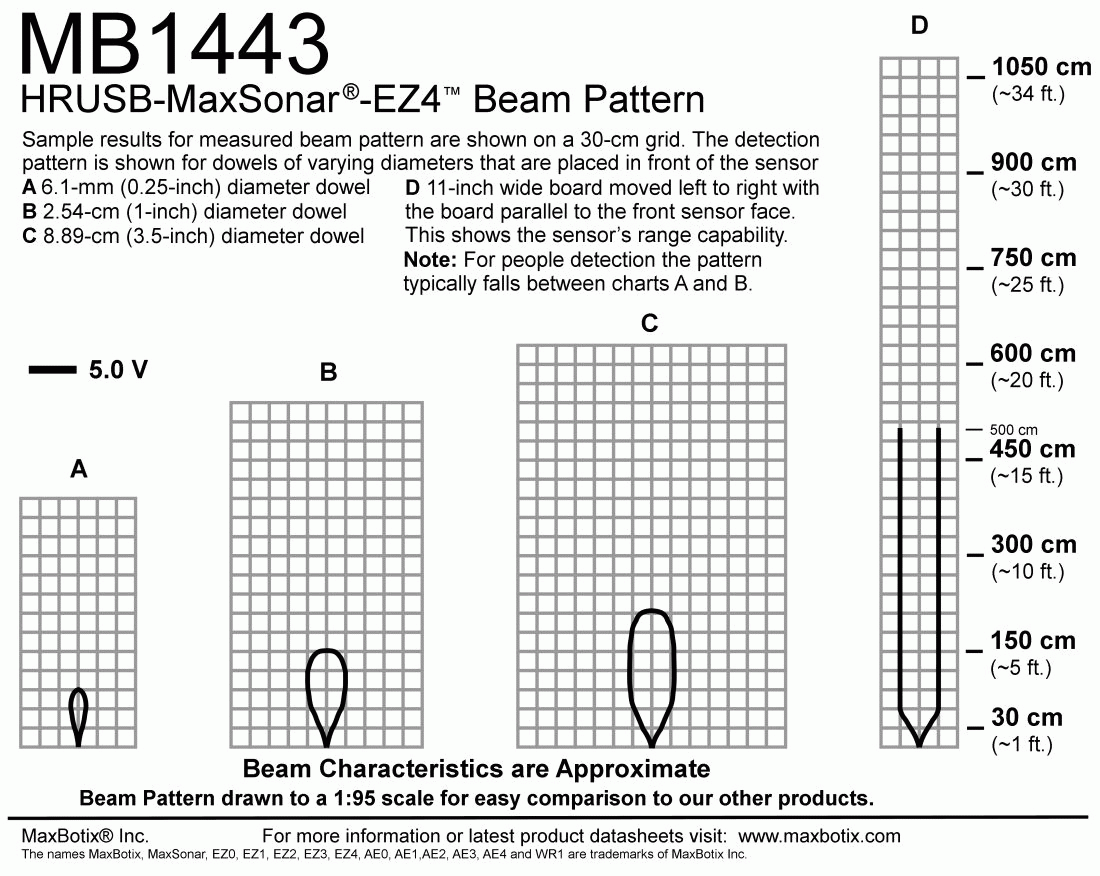

  • Narrowest beam of the HRUSB-MaxSonar-EZ sensors
  • Best for large object detection applications
  • Quote Request Form: For orders greater than 100 sensors


Product Documentation

Documents and Downloads


MB1443 Datasheet HRUSB-MaxSonar-EZ4-datasheet
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip

Product 3D Models

Key ShotIGES FileACIS 7.0
File
Solid Works Part
STL FileSTEP FileParaSolid
Part
