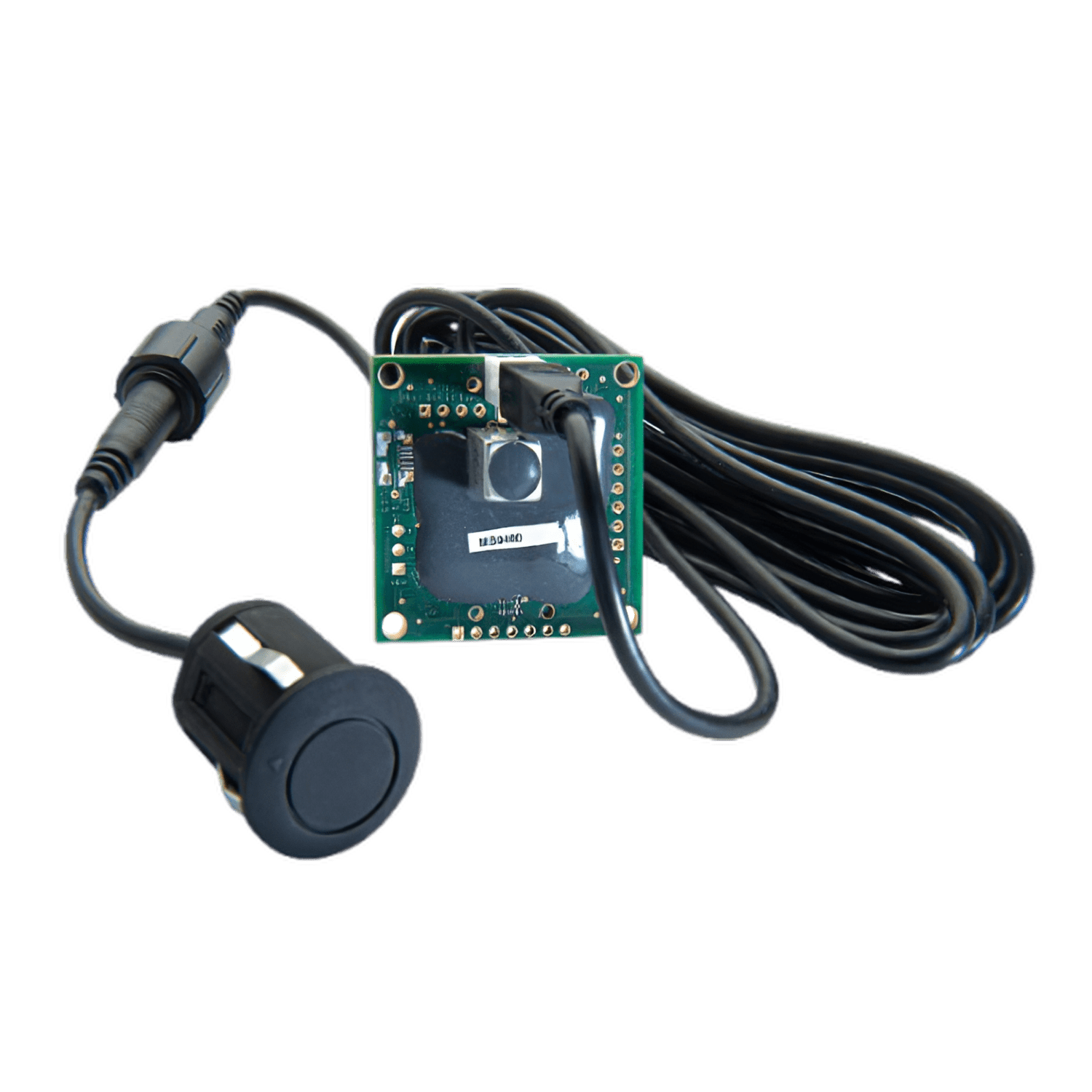

MB8460 CarSonar-WR

MB8460 CarSonar-WR

SKU:MB8460-000

The MB8460 Car Detection Sensor is a low‑cost vehicle detection sensor that uses ultrasonic technology for non-contact sensing.

Regular price $89.95 USD
Regular price Sale price $89.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Description

Features of the weather-resistant MB8460, CarSonar-WR, include centimeter resolution, short to long-distance detection, range information from 500mm to 5000mm for the nearest detectable target, a ~4Hz read rate, with an RS232 style serial output.

The MB8460 is a low‑cost vehicle detection sensor that uses ultrasonic technology for non-contact sensing. The MB8460 is designed to be an easy-to-use sensor for applications where vehicle detection is desired. This sensor is great for applications such as vehicle kiosks, ATMs, and bank drive-throughs.

The MB8460 is factory calibrated to match sensor beam patterns and provide reliable long-range detection zones.

In addition, the MB8460 offers virtually noise-free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

Specs

  • RS232 Serial Output
  • ~4-second target acquire time*
  • ~5-second target release time*
  • Multi-sensor operation
  • ~250mS between range readings
  • Maximum range of 500 cm (196 inches)
  • Preset proximity detection zone of 150cm
  • Vehicle detection sensor
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Virtually no sensor dead zone, objects closer than 50 cm typically range as 50 cm
  • Small, lightweight module
  • Designed for easy integration into your project or product

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB8460-000

Product Change Notifications Associated with MB8460 CarSonar-WR

PCN1200

The color of any exposed epoxy will be black or gray, rather than only gray.
