MB1634 HRLV-ShortRange-EZ3T

MB1634 HRLV-ShortRange-EZ3T

SKU:MB1634-000

Detect large objects from 1mm to 5m. Senses range to objects from 2cm to 5m.

Regular price $34.95 USD
Regular price Sale price $34.95 USD
Sale Sold out
Shipping calculated at checkout.

Discounted pricing is shown in the cart.

Quantity 5-9 10-24 25-49 50-99 100+
Discount 5% 10% 15% 20% 25%
View full details

Collapsible content

Description

Features of the MB1634, HRLV-ShortRange-EZ3T, include millimeter resolution, a great blend of sensitivity as well as side object rejection, range information from 2cm to 5m, a 10Hz read rate, and various output options: pulse-width, analog voltage, and TTL.

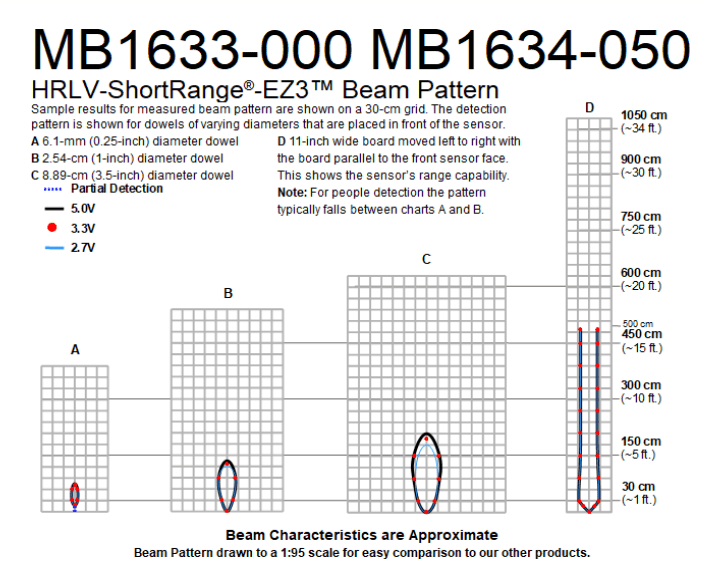

The HRLV-ShortRange-EZ3T is a sensor with a narrow beam and good side object rejection. The HRLV-ShortRangeEZ3T has slightly wider beam width than the HRLV-ShortRange-EZ4T which makes it a good choice for when the HRLV-ShortRange-EZ4T does not have enough sensitivity for the application.

Specs

  • Resolution of 1‑mm
  • 10Hz reading rate
  • Internal temperature compensation
  • Cost-effective solution where precision range findings are needed
  • Sensor component allows users to lower the cost of their systems without sacrificing performance
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, TTL, and Pulse Width
  • The sensor minimum reported distance is 2 cm (0.8 inches).
  • The HRLV-ShortRange-EZ will detect targets within 1 mm of the front sensor face.
  • Large targets closer than 2 cm will typically range as 20 mm.
  • Accuracy is factory-matched providing a typical accuracy of 1% or better
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • Operates from 2.5V-5.5V
  • Low 3.1mA average current requirement
  • Small, lightweight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -0C to +65C (+32F to +149F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Option external temperature compensation - HR‑MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Great starting point for users unsure of which sensor to use

Part Numbers

All MaxBotix part numbers are a combination of a six-character base followed by a dash and a three-digit product code. The following table displays all of the active and valid part numbers for this product.

Active Part Numbers
MB1634-000

Product Change Notifications Associated with MB1634 HRLV-ShortRange-EZ3T

PCN1168

The paint dots are removed from the sensors and replaced with part number labels.

PCN1200

The color of any exposed epoxy will be black or gray, rather than only gray.
