HRLV-MaxSonar-EZ Products

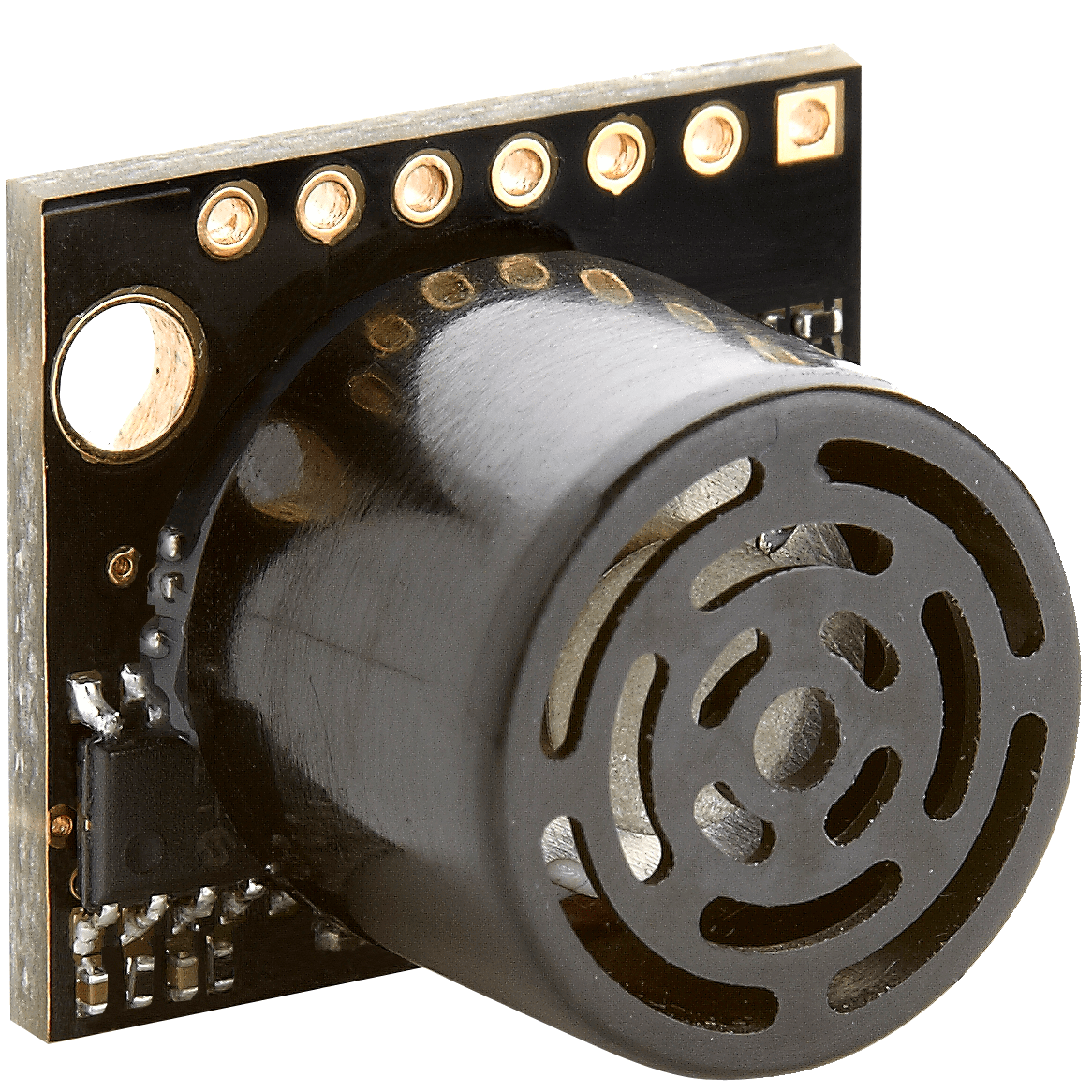

MB1033 HRLV-MaxSonar-EZ3

High Performance Ultrasonic Rangefinder

$34.95
Quantity:
Quantity:
Grand total:
Quantities > 50 may delay ship date up to 1 week.
Pricing rules for MB1033 HRLV-MaxSonar-EZ3
QuantityCost Per Product
5 - 9$31.95
10 - 49$28.95
50 - 99$23.27
100$21.88

Product Description

The HRLV‑MaxSonar‑EZ3 is a narrow beam sensor with good side object rejection. The HRLV‑MaxSonar‑EZ3 has slightly wider beam width than the MB1043 HRLV‑MaxSonar‑EZ4 which makes it a good choice for when the HRLV‑MaxSonar‑EZ4 does not have enough sensitivity for the application.

Product Specifiations

  • Resolution of 1‑mm
  • 10Hz reading rate
  • Internal temperature compensation
  • Cost-effective solution where precision range-findings are needed
  • Sensor component allows users to lower the cost of their systems without sacrificing performance
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm will typically range as 30 cm
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • Operates from 2.5V-5.5V
  • Low 3.1mA average current requirement
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -0C to +65C (+32F to +149F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Option external temperature compensation HR‑MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection

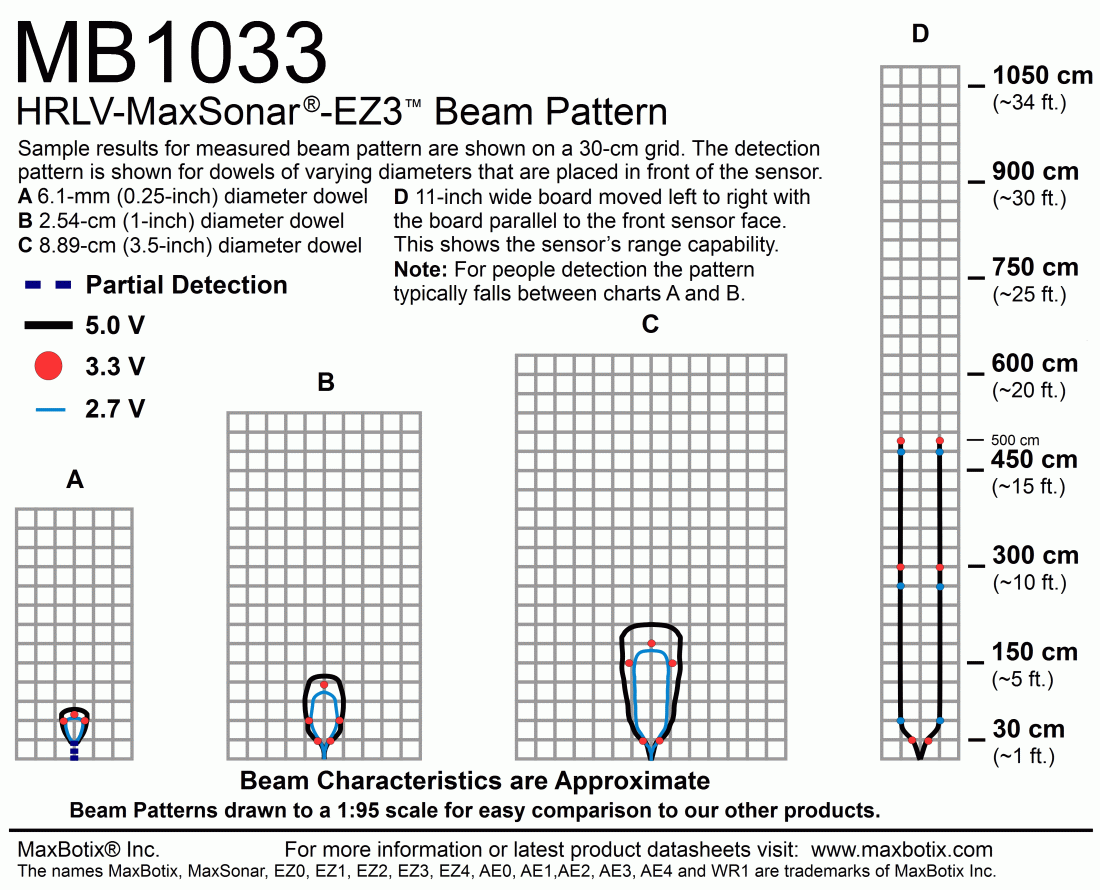

  • Narrow beam and good side object rejection
  • Best for large object detection applications
  • Quote Request Form: For orders greater than 100 sensors

Product Documentation

Documents and Downloads

MB1033 DatasheetHRLV-MaxSonar-EZ3-datasheet
HRLV ChainingChaining Application Guide
Quick Start GuideHRLV-MaxSonar-EZ Quick Start Guide
Sensor Selection GuideSensor Selection Guide
RoHS ConformityRoHS Declaration of Conformity
CE Declaration of ConformityCE Declaration of Conformity
Reliability DemonstrationMTBF Report
High Resolution PicturesHigh Resolution Pictures.zip
Product 3D Models
Key ShotIGES FileACIS 7.0
File
Solid Works Part
STL FileSTEP FileParaSolid
Part


Part Numbers

All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.


MB1033000
Base
Housing Style
0Not Applicable
13/4″ NPS WR
23/4″ NPS WRC
3Ultra Compact
4Ultra Compact Flush Mount
51″ NPS
61″ BSPP
730MM 1.5
8Extended Horn
Options Selected
0No Options (Bagged)
1F-Option
2P-Option
3F-Option and P-Option
4No Options (Trayed)
5TTL (Bagged)
6TTL (Trayed)
Wire Attach
0No Wire Attach
1Wire Attached



The following table displays all of the active and valid part numbers for this product.


Active Part Numbers
MB1033-000MB1033-040MB1033-050MB1033-060
